+ B Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for motors such as the slide motor and reclining motor.

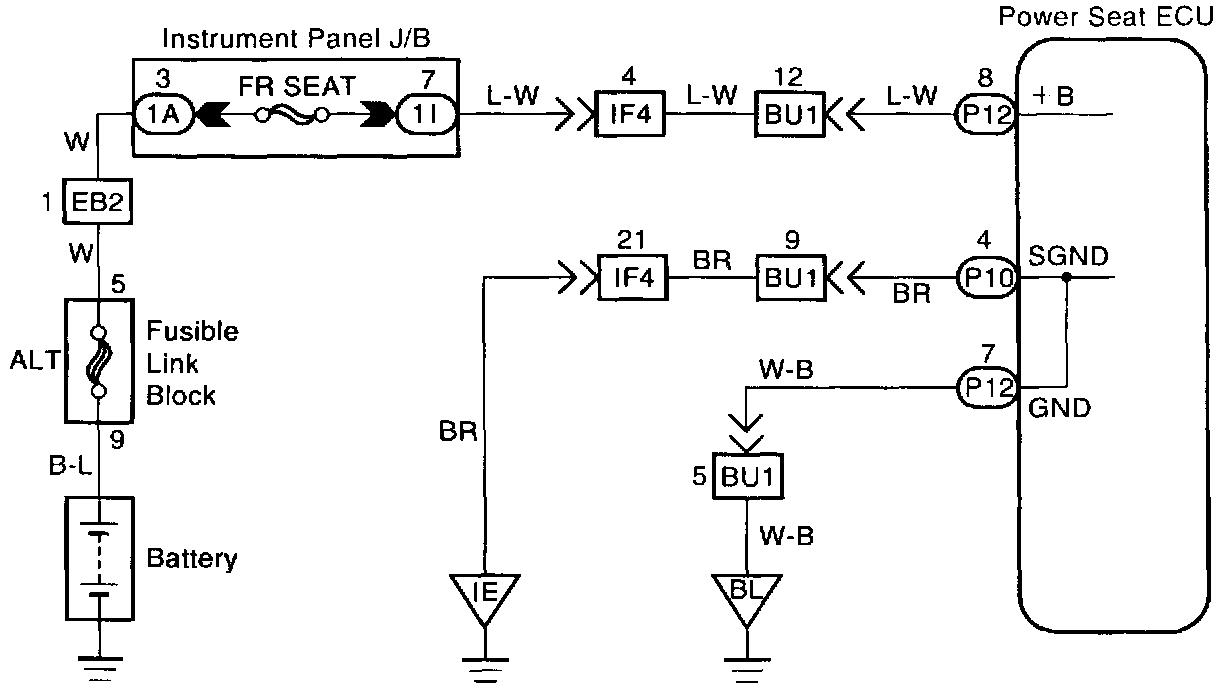

WIRING DIAGRAM

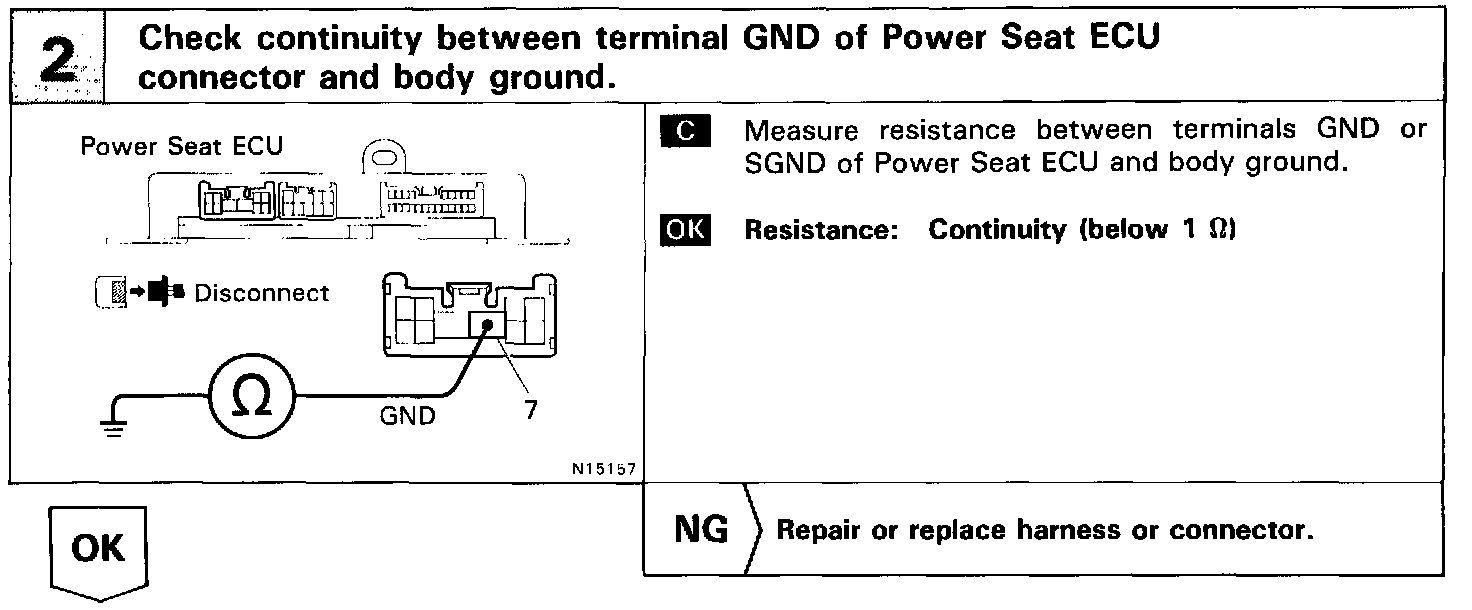

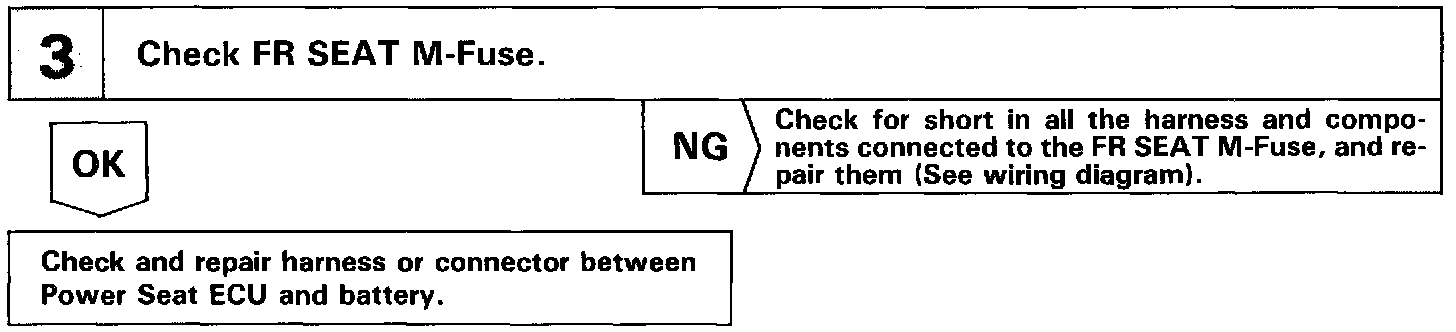

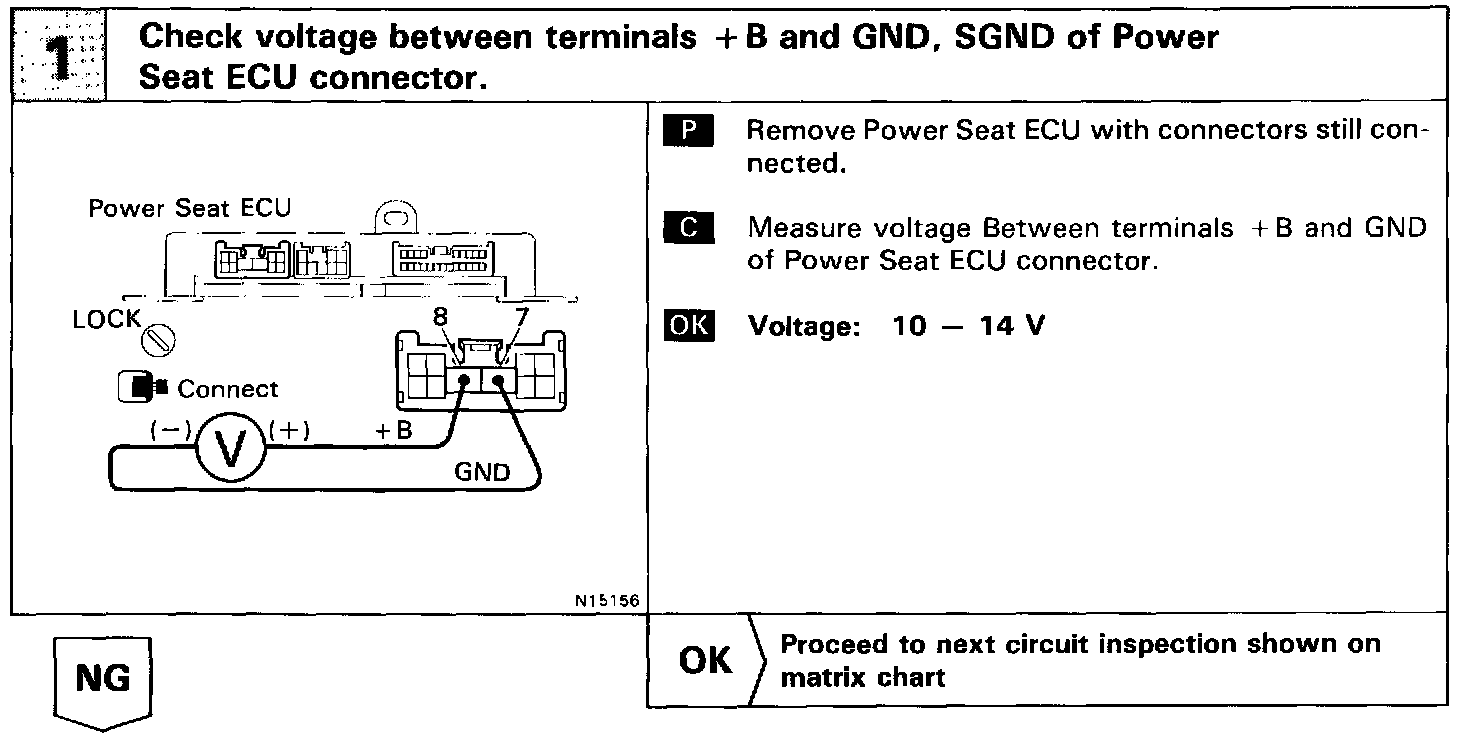

INSPECTION PROCEDURE
