Seat Temperature Relay: Testing and Inspection

ENGINE MAIN RELAY INSPECTION

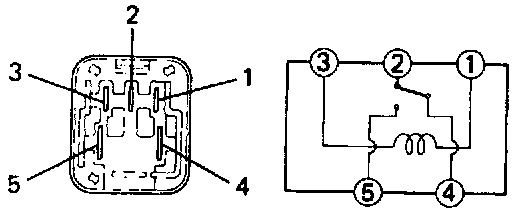

1. INSPECT RELAY CONTINUITY

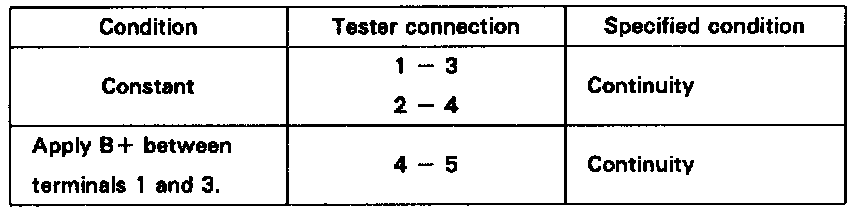

If continuity is not as specified. replace the relay.








2. INSPECT RELAY CIRCUIT

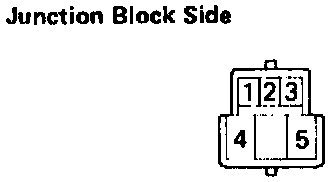

Remove the relay and inspect the connector on the junction block side, as shown.

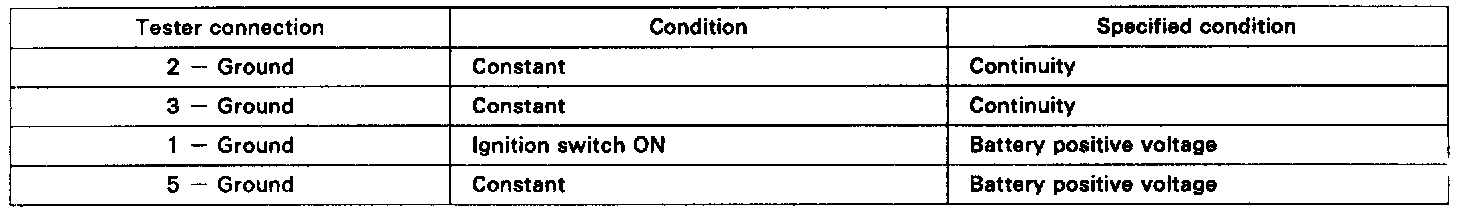

If circuit is not as specified. inspect the circuits connected to other parts.
