Component Tests and General Diagnostics

RADIO RECEIVER ASSEMBLY INSPECTION








INSPECT RECEIVER ASSEMBLY CIRCUIT

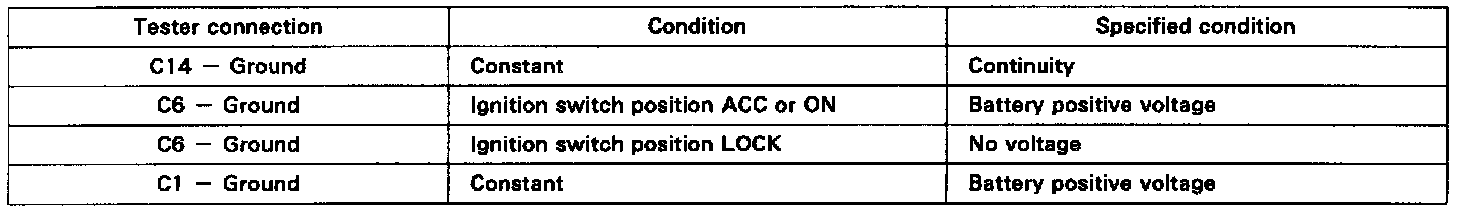

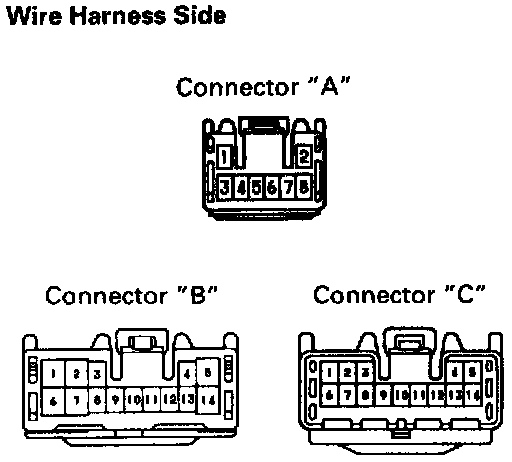

Disconnect the connectors from the radio receiver assembly. And inspect the connector on the wire harness side, as shown.

If circuit is not as specified, inspect the circuits connected to other parts.

HINT: Check the wire harness between radio receiver assembly and the CD auto changer, between radio receiver assembly and power amplifier.
