Component Tests and General Diagnostics

CD AUTO CHANGER INSPECTION








INSPECT CHANGER CIRCUIT

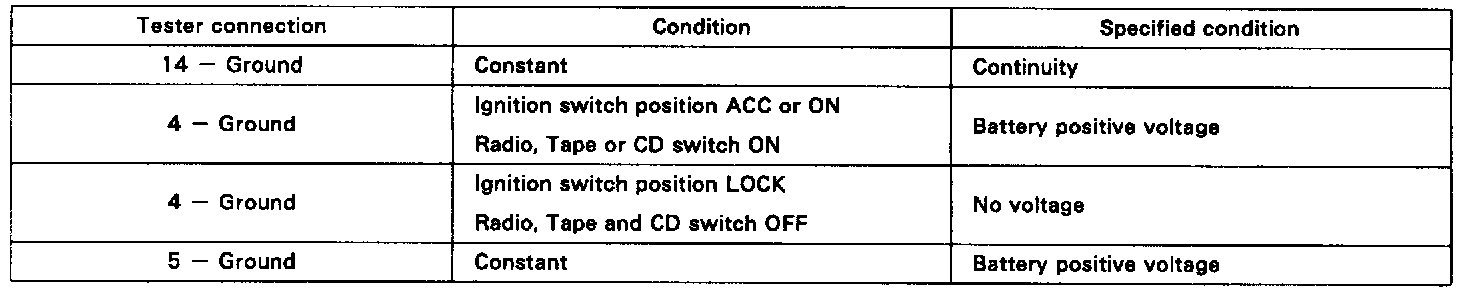

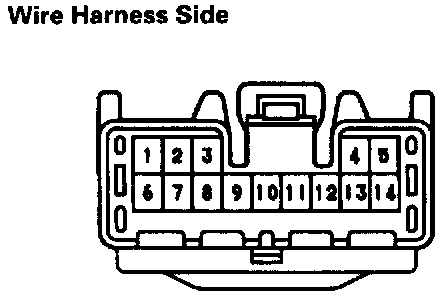

Disconnect the connectors from the CD auto changer and inspect the connector on the wire harness side, as shown.

If circuit is not as specified, inspect the circuits connected to other parts.

HINT:
^ Check the wire harness between the radio receiver assembly and the CD auto changer.
^ Since the signals to and from the CDL+, CDL-, CDR+, CDR- terminals are serial signals. they cannot ordinarily be measured with a tester.
