Component Tests and General Diagnostics

POWER AMPLIFIER INSPECTION








INSPECT AMPLIFIER CIRCUIT

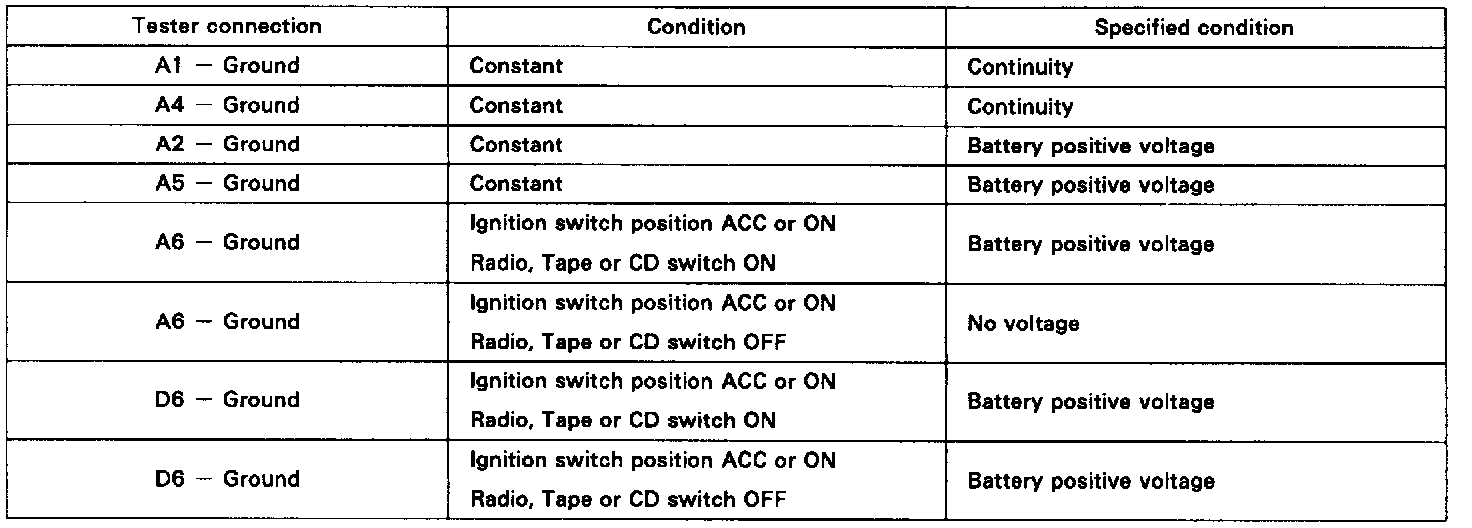

Disconnect the connector from the power amplifier and inspect the connector on the wire harness side, as shown.

If circuit is not as specified, inspect the circuits connected to other parts.
