Antitheft and Alarm Systems: Service and Repair

REGISTRATION PROCEDURE

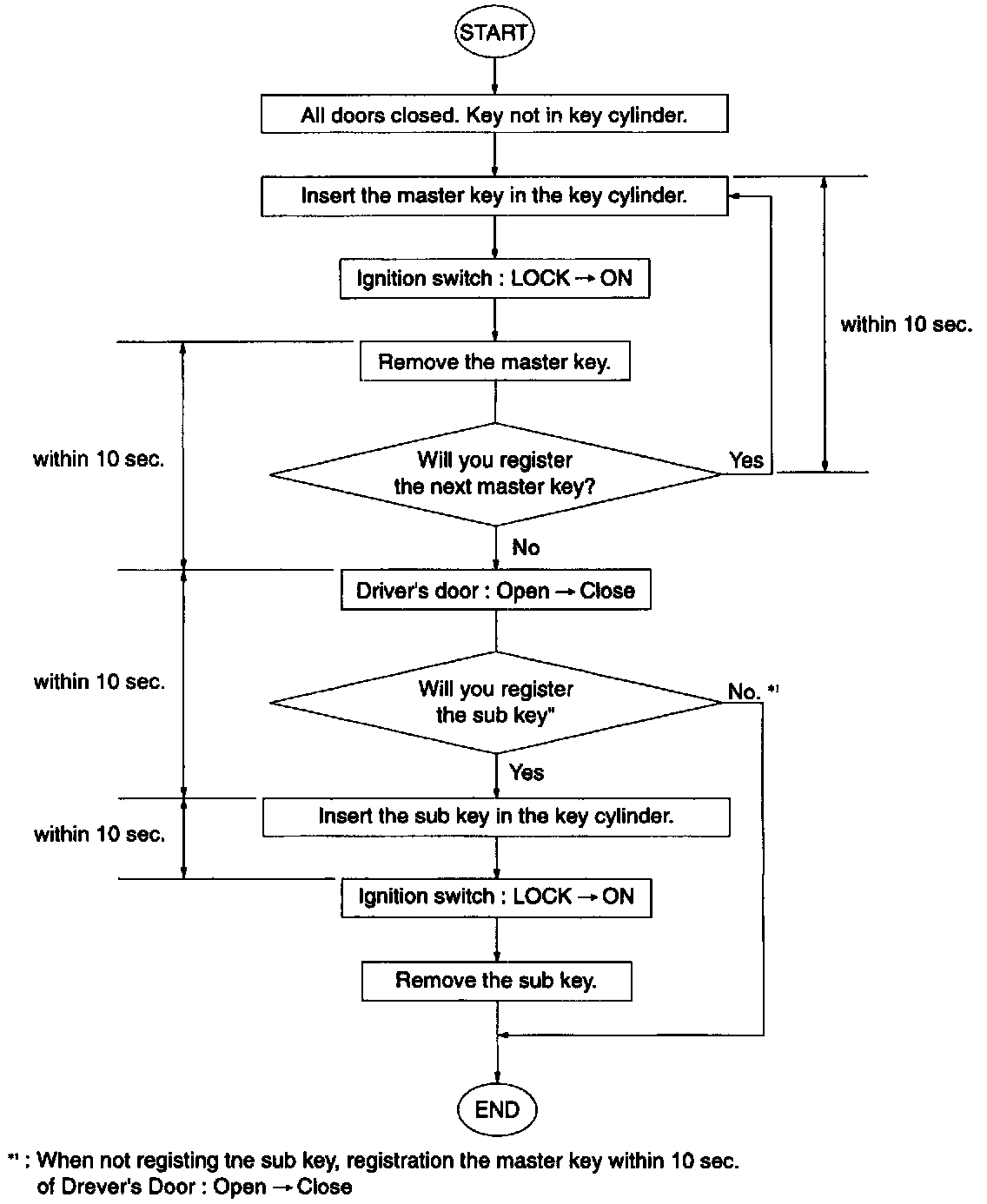

1. REGISTRATION OF A NEW TRANSPONDER KEY CODE
This must be done when you have install a new transponder key computer.

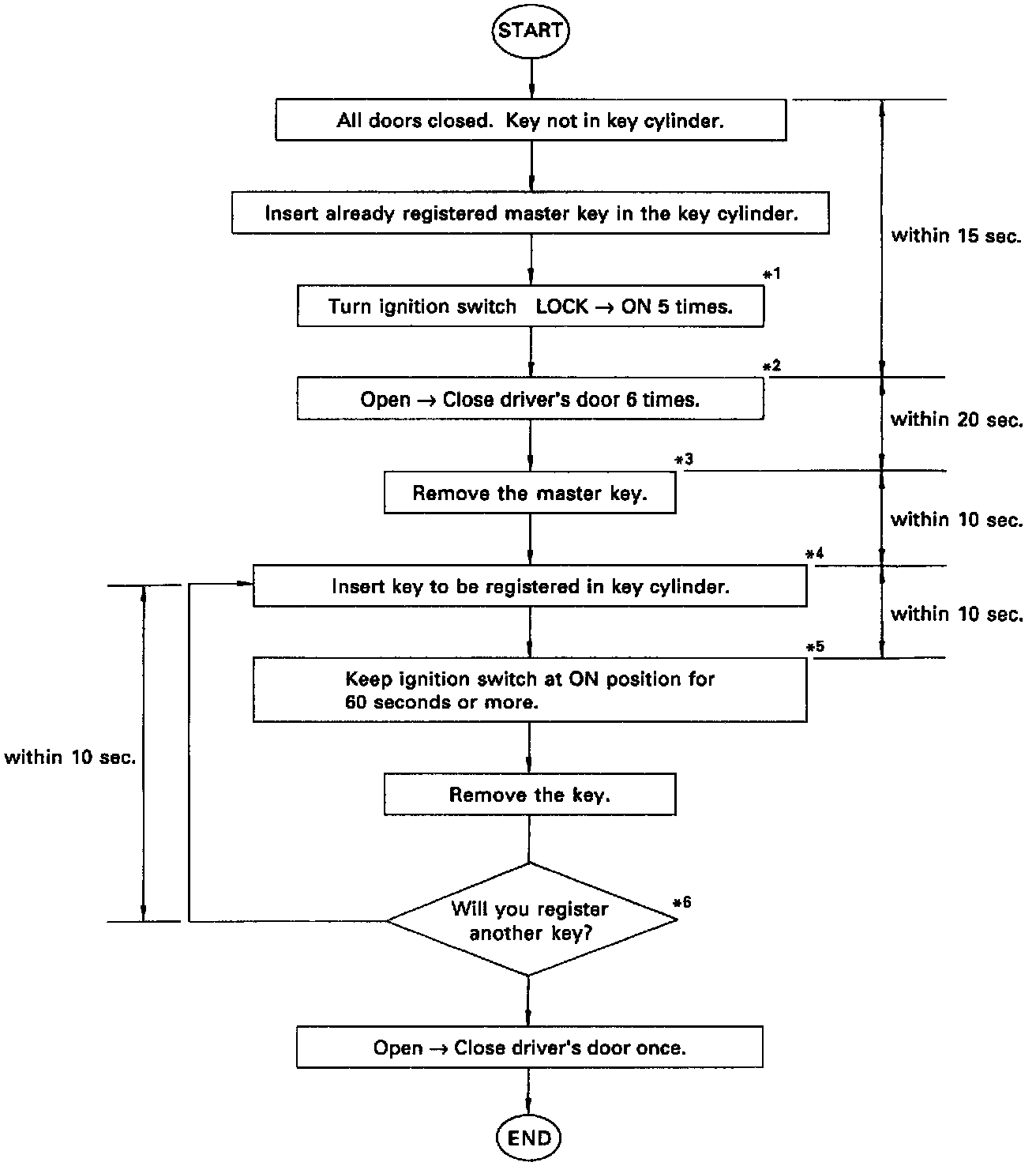

2. REGISTRATION OF ADDITIONAL MASTER KEY
Do this operation to register an additional master key.
*1: Turn the ignition switch LOCK ON 5 times within 15 sec. of inserting the master key in the key cylinder. The ignition switch must finally remain in position ON, or the registration will not be carried out. then go on to the next operation.
*2: Open and close the driver's door the first time within 15 sec. of inserting the master key in the key cylinder. Then open and close the driver's door another 5 times within 20 sec. of closing the driver's door the first time.
*3: Remove the master key from the ignition switch within 20 sec. of closing the driver's door the first time.
*4: Insert the key to be registered in the key cylinder within 10 sec. of removing the master key.
*5: Turn the ignition switch LOCK ON within 10 sec. of inserting the key.
*6: If you are to register another key, insert the next key within 10 sec. of removing the previous key.





3. ADDITIONAL REGISTRATION OF SUB KEY
Do this operation to register an additional sub key.

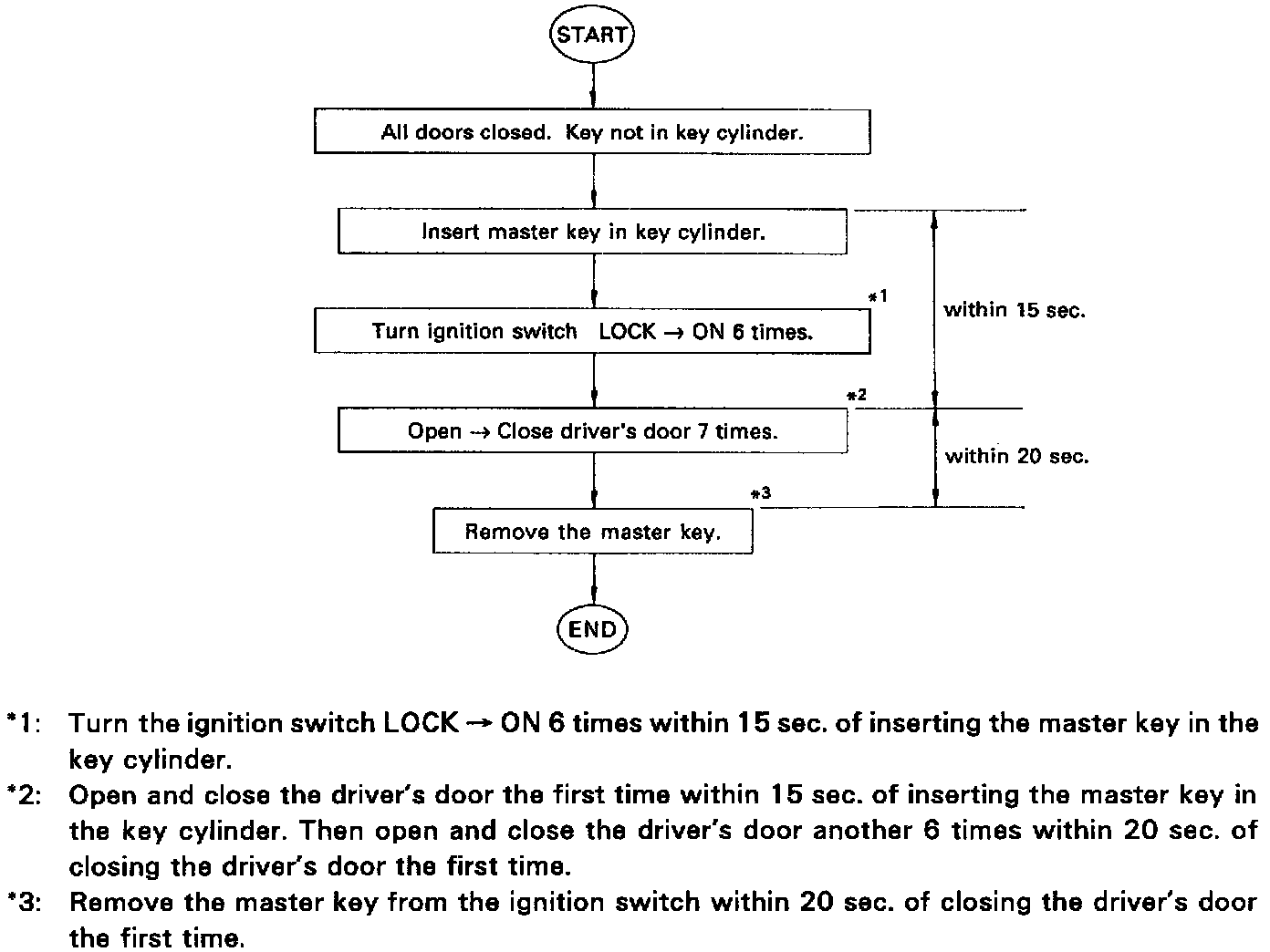

4. ERASURE OF TRANSPONDER KEY CODE
Do this operation to erase transponder key registration from the transponder key computer.

NOTE: The registered code used in the operation is not erased.
