Wireless Door Lock Control ECU

WIRELESS DOOR LOCK CONTROL ECU INSPECTION








INSPECT ECU CIRCUIT

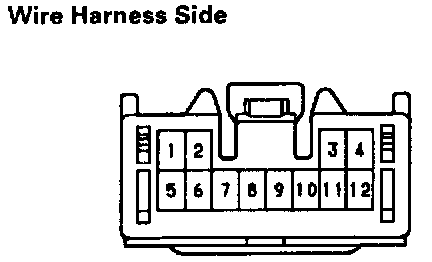

Disconnect the connector from the ECU and inspect the connector on the wire harness side, as shown. S: 22 Pin connector of body ECU
If the circuit is not as specified. inspect the circuits connected to other parts.
