Antenna Motor: Testing and Inspection

MOTOR ANTENNA INSPECTION








1. INSPECT ANTENNA CIRCUIT

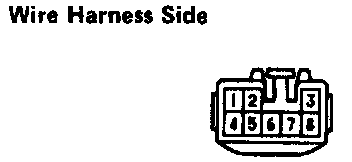

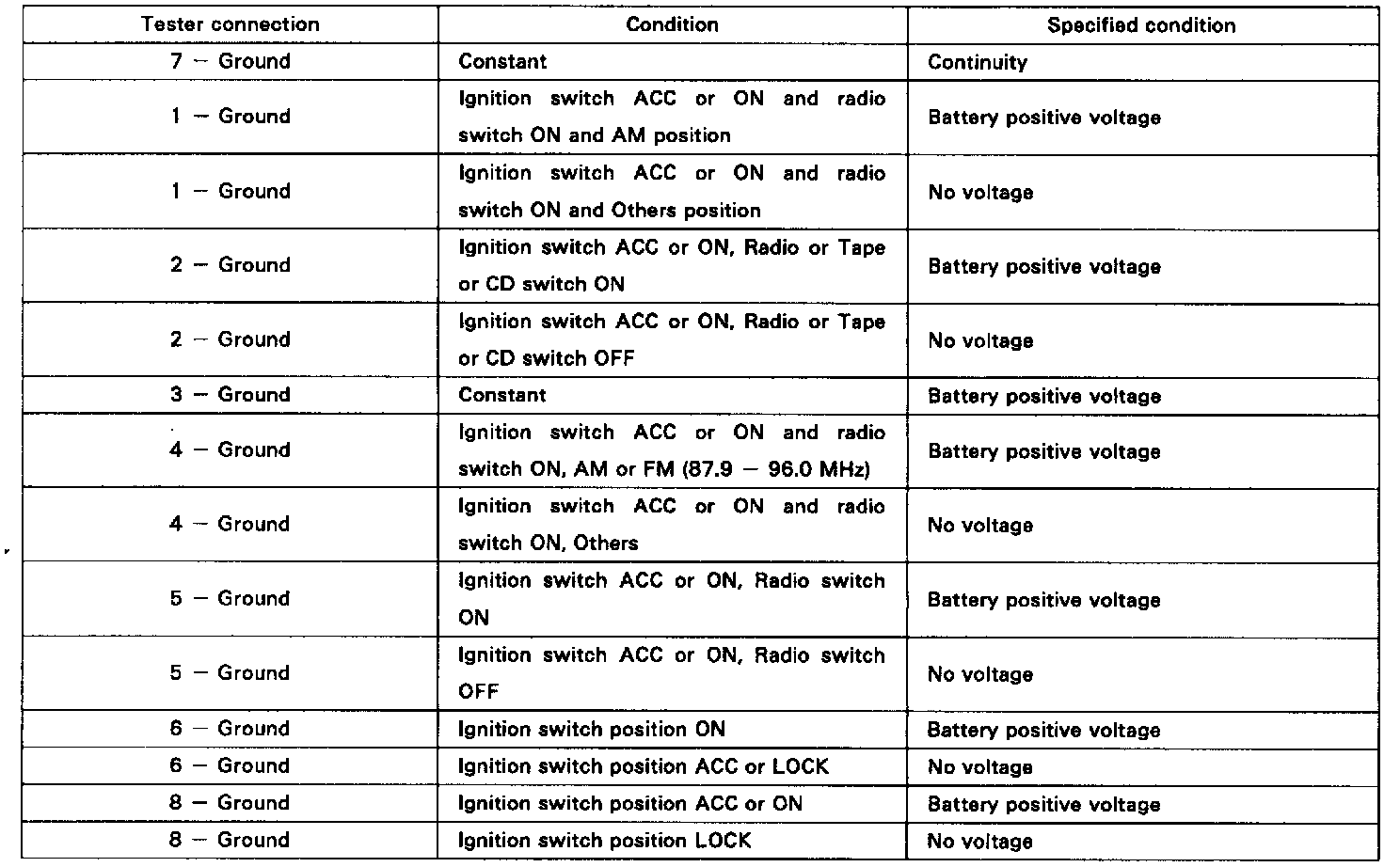

Disconnect the motor antenna connector from the body wire harness and inspect the connector on body wire harness side, as shown.

If circuit is not as specified, inspect the radio or wire harness.
If circuit is as specified, replace the motor antenna.

2. INSPECT ANTENNA MOTOR





a. Install the antenna nut.
b. Disconnect the connector from the motor antenna a control relay.

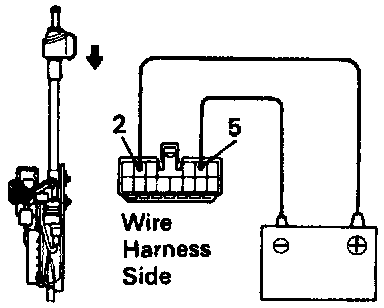

c. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 5 on the wire harness side connector.
d. Check that the motor turns (moves downward).

NOTE: These tests must be performed quickly (within 4 - 8 seconds) to prevent the coil from burning out.





e. Reverse the polarity and check that the motor turns the opposite way (moves downward).

NOTE: These tests must be performed quickly (within 4 - 8 seconds) to prevent the coil from burning out. HINT: When the motor is normal, lower the antenna to the lowermost position.

If operation is not as specified. replace the antenna motor assembly.
