FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
1997
>>
LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1780
>>
Transmission Control System
Transmission Control System

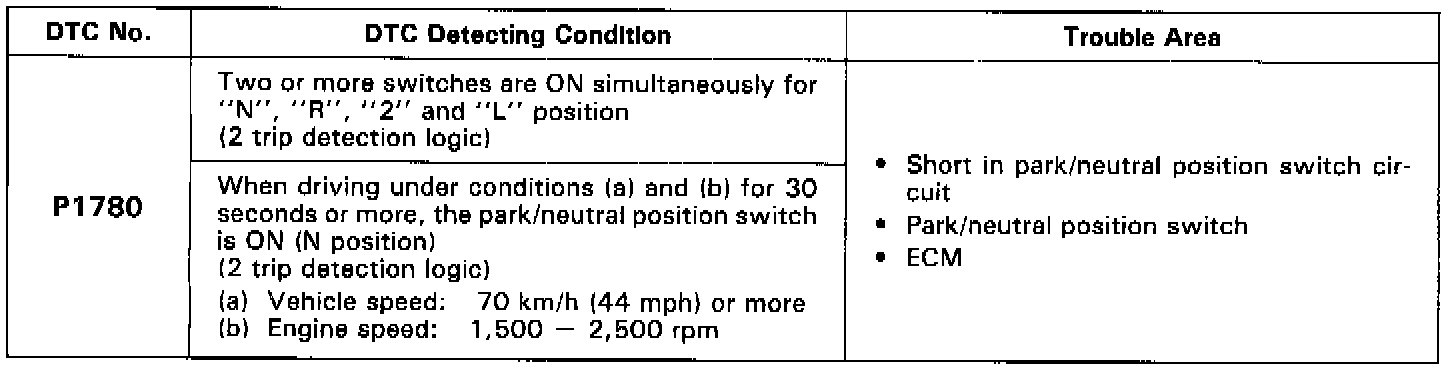

Detecting Condition and Trouble Area

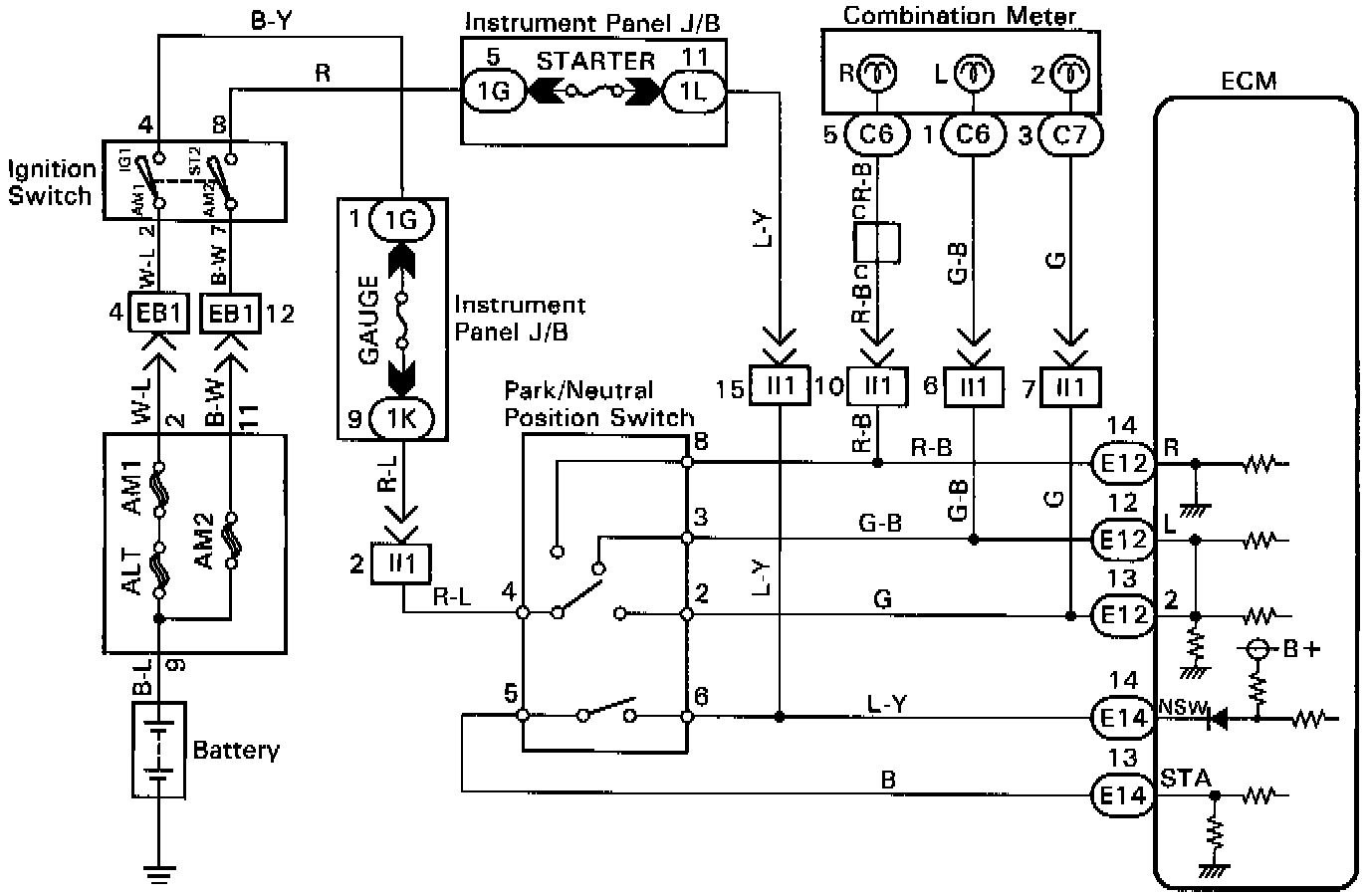

Wiring Diagram

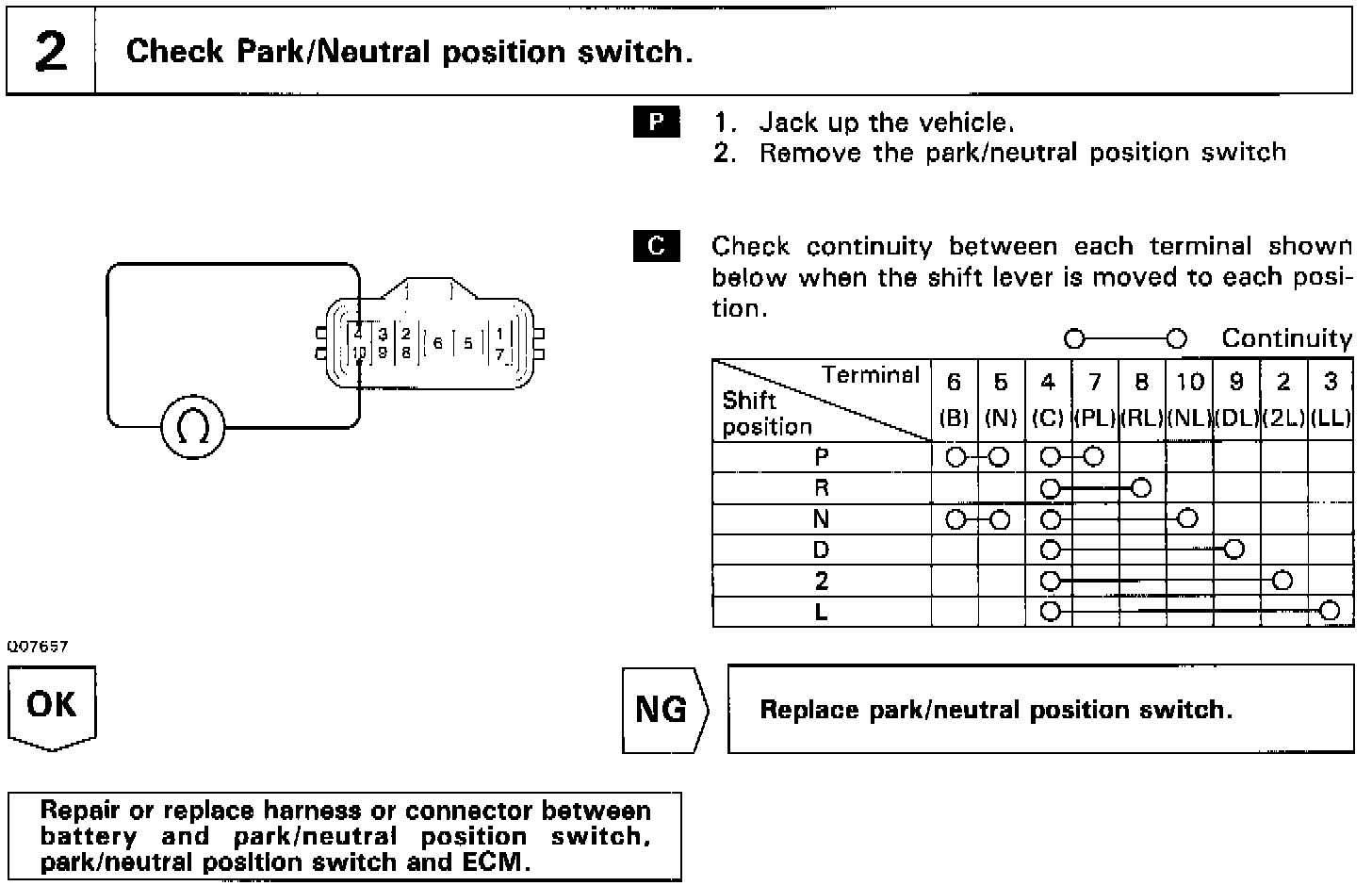

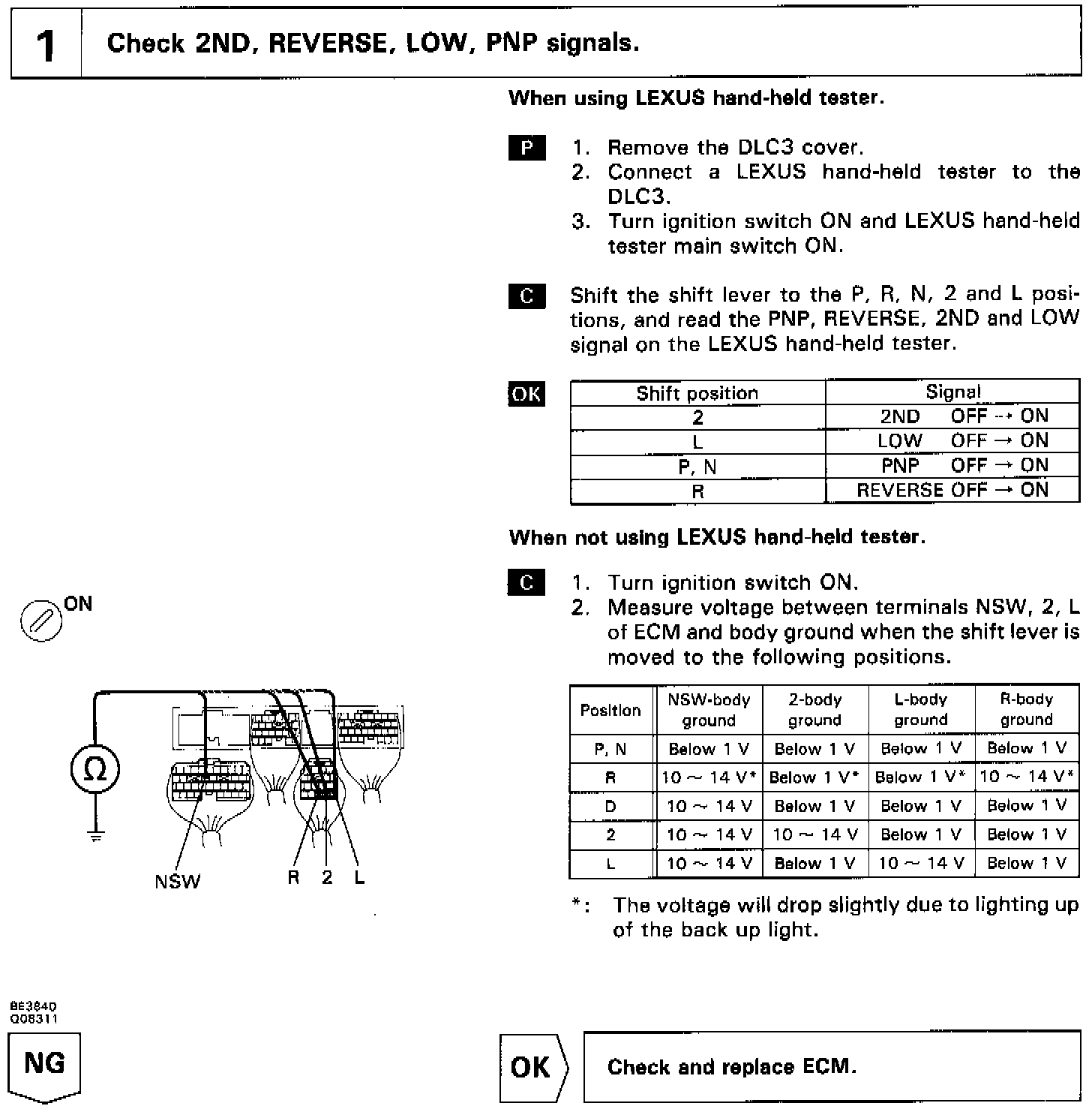

Inspection Procedure
