Engine Control System

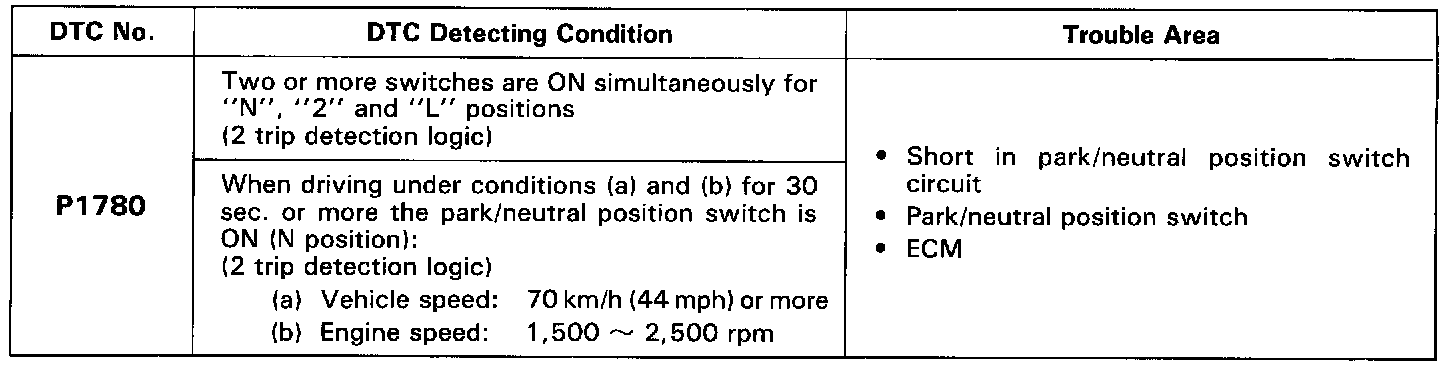

Detecting Condition and Trouble Area

HINT: After confirming DTC P1780 use LEXUS hand-held tester to confirm PNP switch signal from CURRENT DATA.





Wiring Diagram

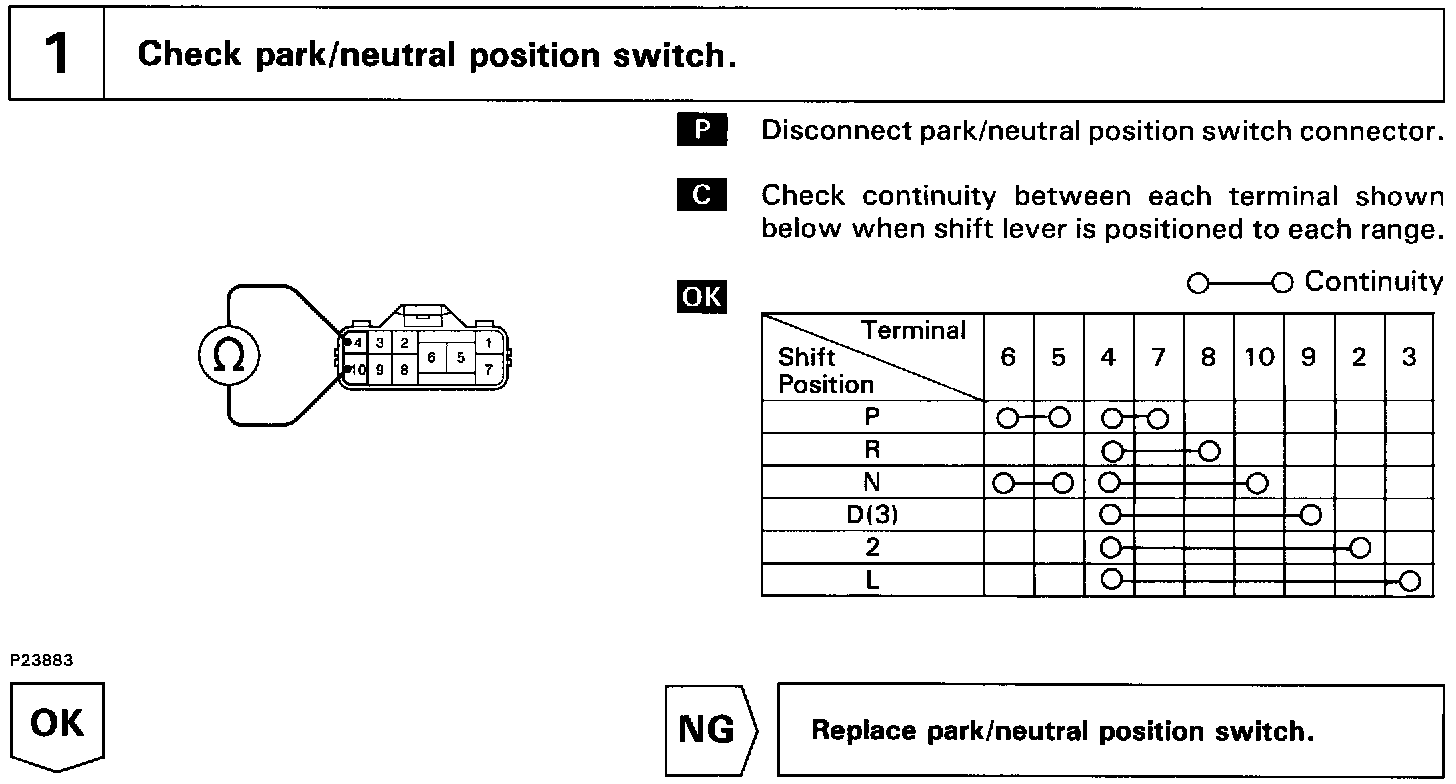

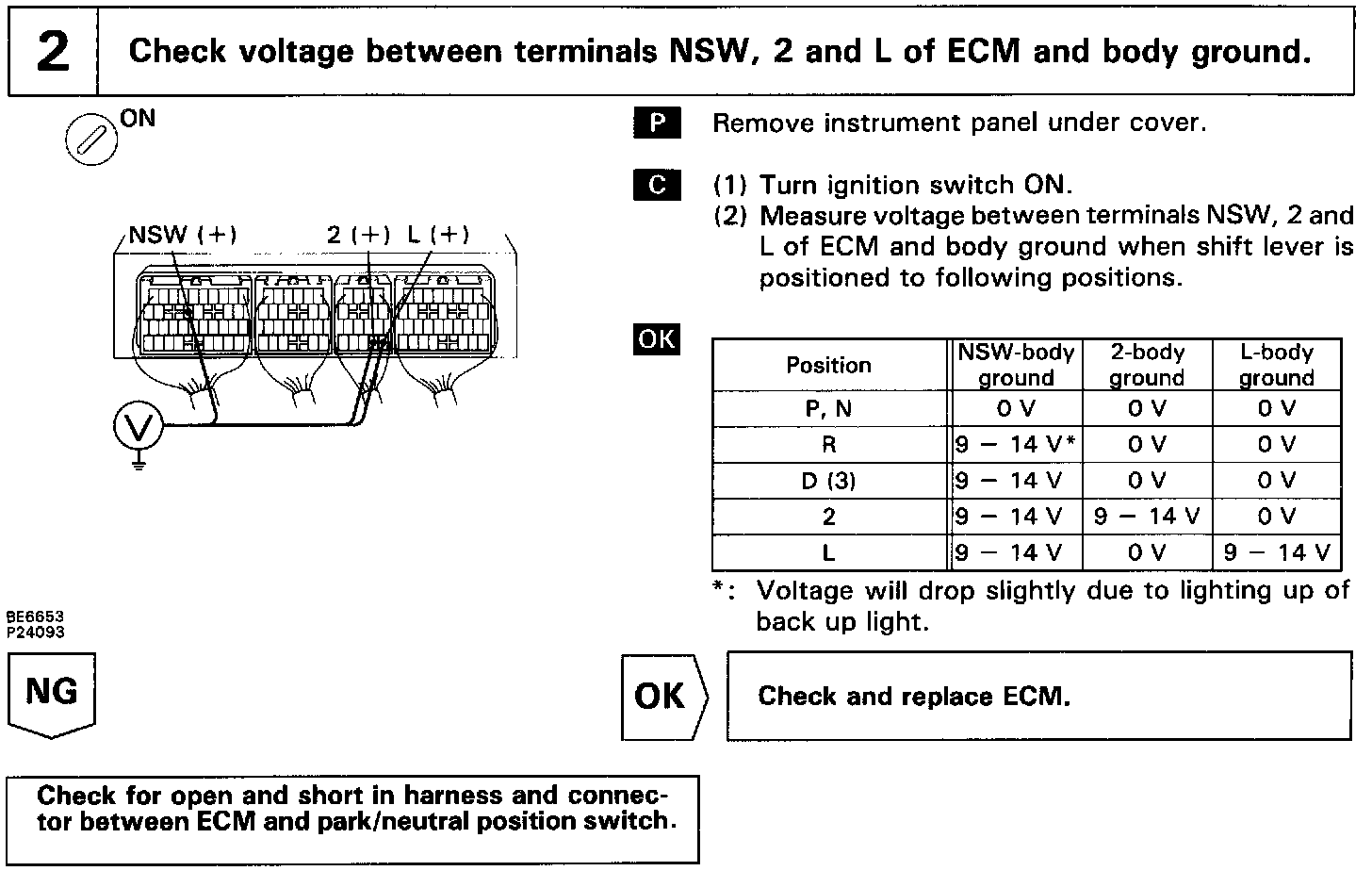

Inspection Procedure
