P1300

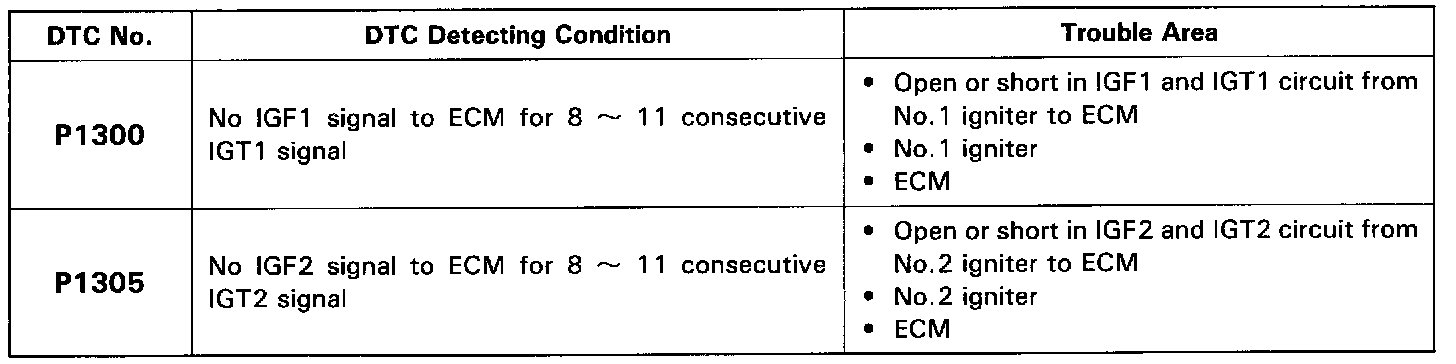

Detecting Condition and Trouble Area

HINT: No.1 igniter is for left bank and No.2 igniter is for right bank.





Wiring Diagram

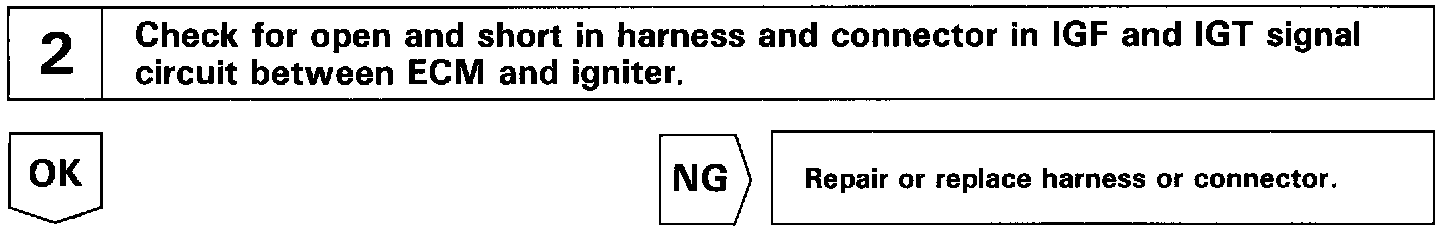

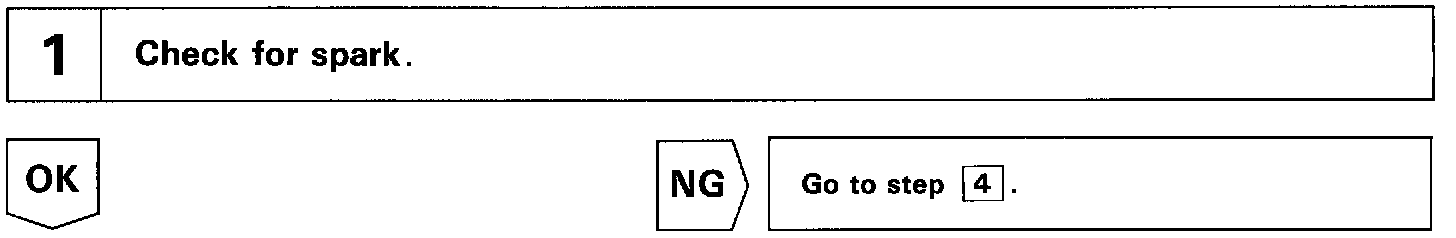

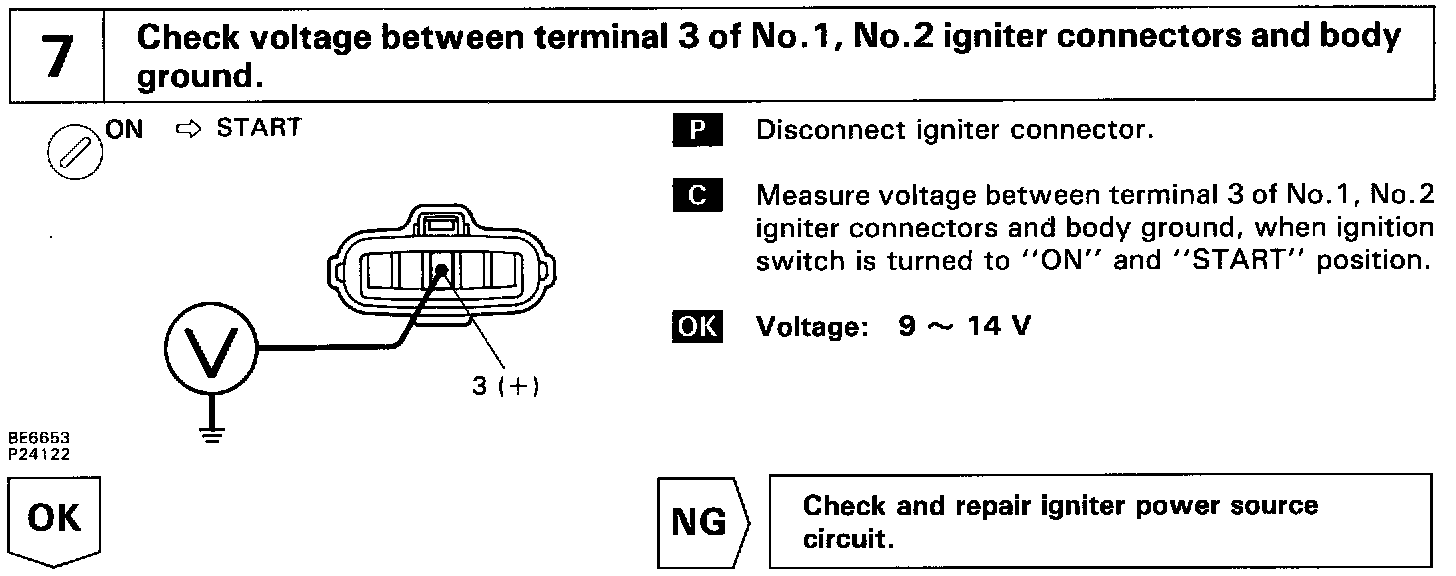

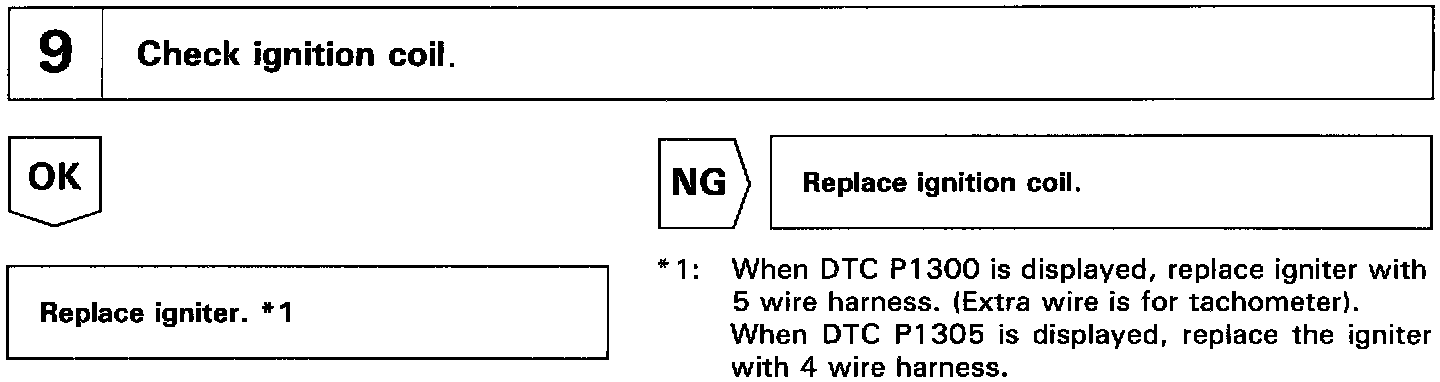

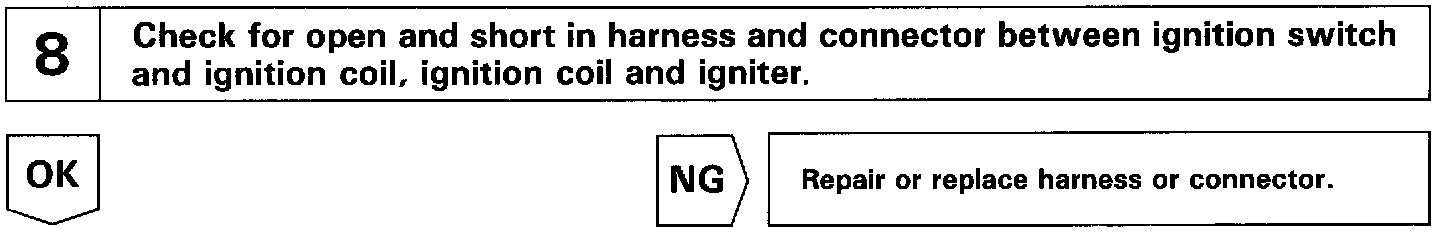

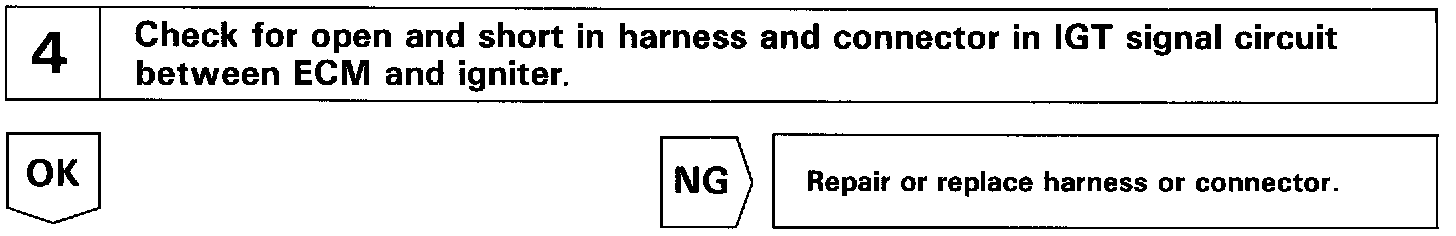

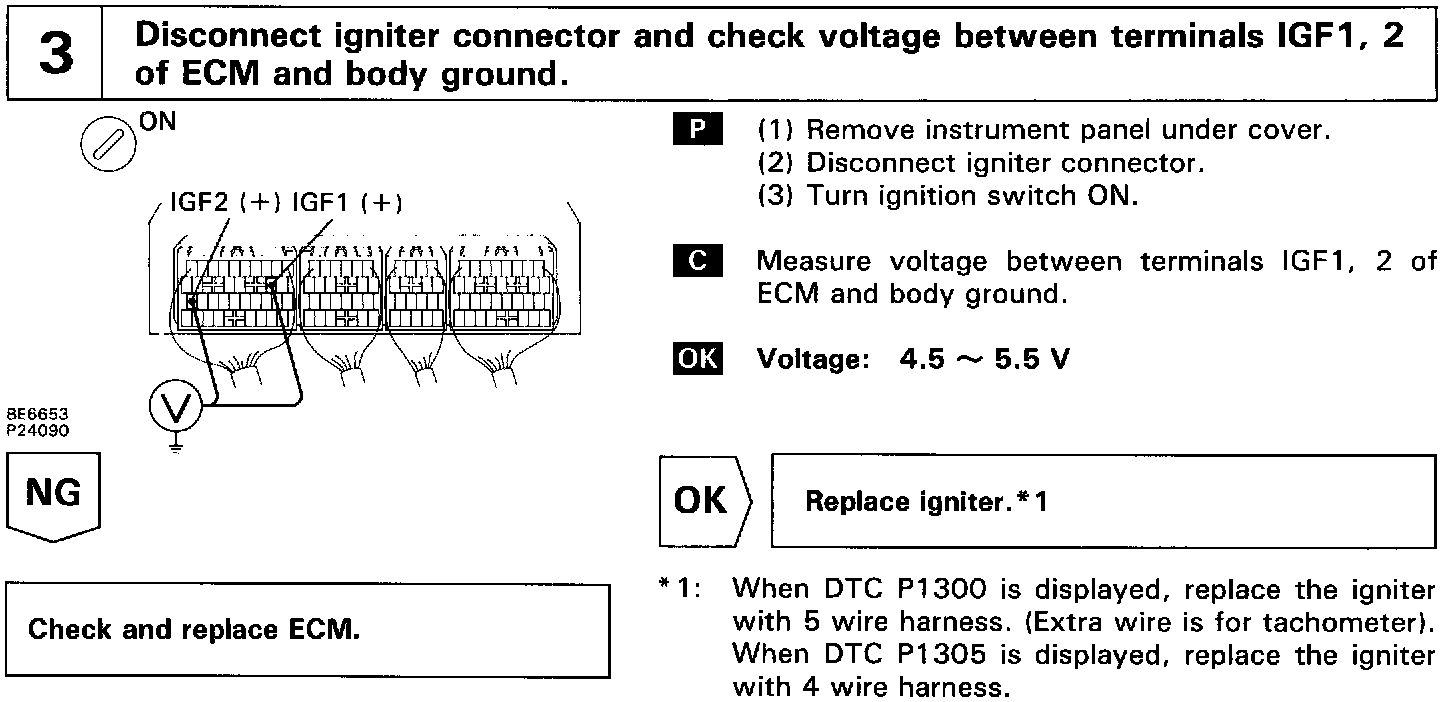

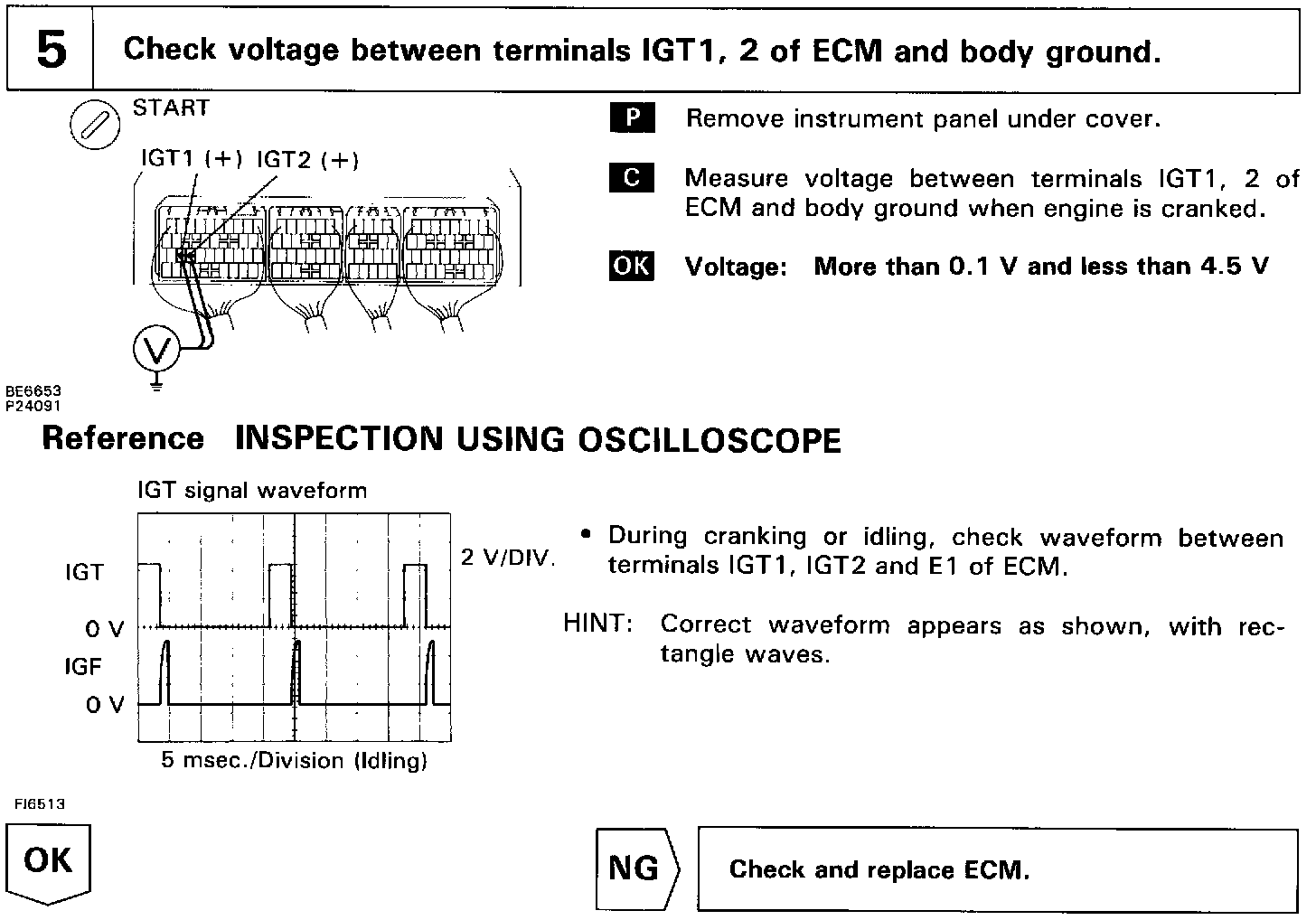

Inspection Procedure

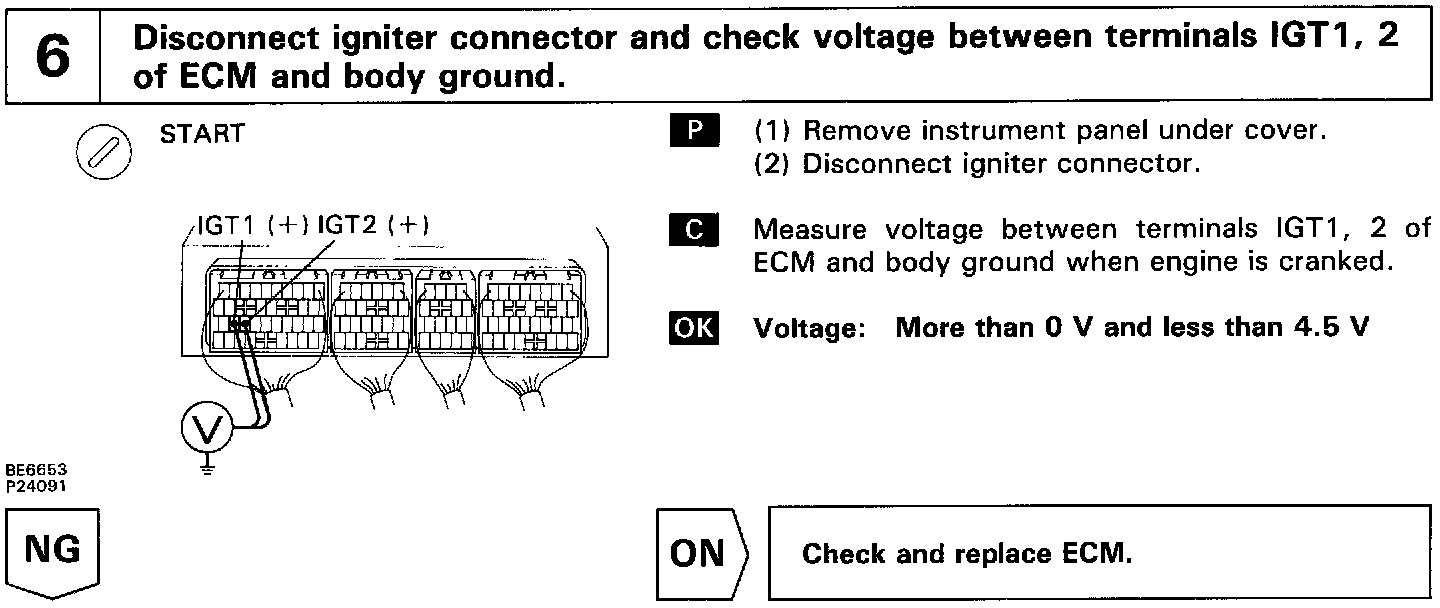

HINT: If DTC P1300 is displayed, check No.1 igniter circuit.
If DTC P1305 is displayed, check No.2 igniter circuit.
