Troubleshooting

Detecting Condition and Trouble Area

Reference - Inspection Using Oscilloscope

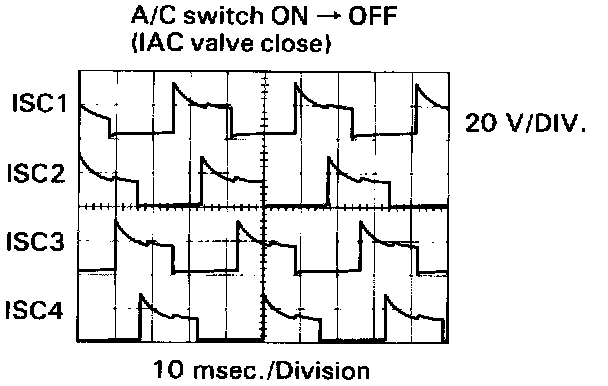

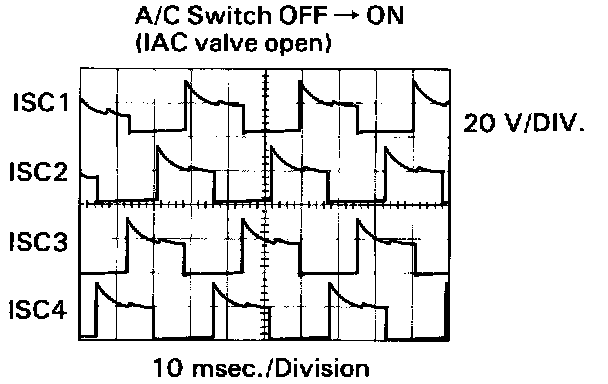

- With engine idling measure between terminals ISC1, ISC2, ISC3, ISC4 and E01 of ECM when A/C switch ON or OFF.








HINT: Correct waveforms are as shown.





Wiring Diagram

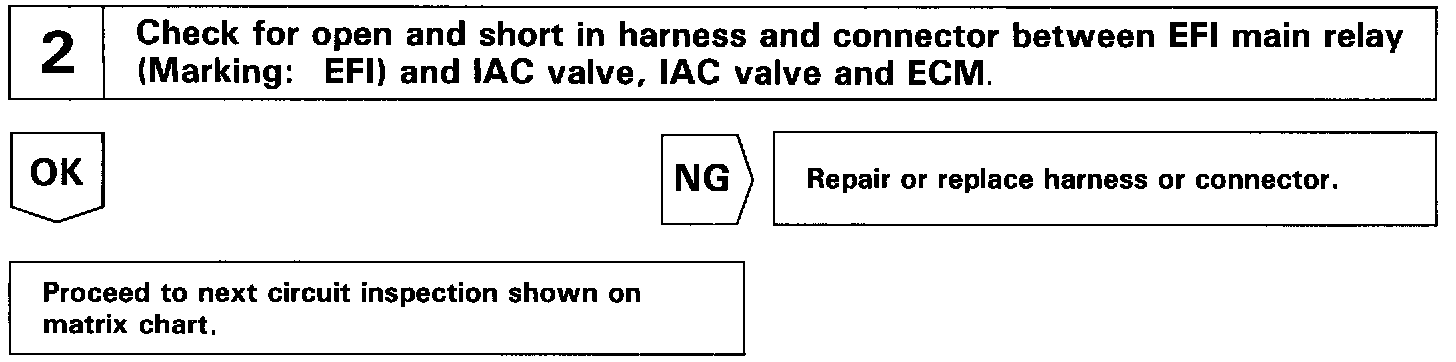

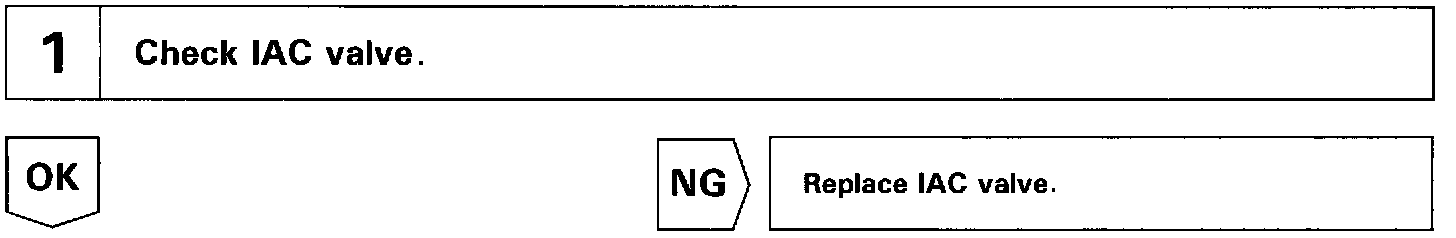

Inspection Procedure
