P0450

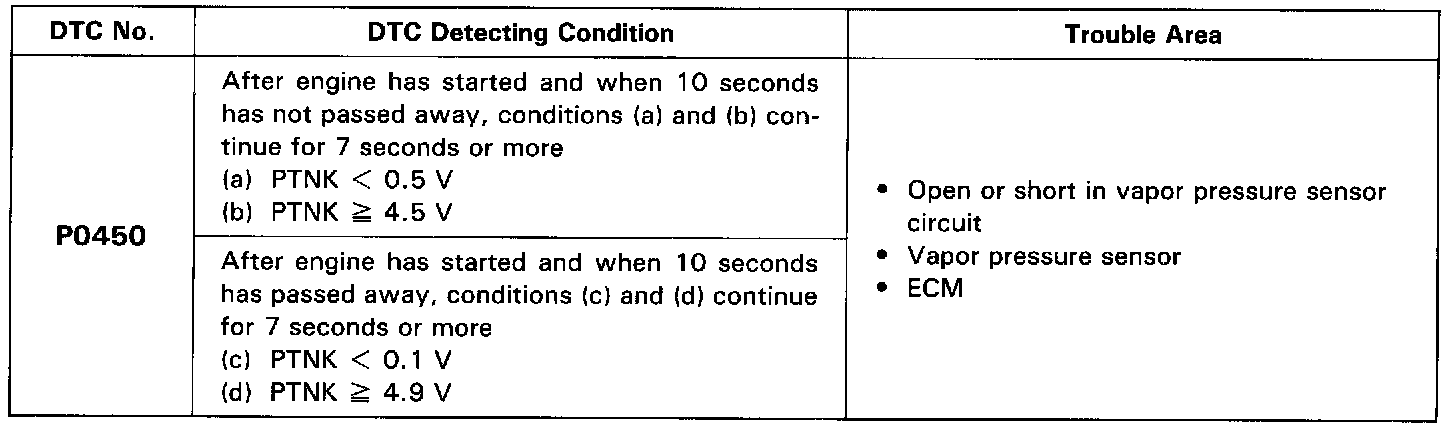

Detecting Condition and Trouble Area





Wiring Diagram

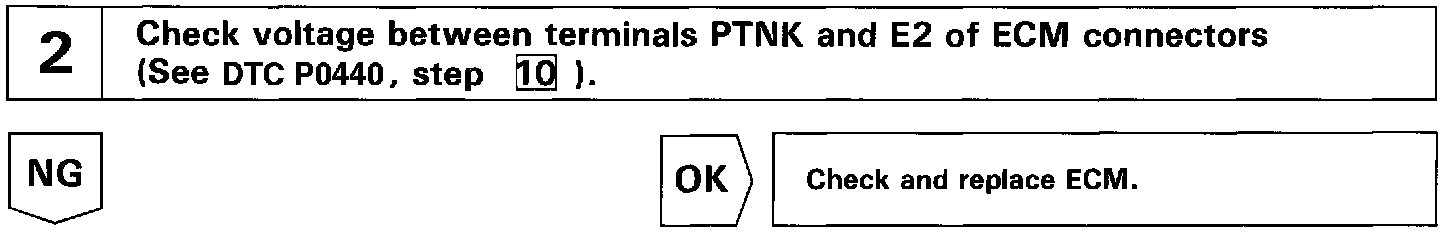

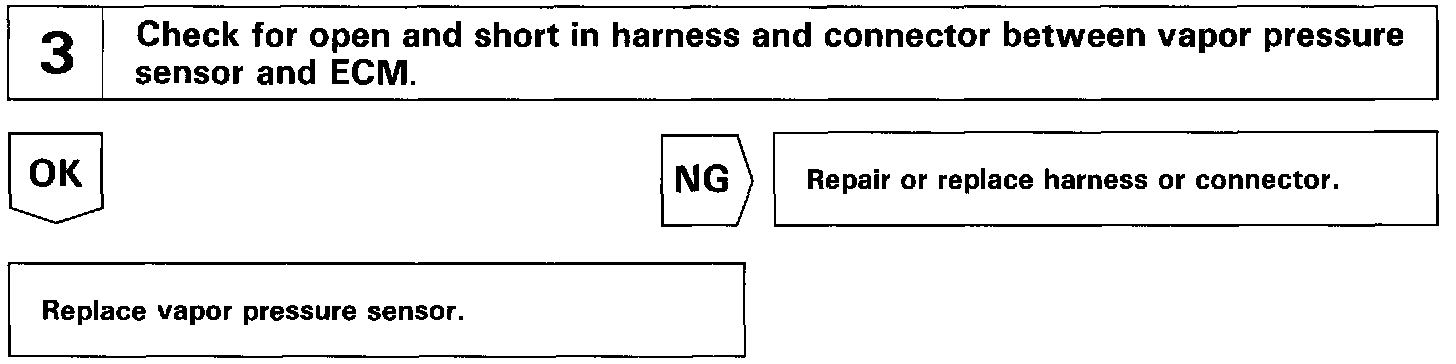

Inspection Procedure

HINT: If DTC P0441, P0446 or P0450 is output after DTC P0440, first trouble shot DTC P0441, P0446 or P0450. If no malfunction is detected, troubleshoot DTC P0440 next.
