Home >> Lexus >> 1997 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0446 >> Using Lexus Hand-Held Tester

Using Lexus Hand-Held Tester

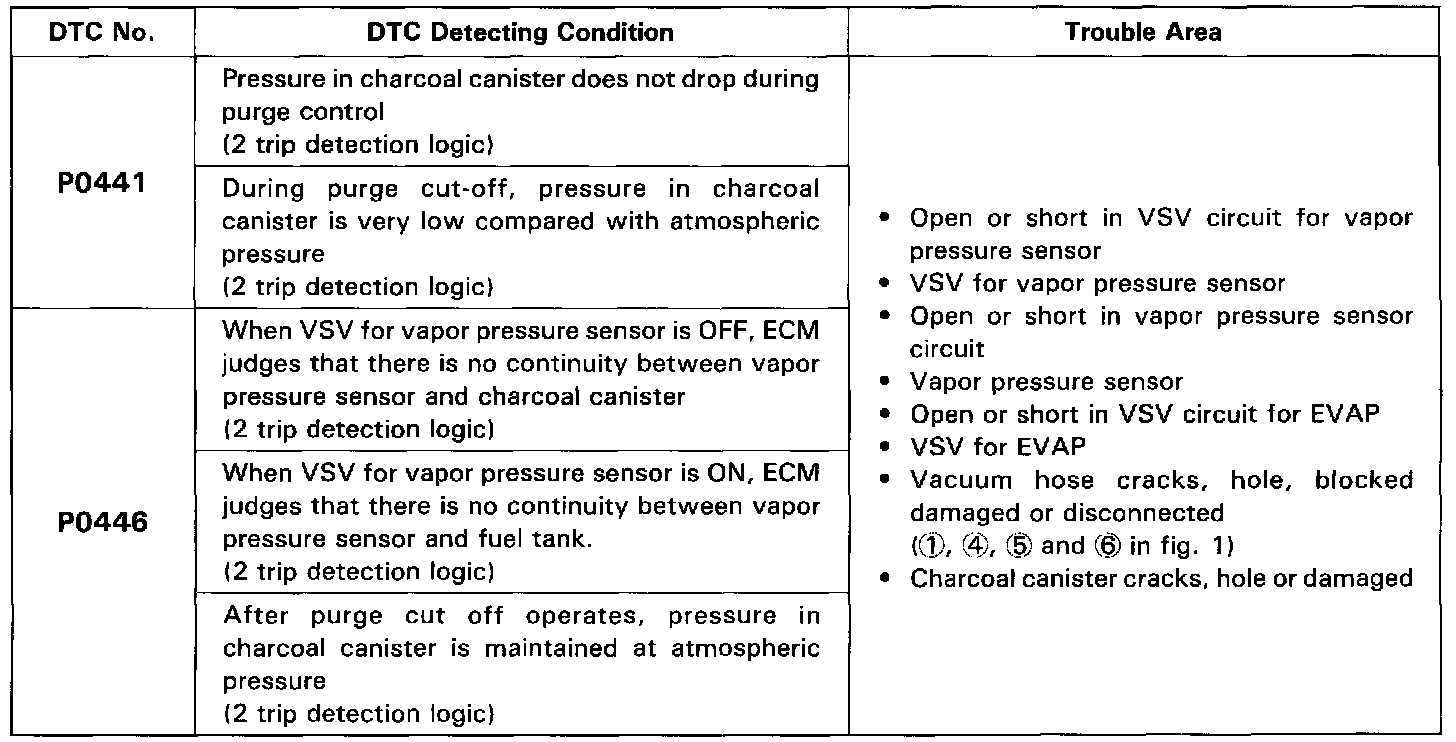

Detecting Condition and Trouble Area





Wiring Diagram

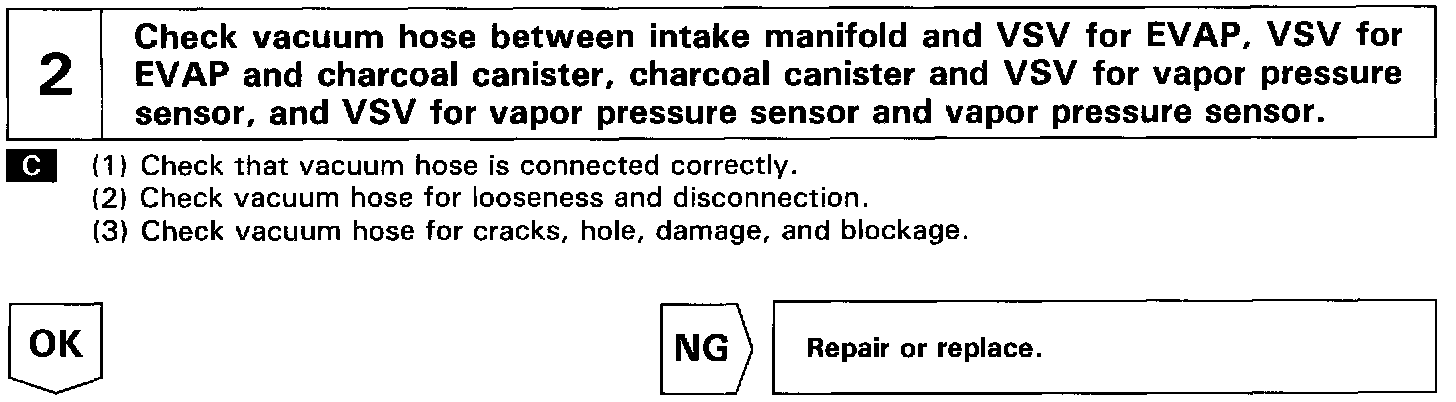

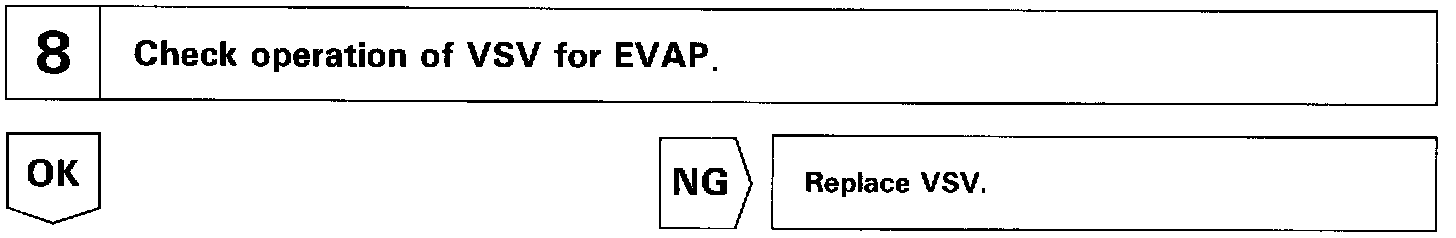

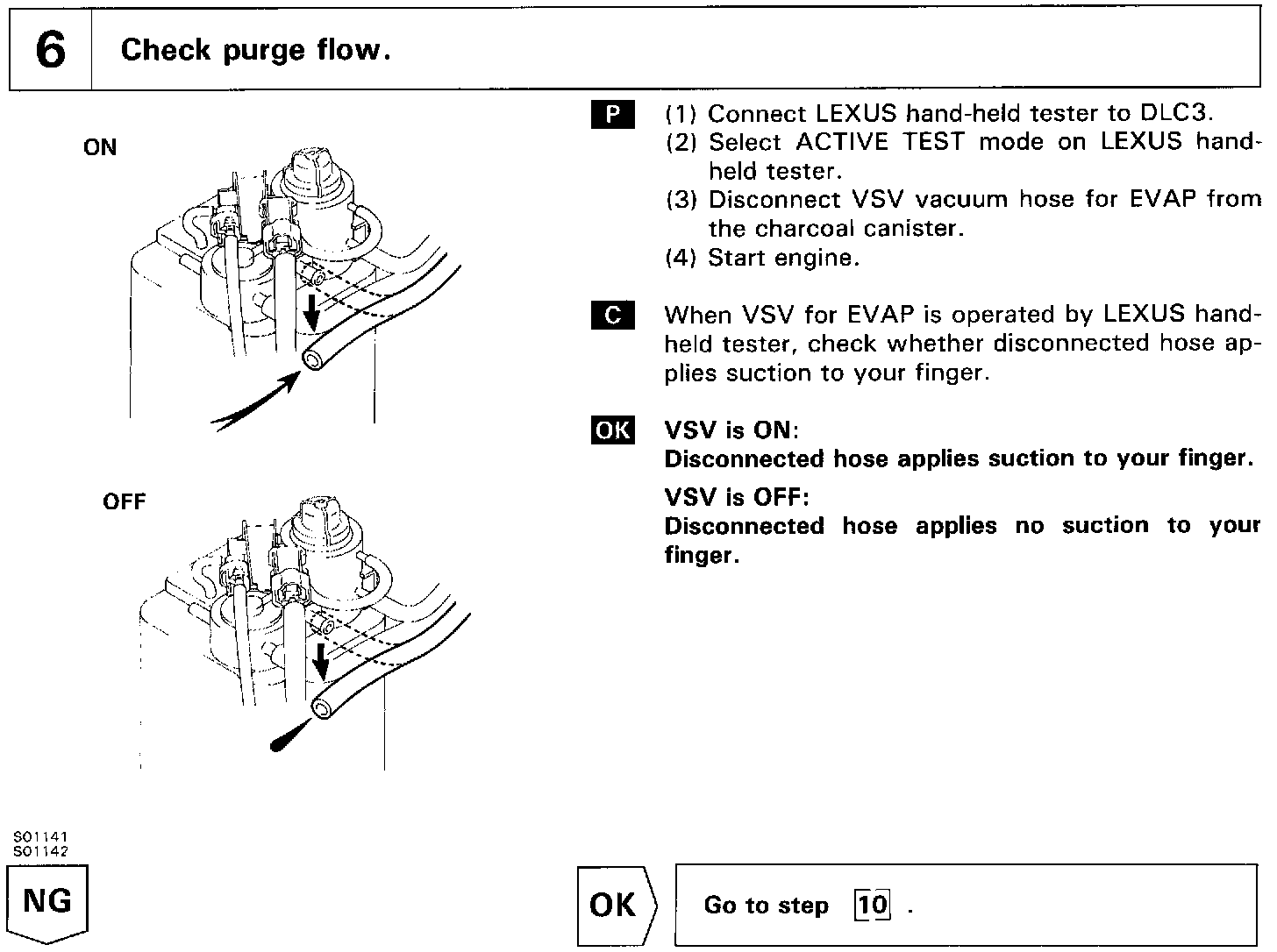

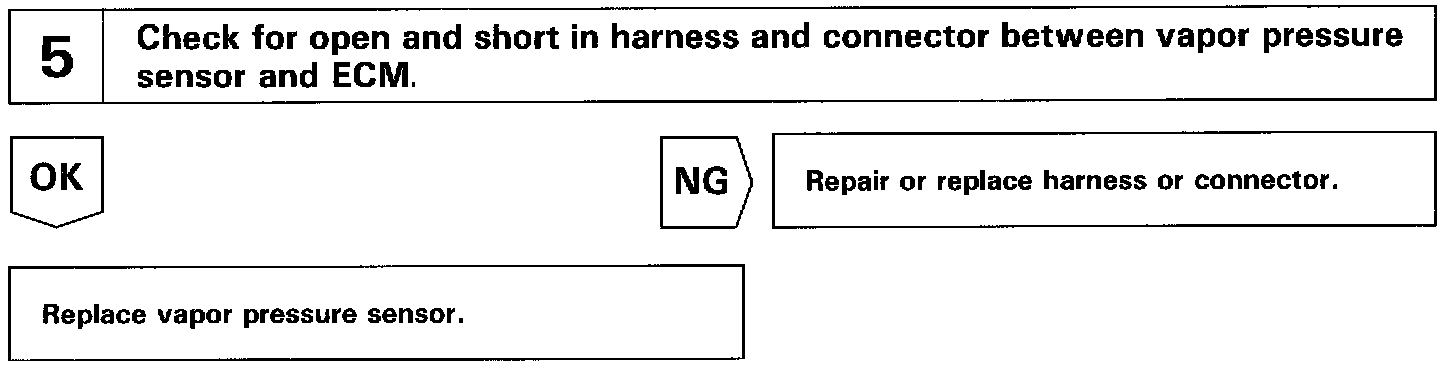

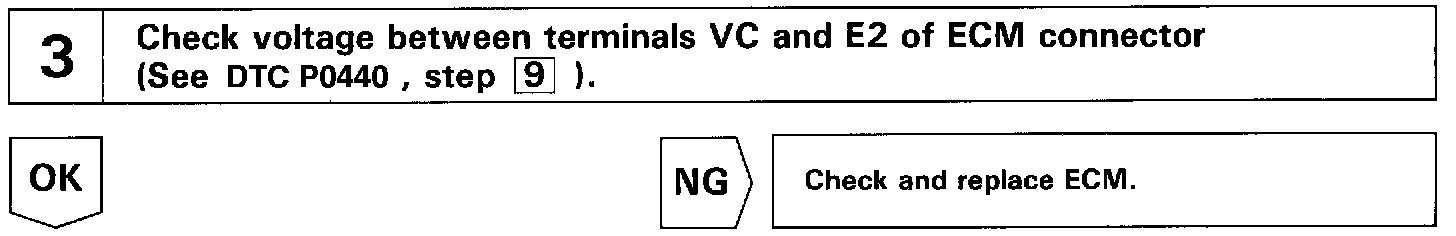

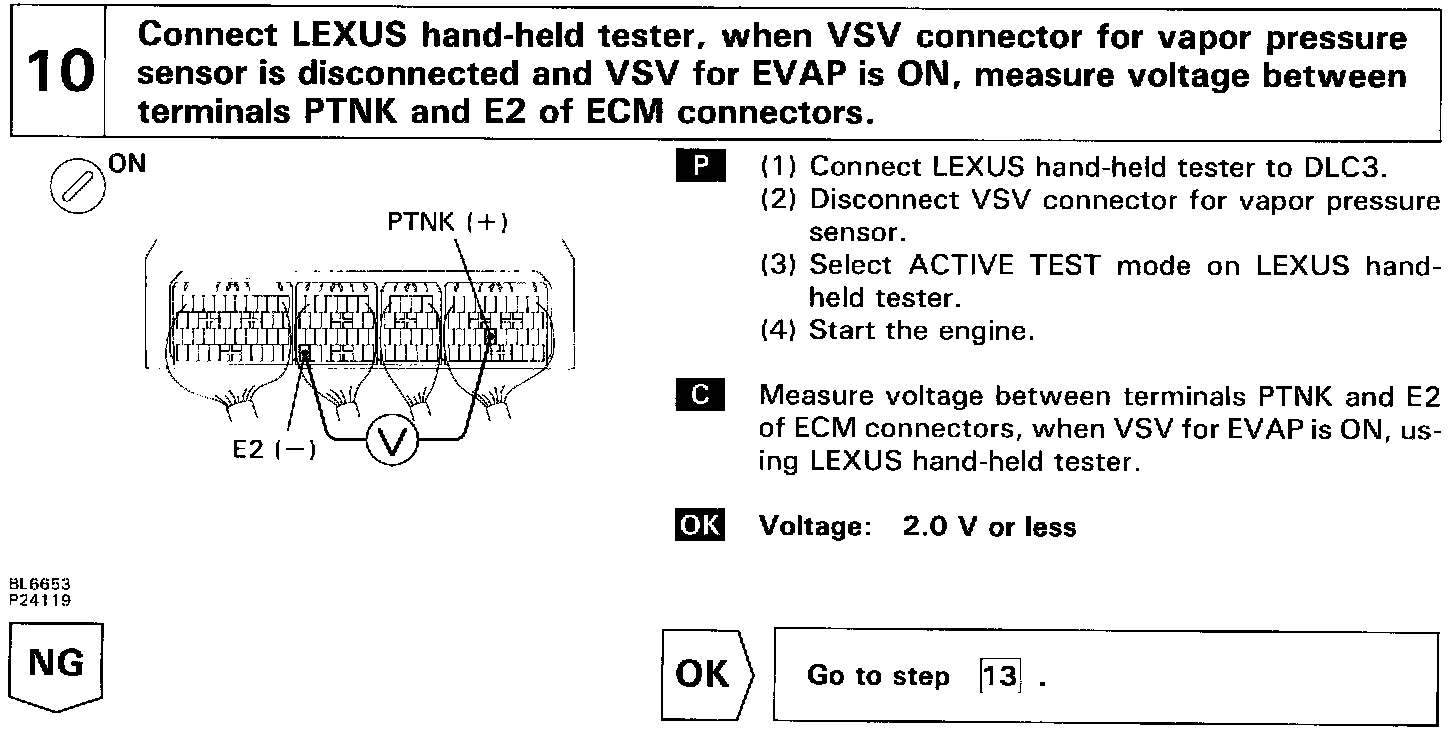

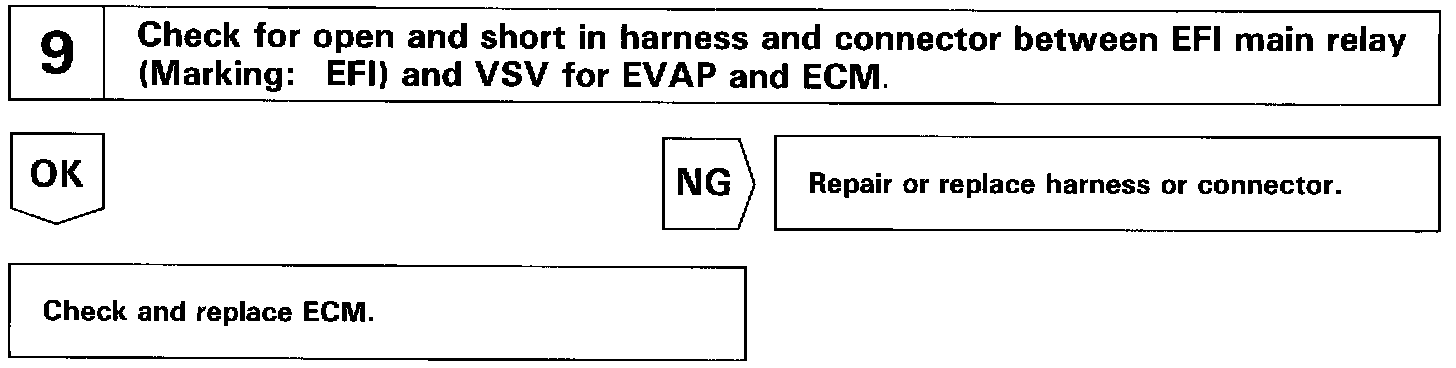

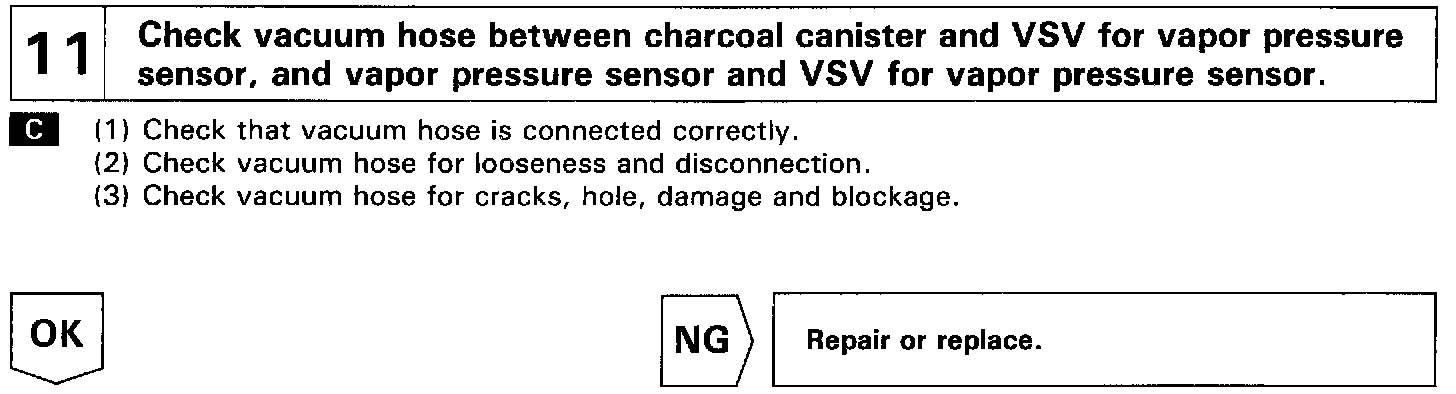

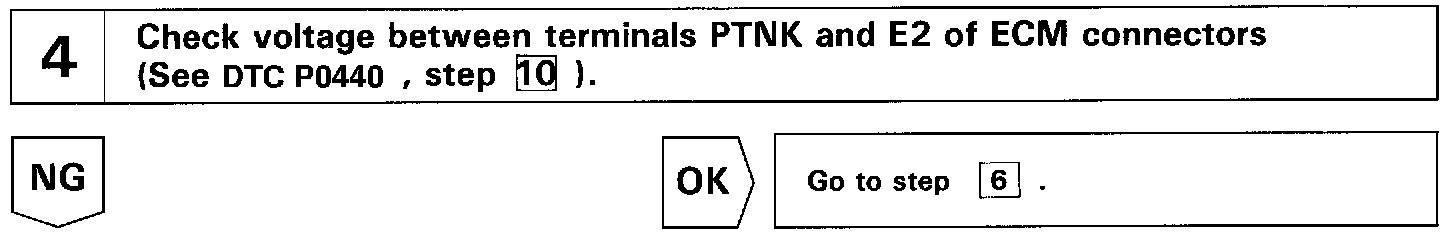

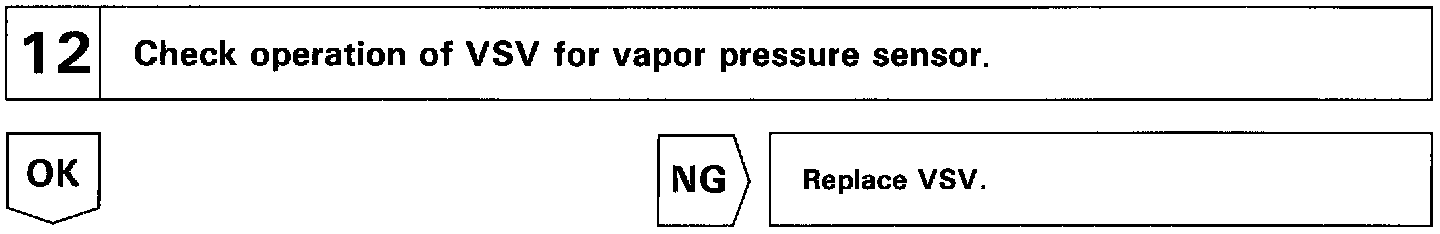

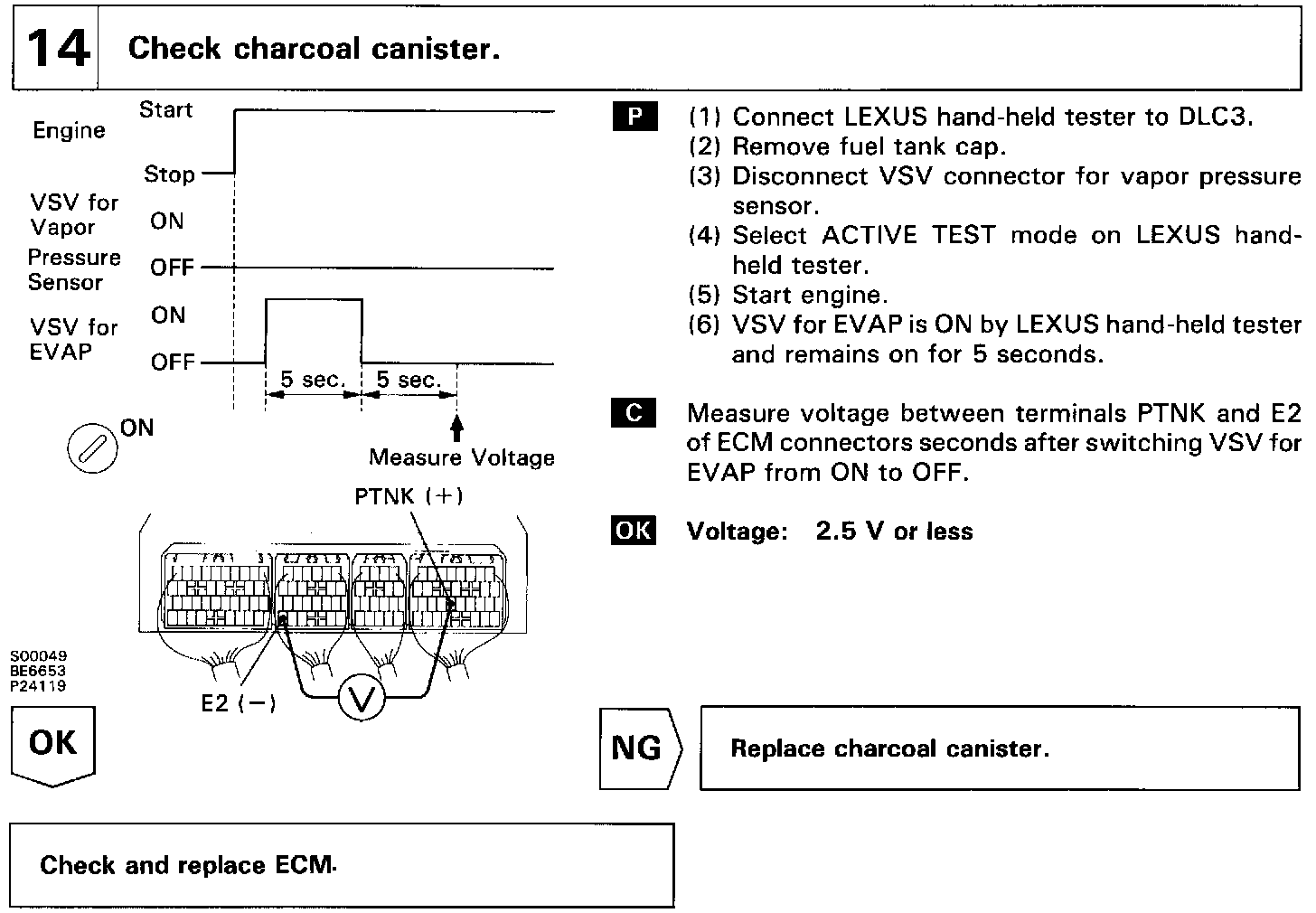

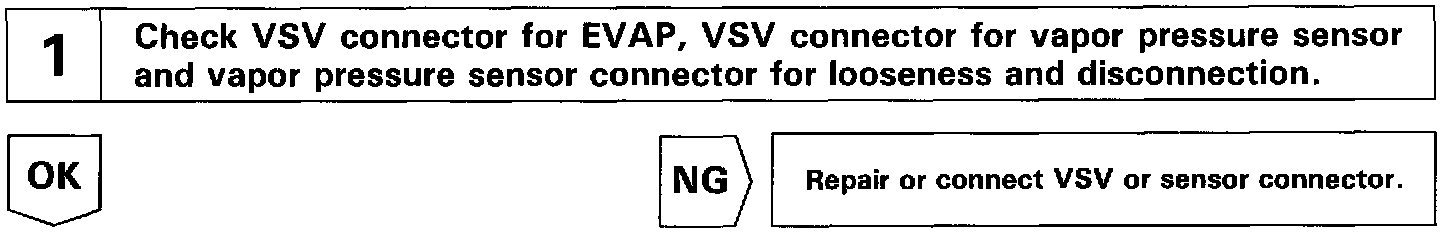

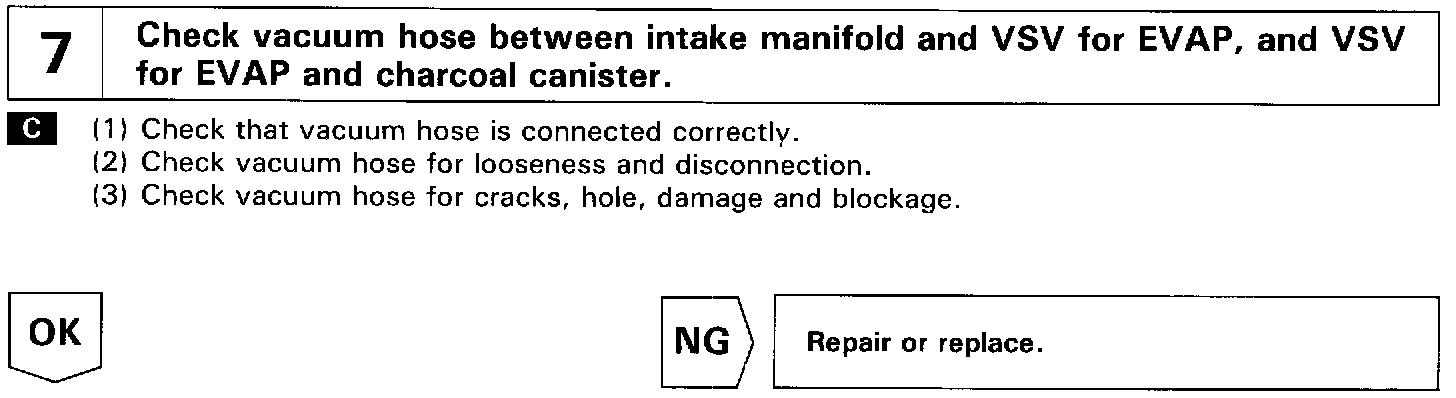

Inspection Procedure

HINT: If DTC P0441, P0446 or P0450 is output after DTC P0440, first troubleshoot DTC P0441, P0446 or P0450. If no malfunction is detected, troubleshoot DTC P0440 next.
