Troubleshooting

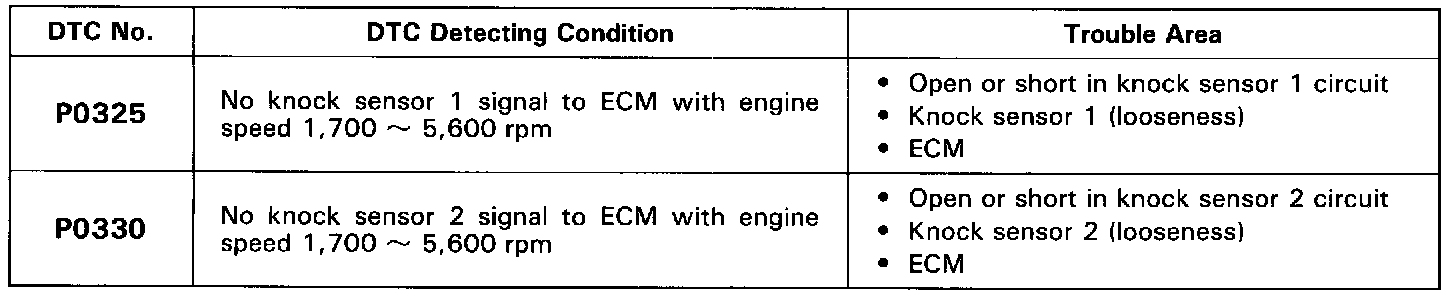

Detecting Condition and Trouble Area
If ECM detects above diagnosis conditions, it operates fail safe function in which corrective retard angle value is set to maximum value.

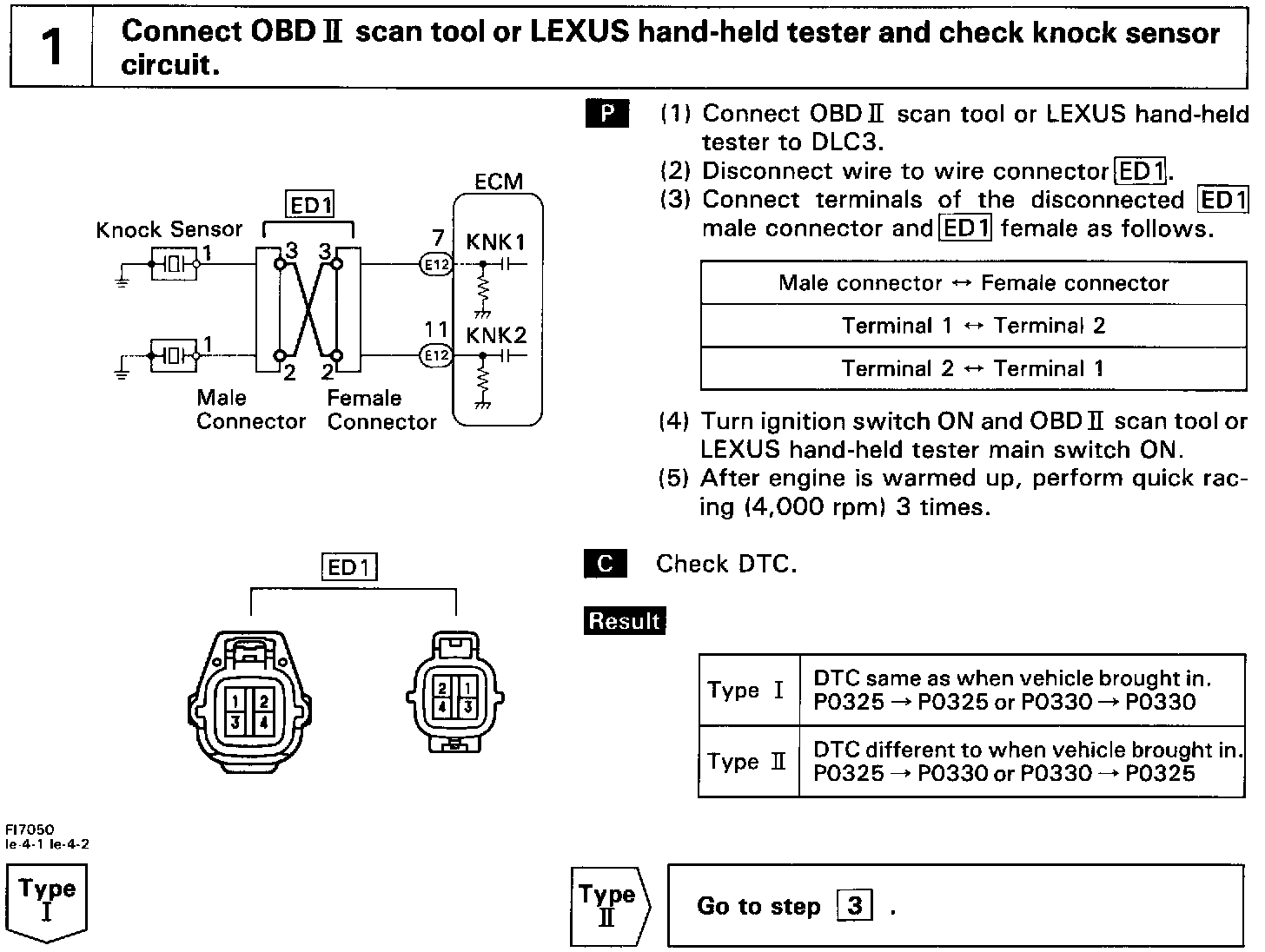

Wiring Diagram

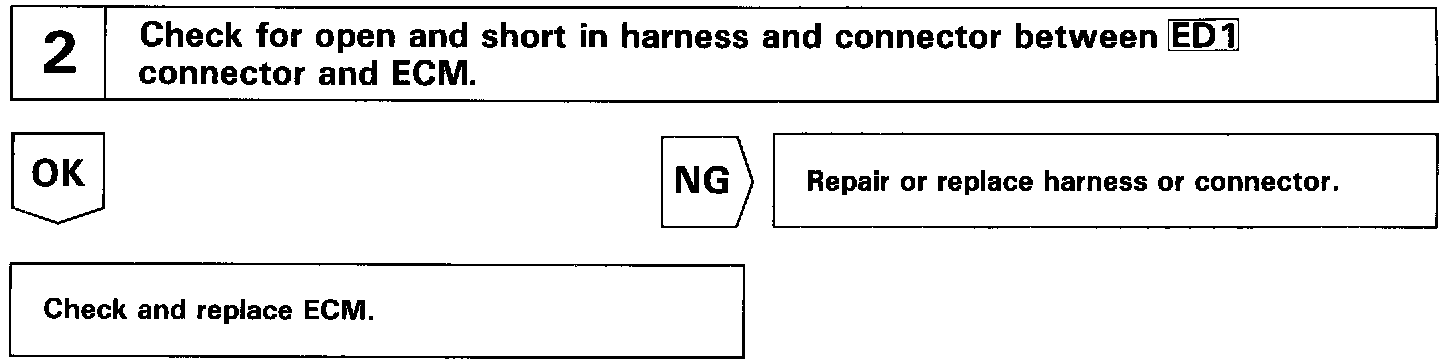

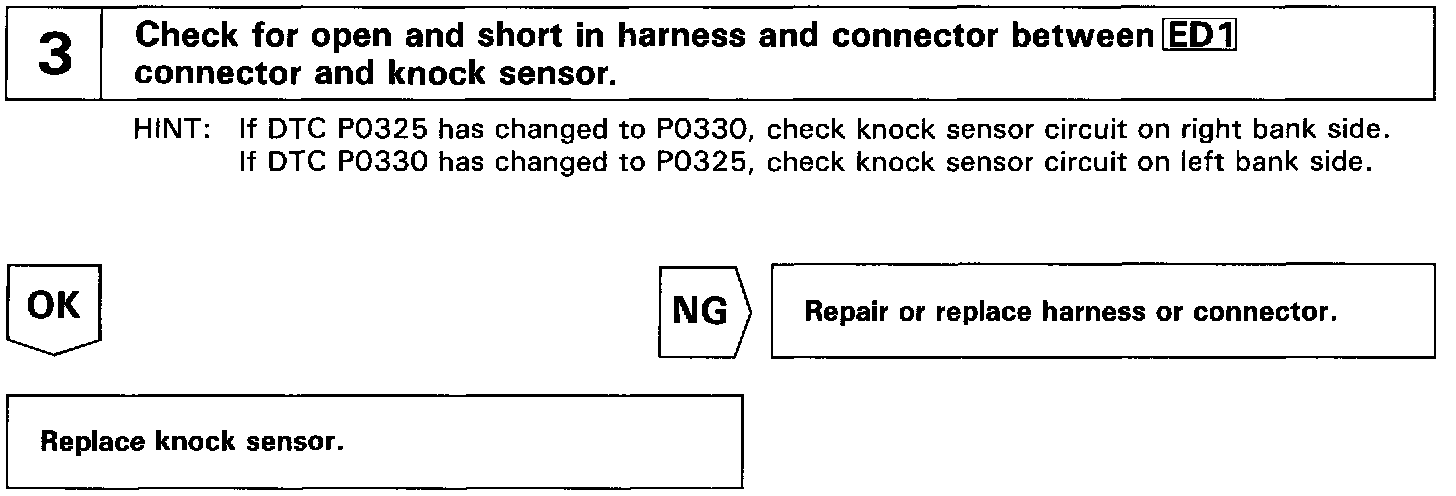

Inspection Procedure

HINT: DTC P0325 is for right bank knock sensor circuit. DTC P0330 is for left bank knock sensor circuit.

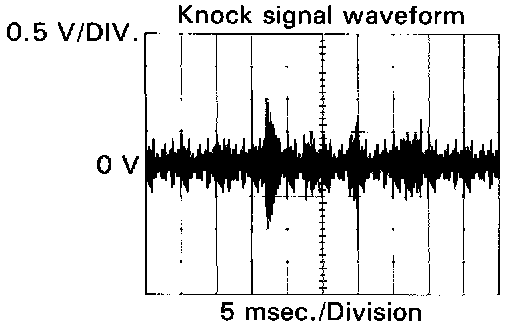

Reference - Inspection Using Oscilloscope





- With engine racing (4,000 rpm) measure between terminals KNK1, KNK2 of ECM and body ground.

HINT: Correct waveform is as shown.

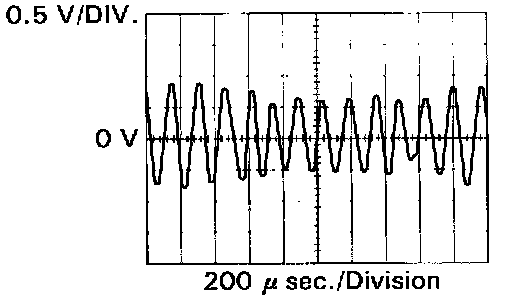

- Spread time on the horizontal axis and confirm that period of the wave is 151 micro seconds.
(Normal mode vibration frequency of knock sensor: 6.6 KHz).

HINT: If normal mode vibration frequency is not 6.6 KHz, the sensor is malfunctioning.
