Troubleshooting

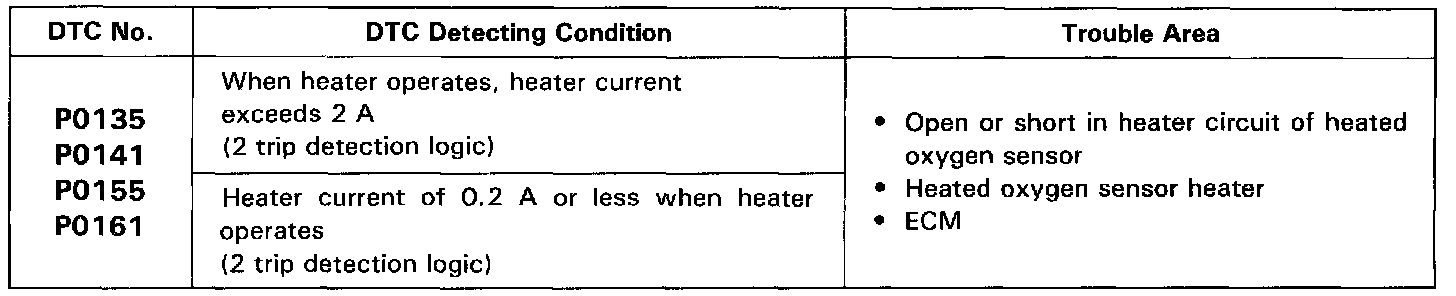

Detecting Condition and Trouble Area

HINT: Bank 1 refers to bank that includes cylinder No.1. Bank 2 refers to bank that does not include cylinder No.1. Sensor 1 refers to sensor closer to engine body. Sensor 2 refers to sensor farther away from engine body.





Wiring Diagram

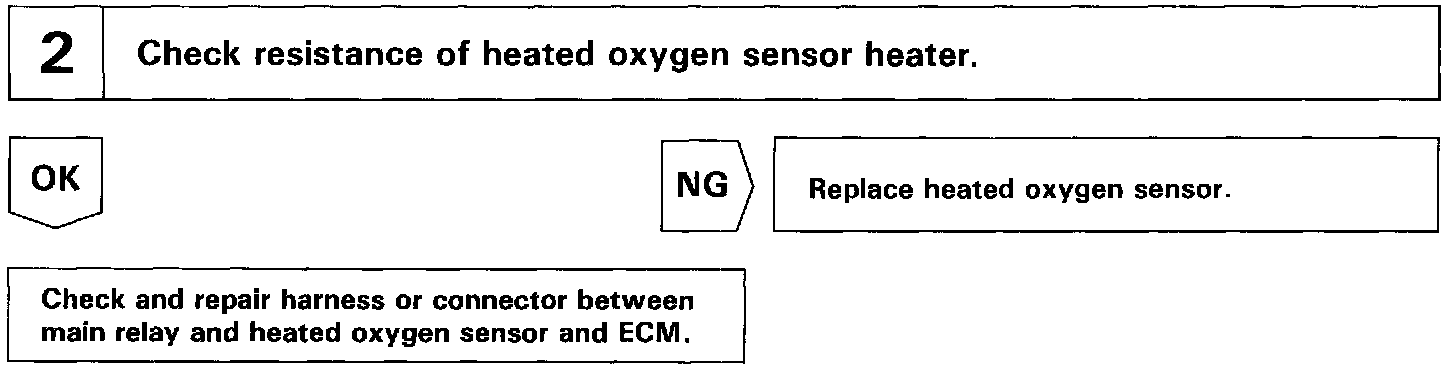

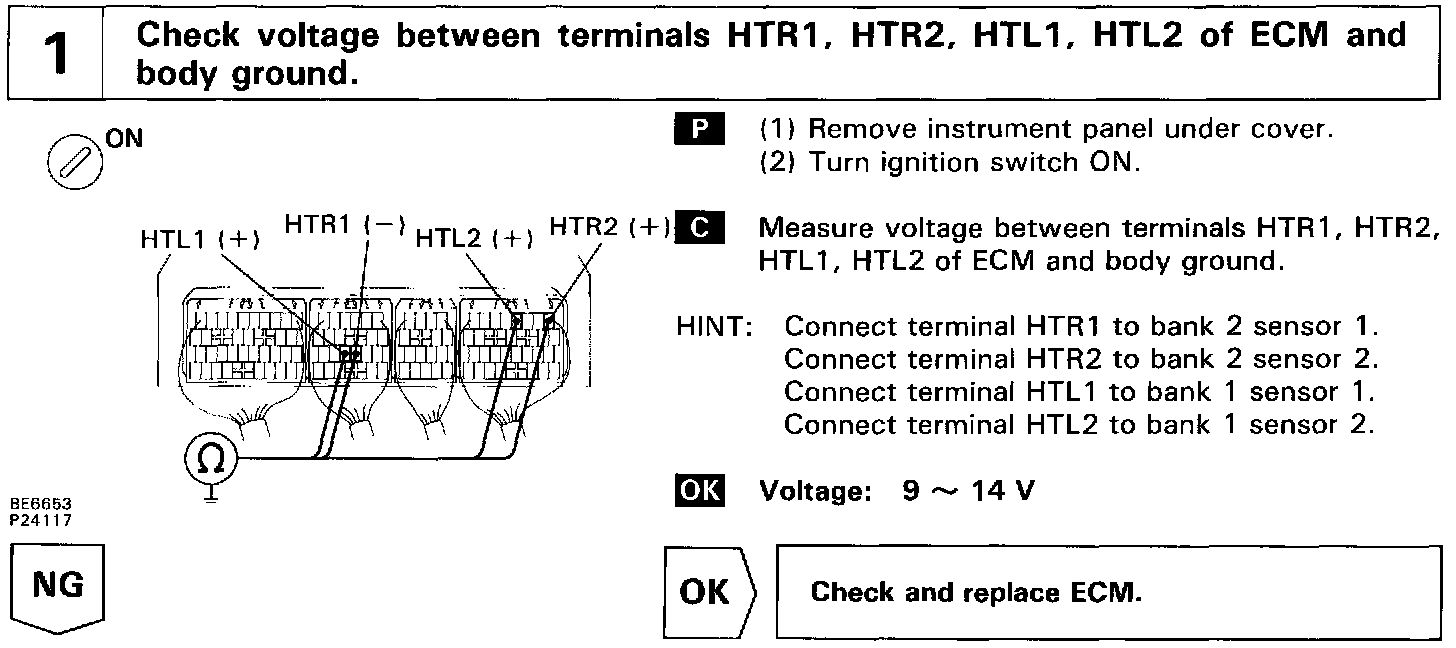

Inspection Procedure
