DTC 82

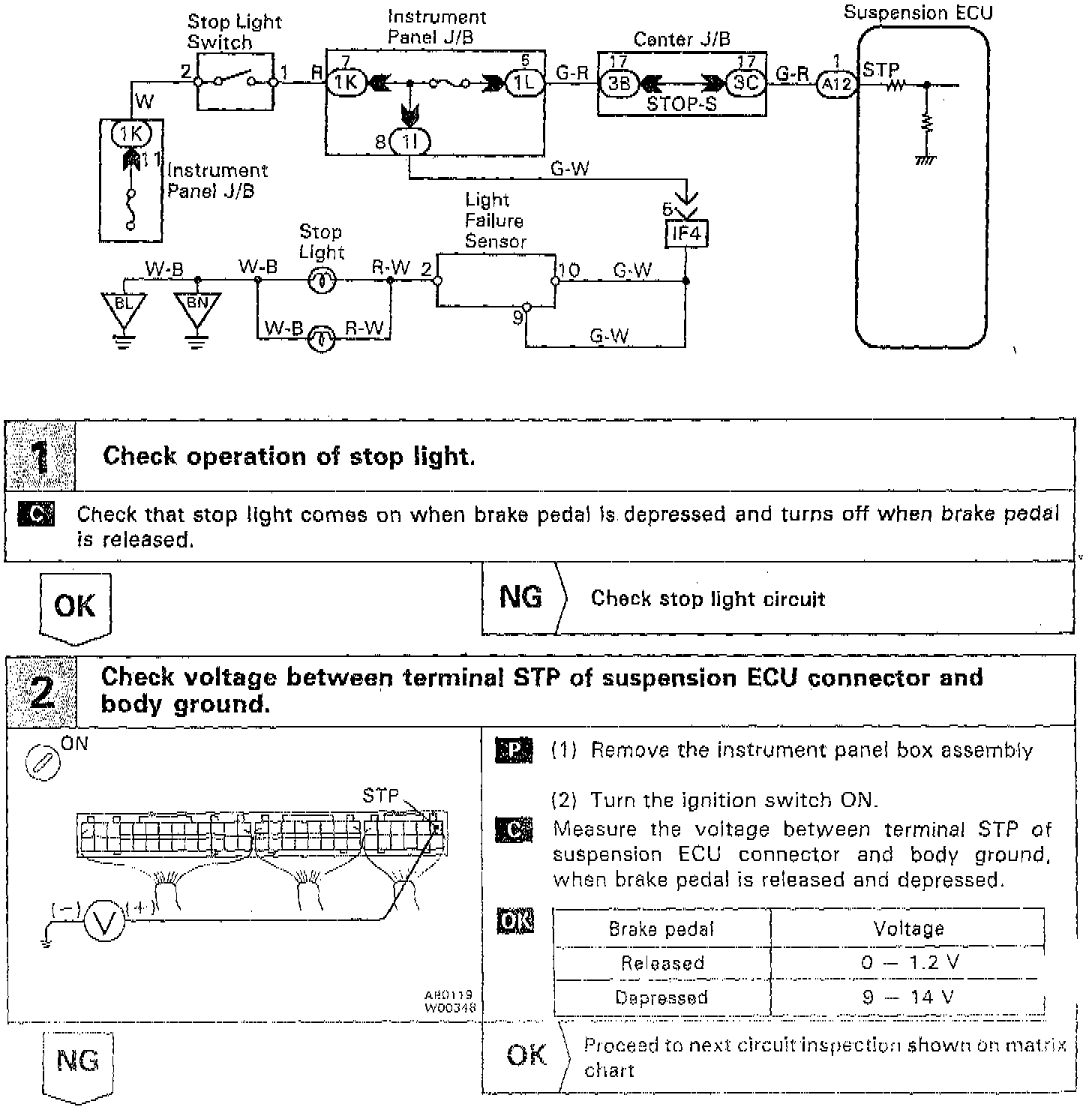

CIRCUIT DESCRIPTION:
When the brake pedal is depressed, the stop light switch comes on and battery positive voltage is applied to terminal STP of ECU. This signal is used by the ECU as one of the starting conditions for anti-dive control.

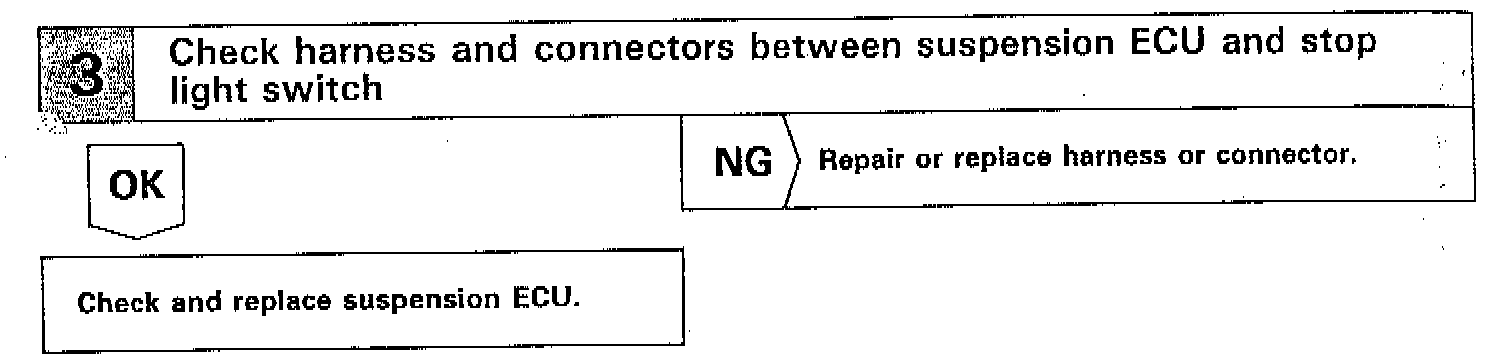

Code 82 is set when the stop light signal does not change. Inspect the ECU, stop light switch and the harness connectors between the ECU, stop light switch and body ground.
