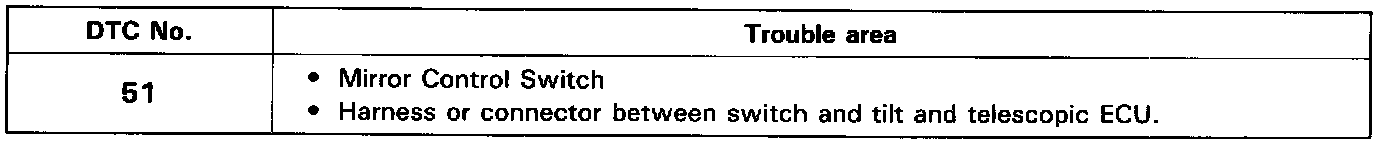

DTC 51





CIRCUIT DESCRIPTION
This code is output when the mirror control switch is stuck and the switch is operated (Switch ON).

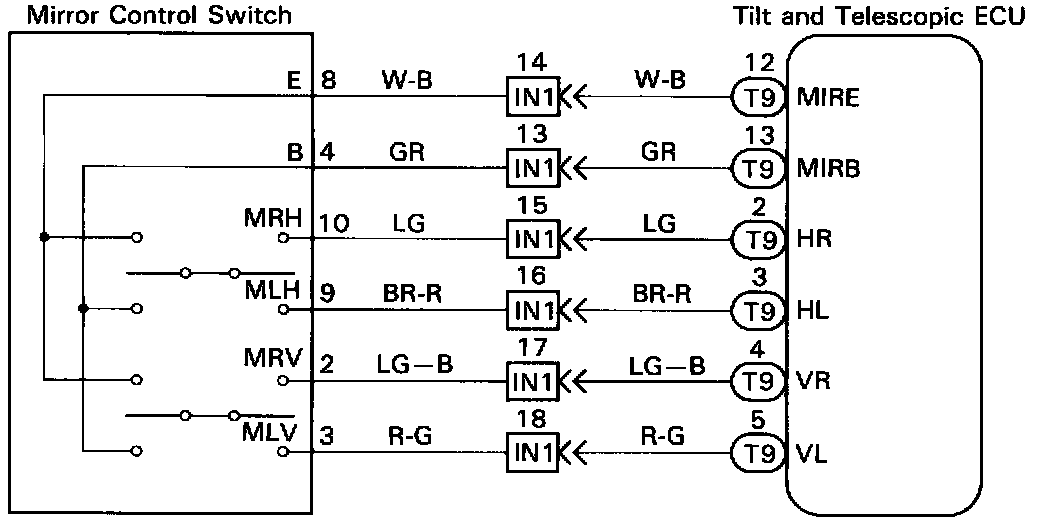

WIRING DIAGRAM

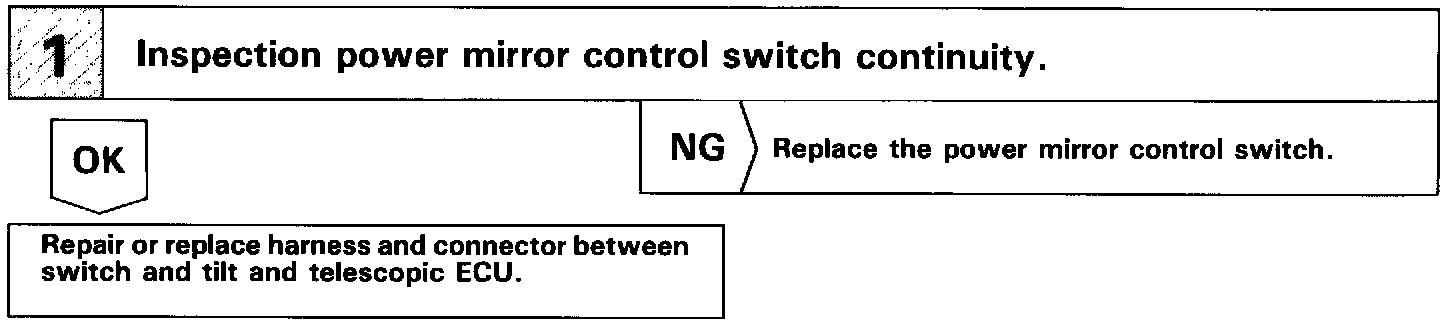

INSPECTION PROCEDURE
