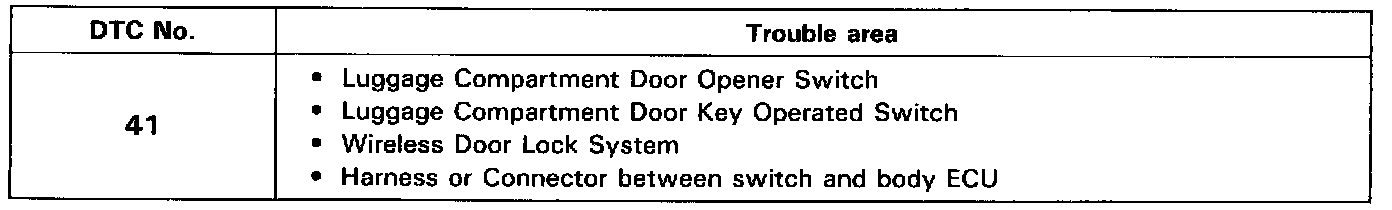

DTC 41

CIRCUIT DESCRIPTION
1. This code is output when the luggage compartment door opener switch or luggage compartment door key operated switch is stuck. The code is output when either switch is operated (Switch ON).
2. This code is also output if the input to the body ECU from the wireless door lock ECU is abnormal.

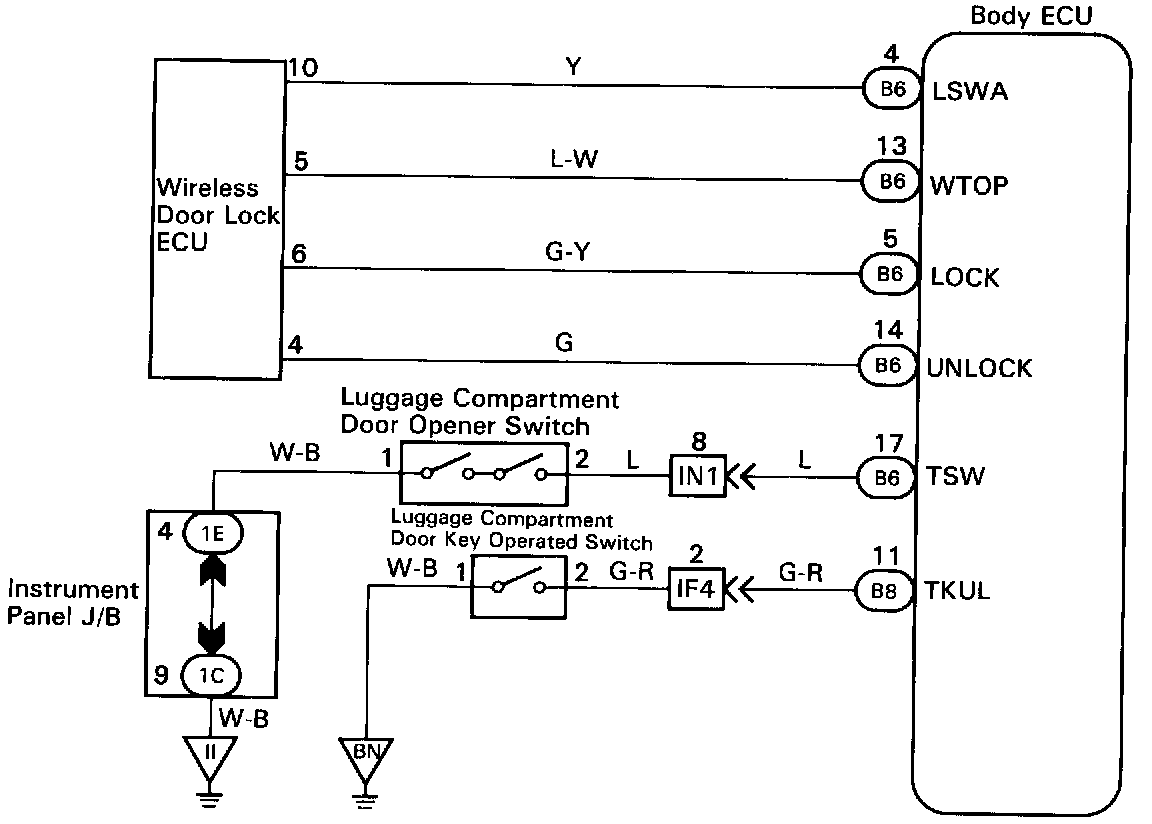

WIRING DIAGRAM

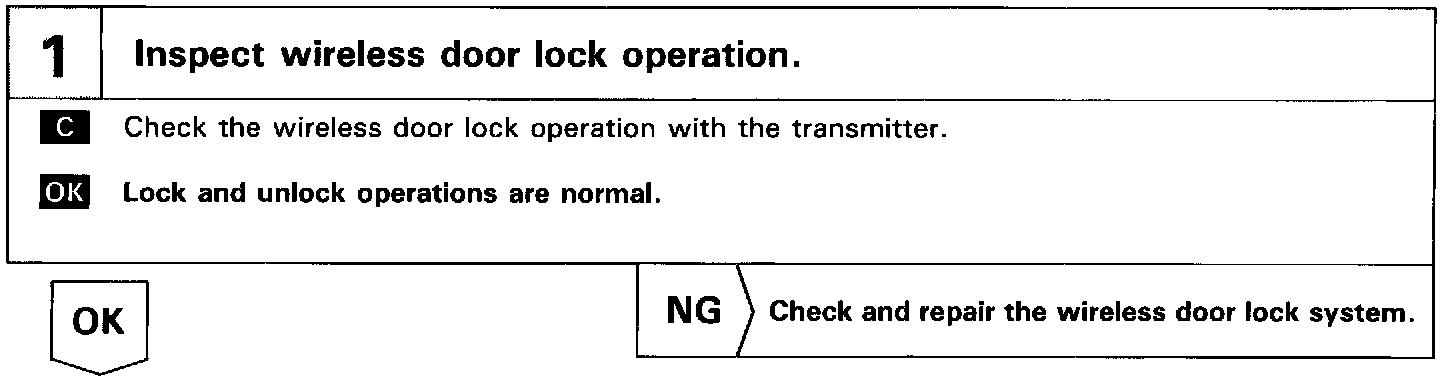

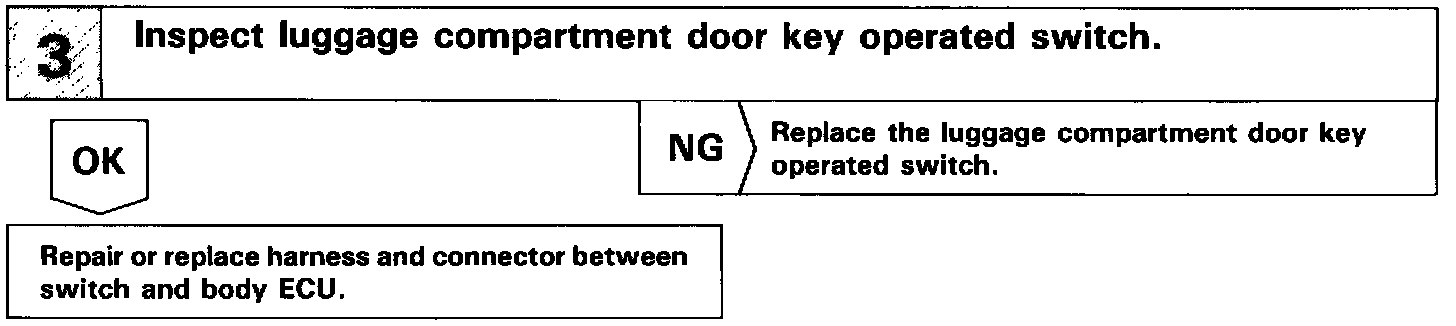

INSPECTION PROCEDURE
