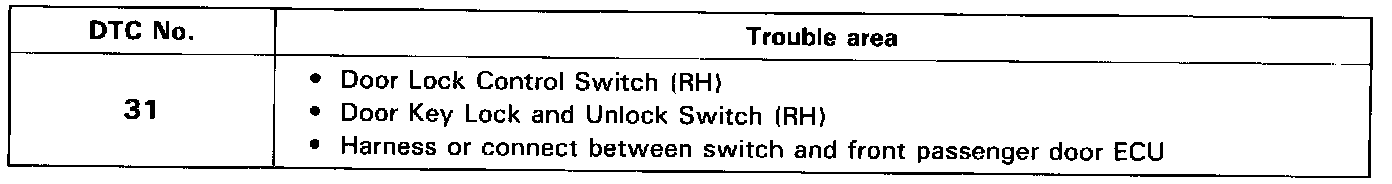

DTC 31

CIRCUIT DESCRIPTION
This code is output when either the door lock control switch (Front RH) or door key lock and unlock switch (Front RH) is stuck. The code is output when either switch is operated (SW ON).

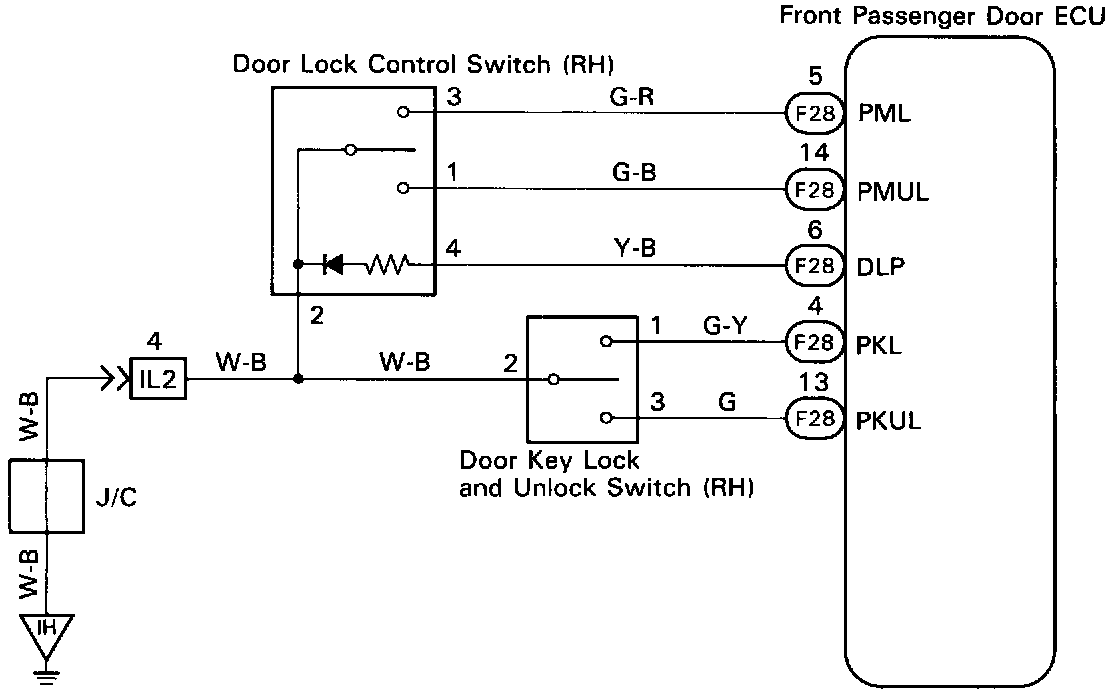

WIRING DIAGRAM

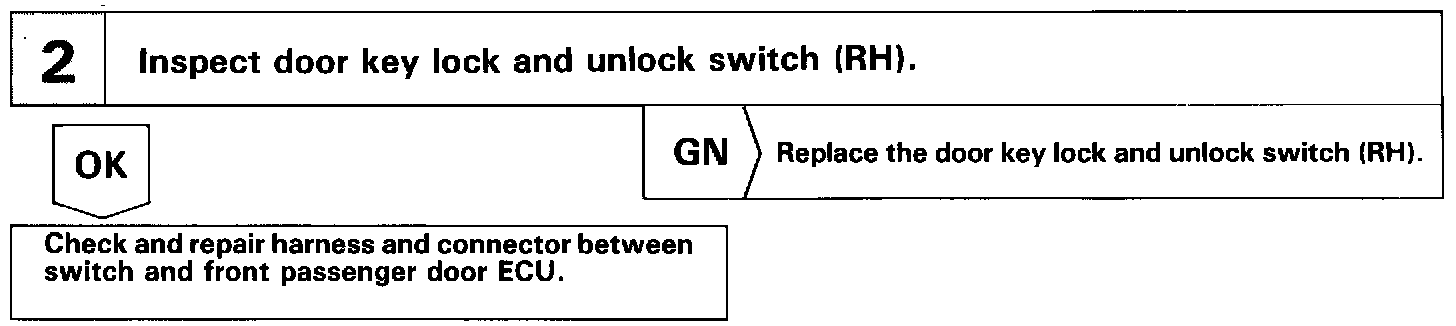

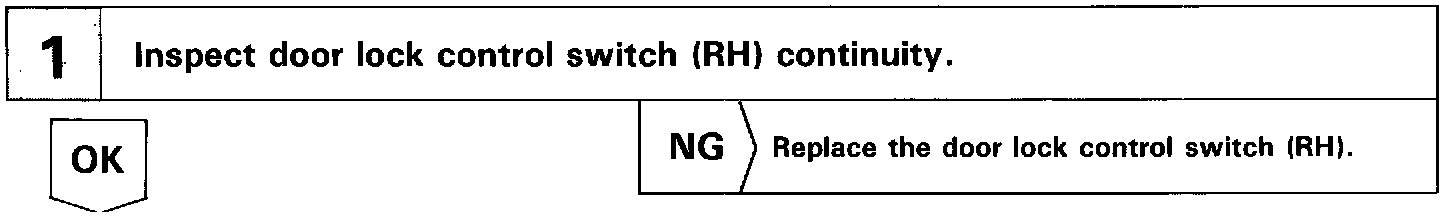

INSPECTION PROCEDURE
