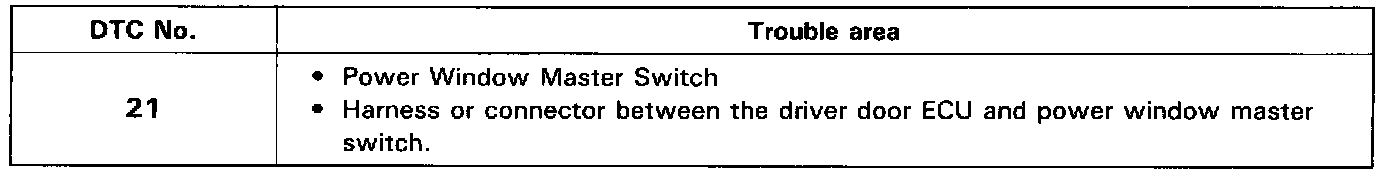

DTC 21

CIRCUIT DESCRIPTION
This code is output when any switch within the master switch (except window lock switch) is stuck. It is output whenever any switch within the master switch (except window lock switch) is operated (SW ON).

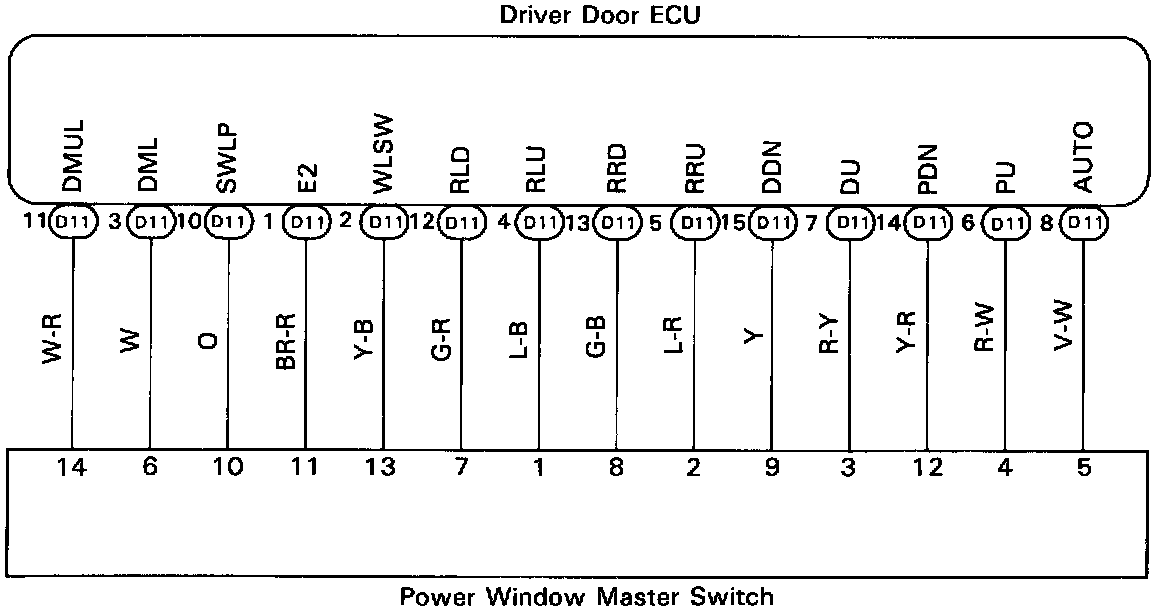

WIRING DIAGRAM

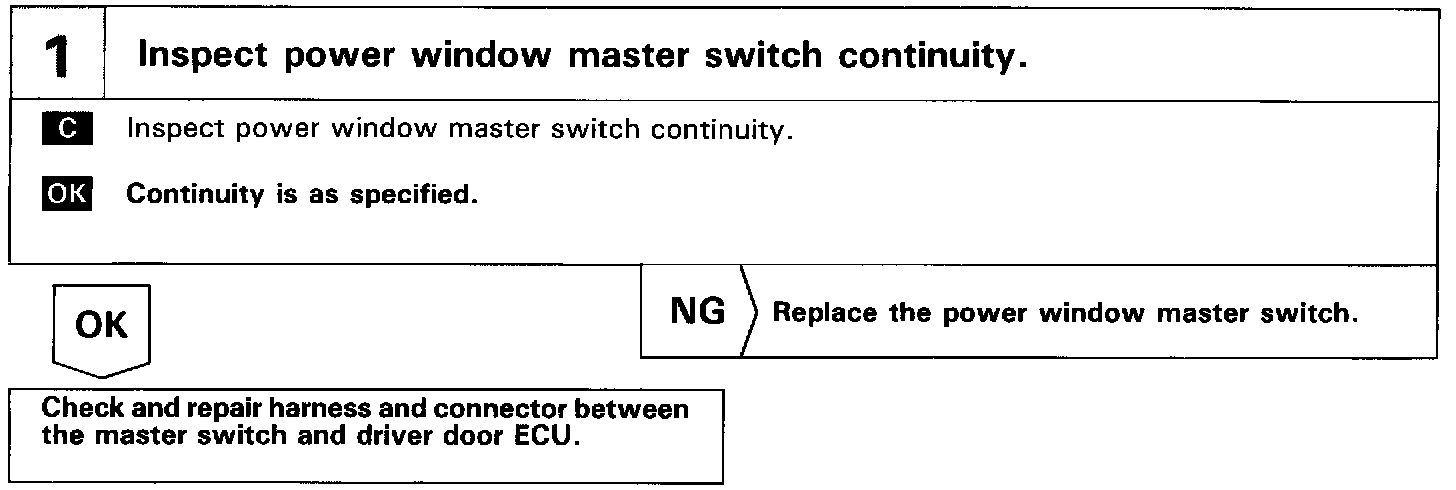

INSPECTION PROCEDURE
