DTC 14

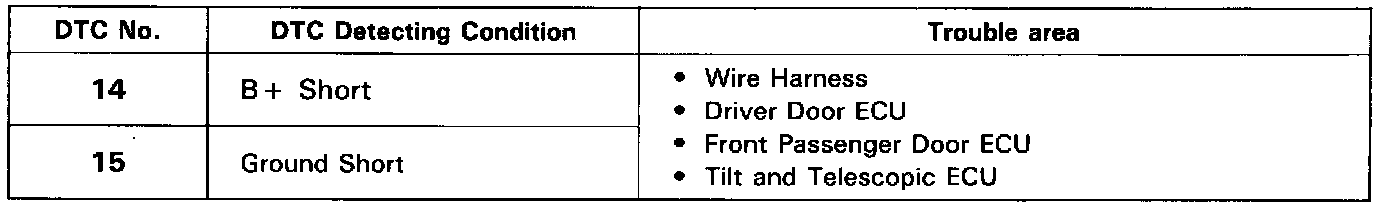

CIRCUIT DESCRIPTION
This code is output when the communication circuit is shorted at B+ or ground.

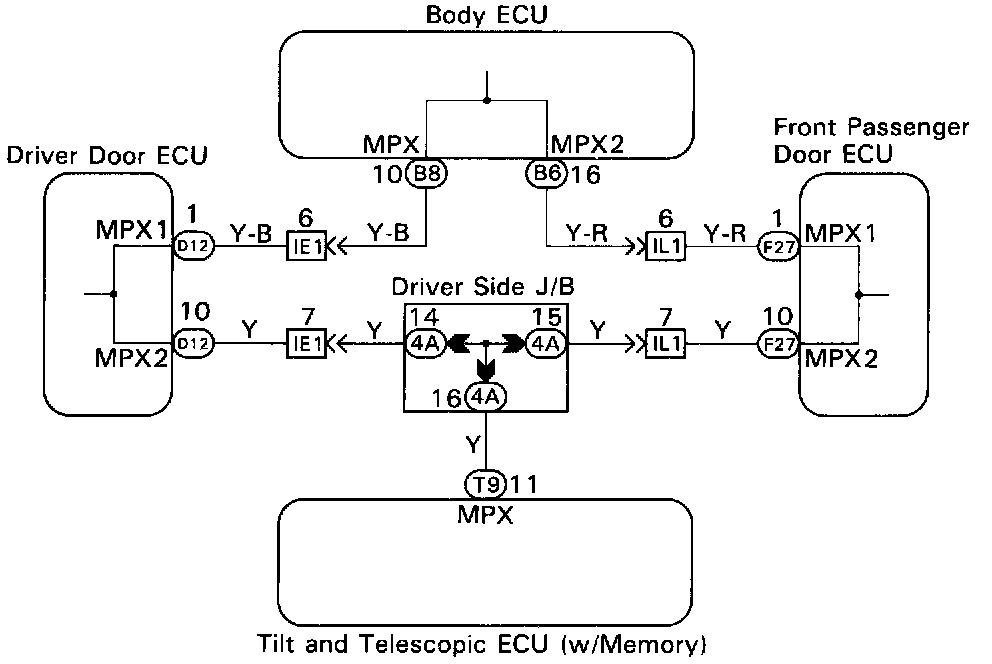

WIRING DIAGRAM

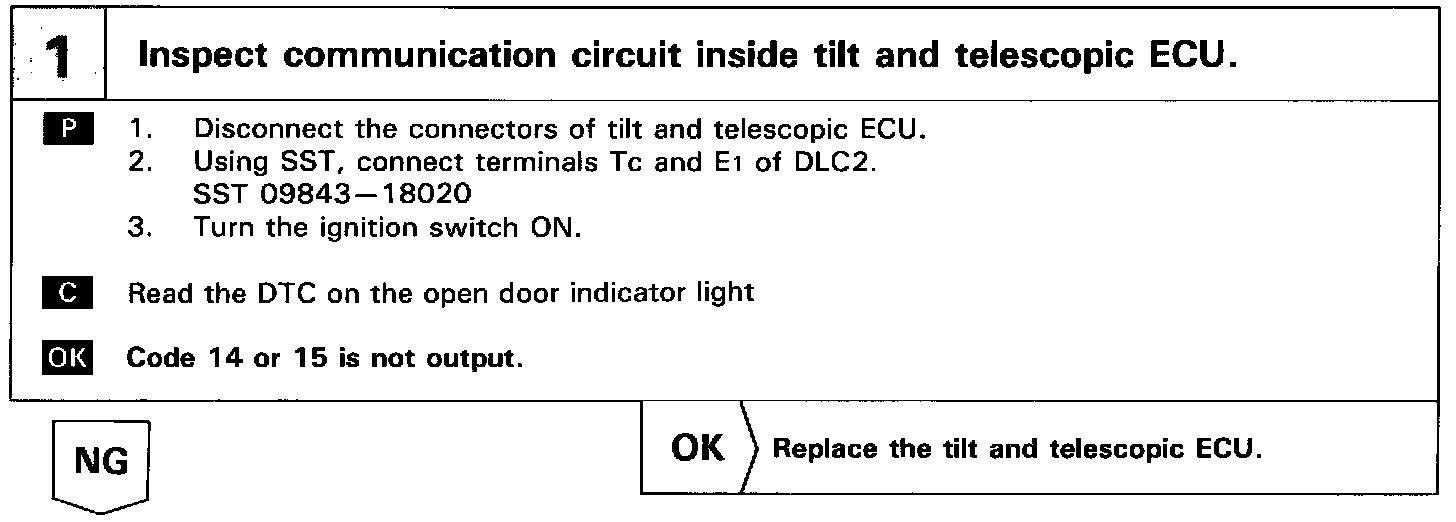

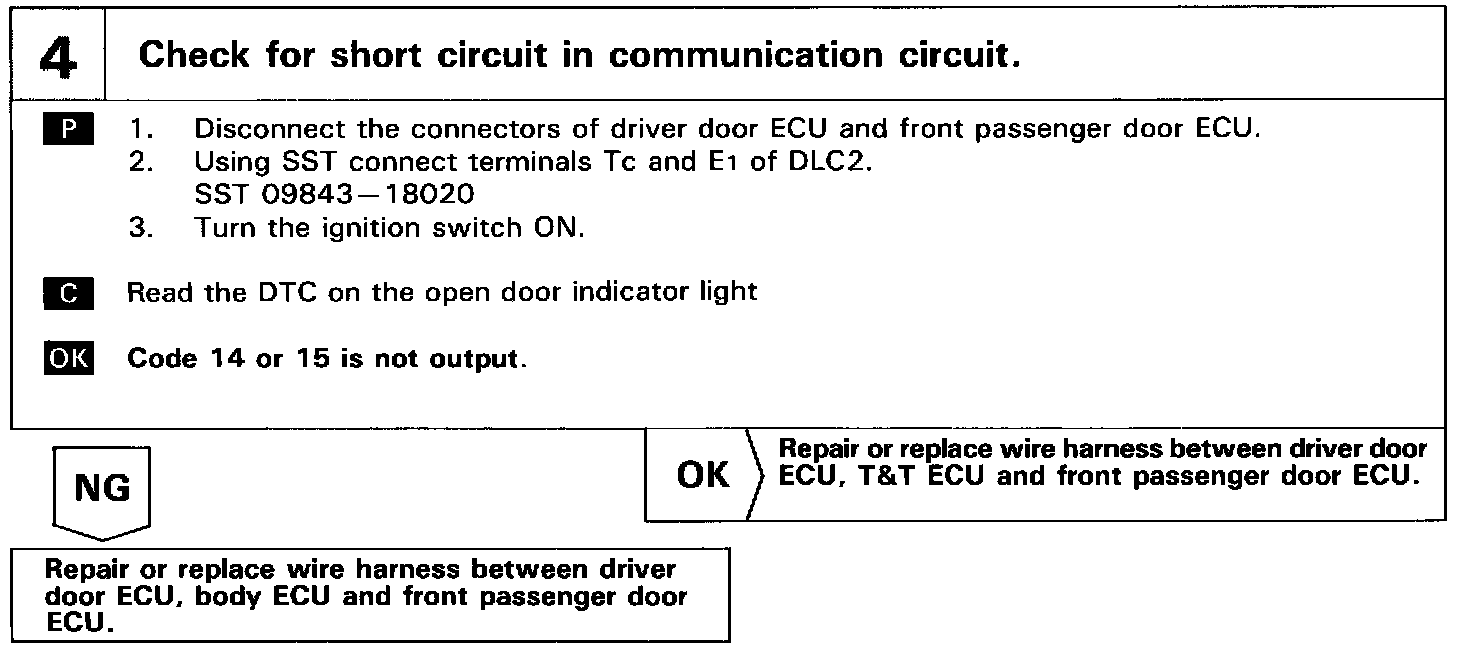

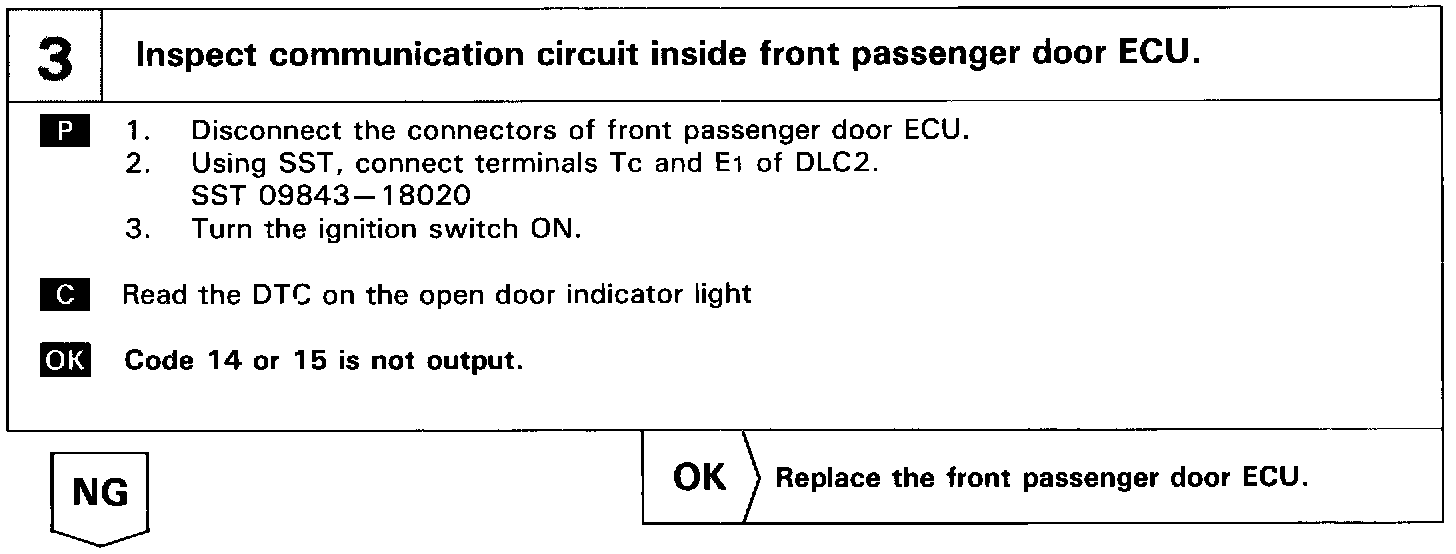

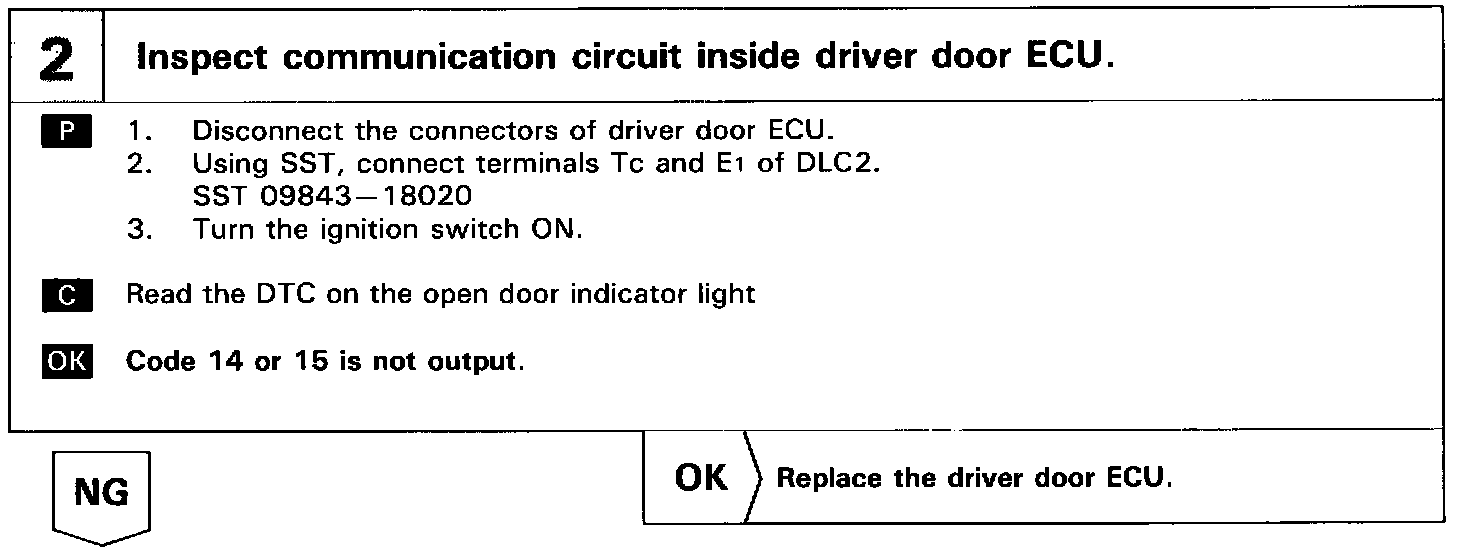

INSPECTION PROCEDURE
