DTC 13





CIRCUIT DESCRIPTION
This code is output when communication from the front passenger door ECU to the body ECU is cut off.

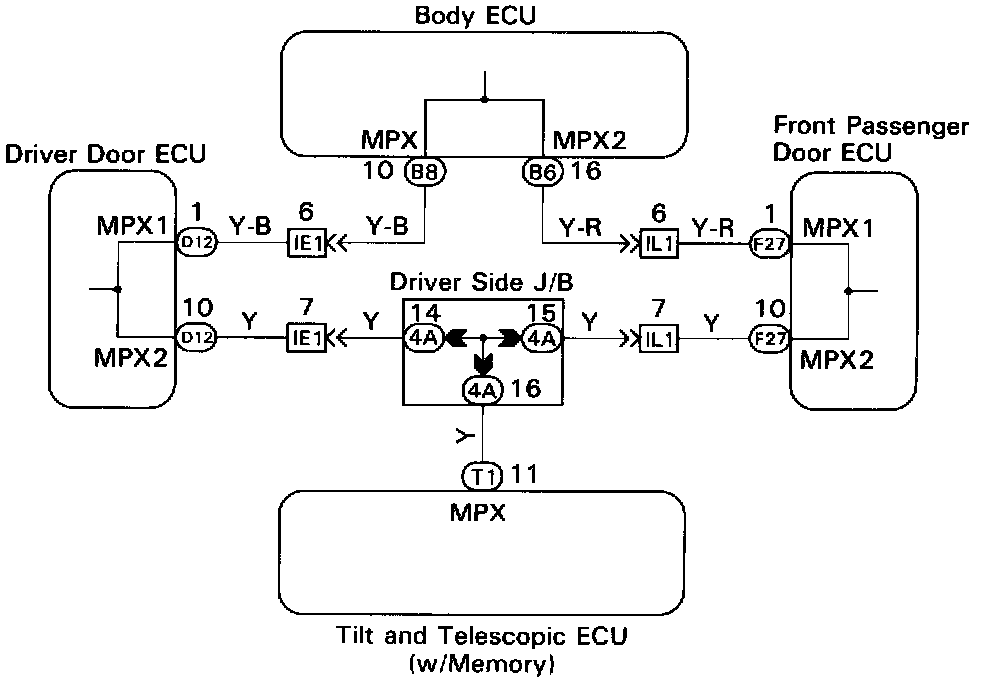

WIRING DIAGRAM

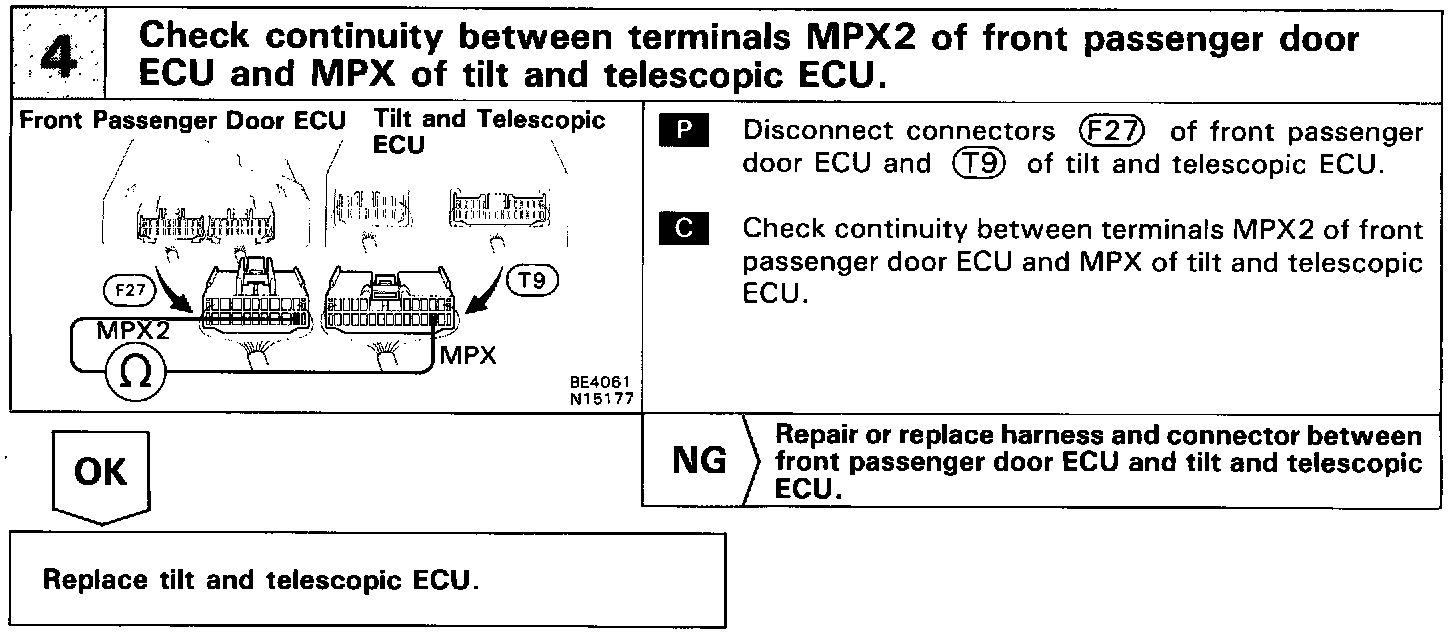

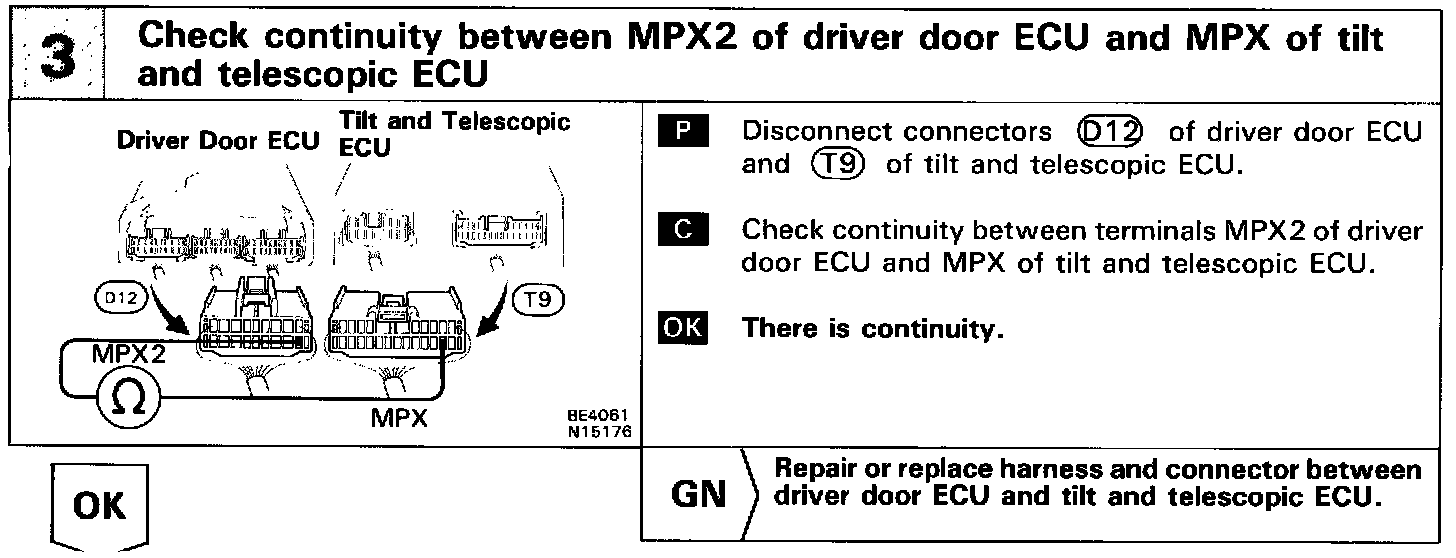

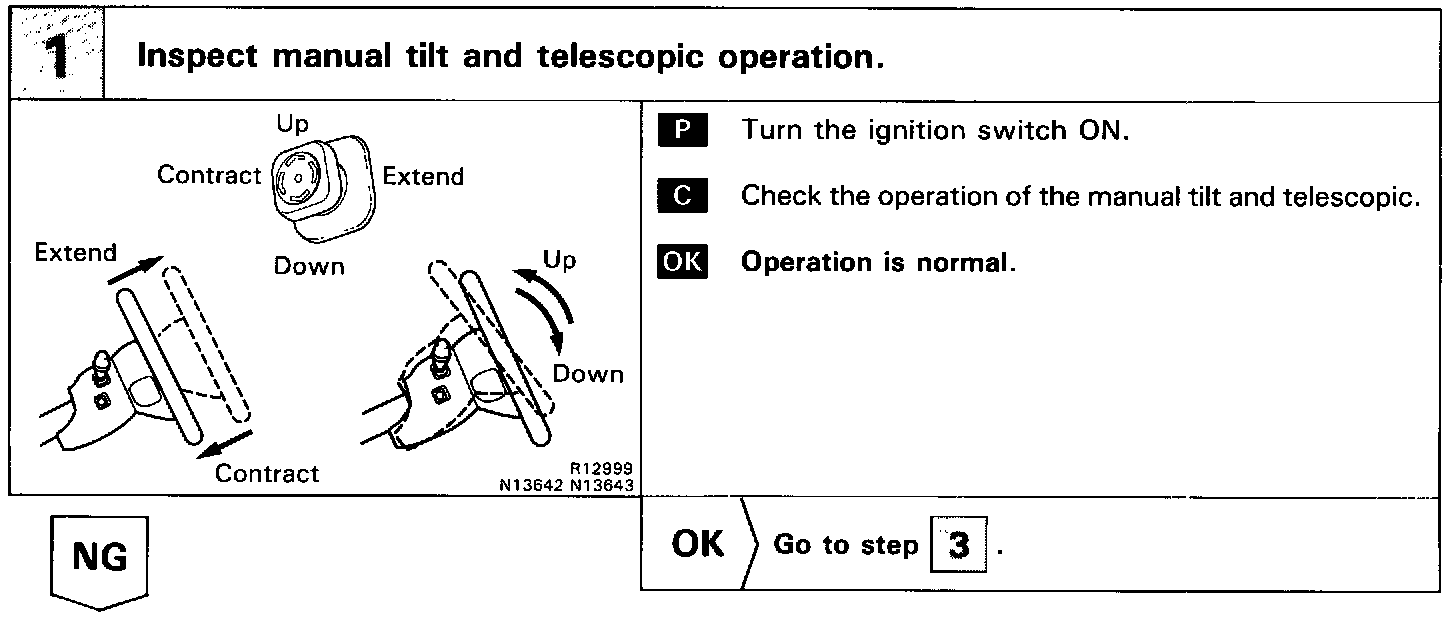

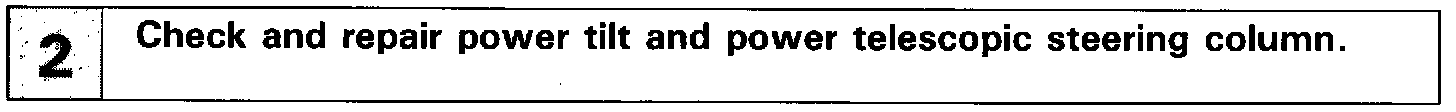

INSPECTION PROCEDURE
