DTC 12

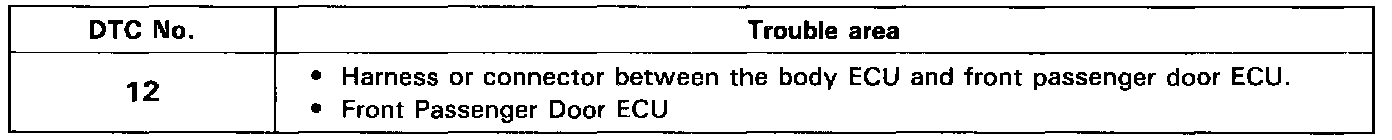

CIRCUIT DESCRIPTION
This code is output when communication from the front passenger door ECU to the body ECU is cut off.

WIRING DIAGRAM

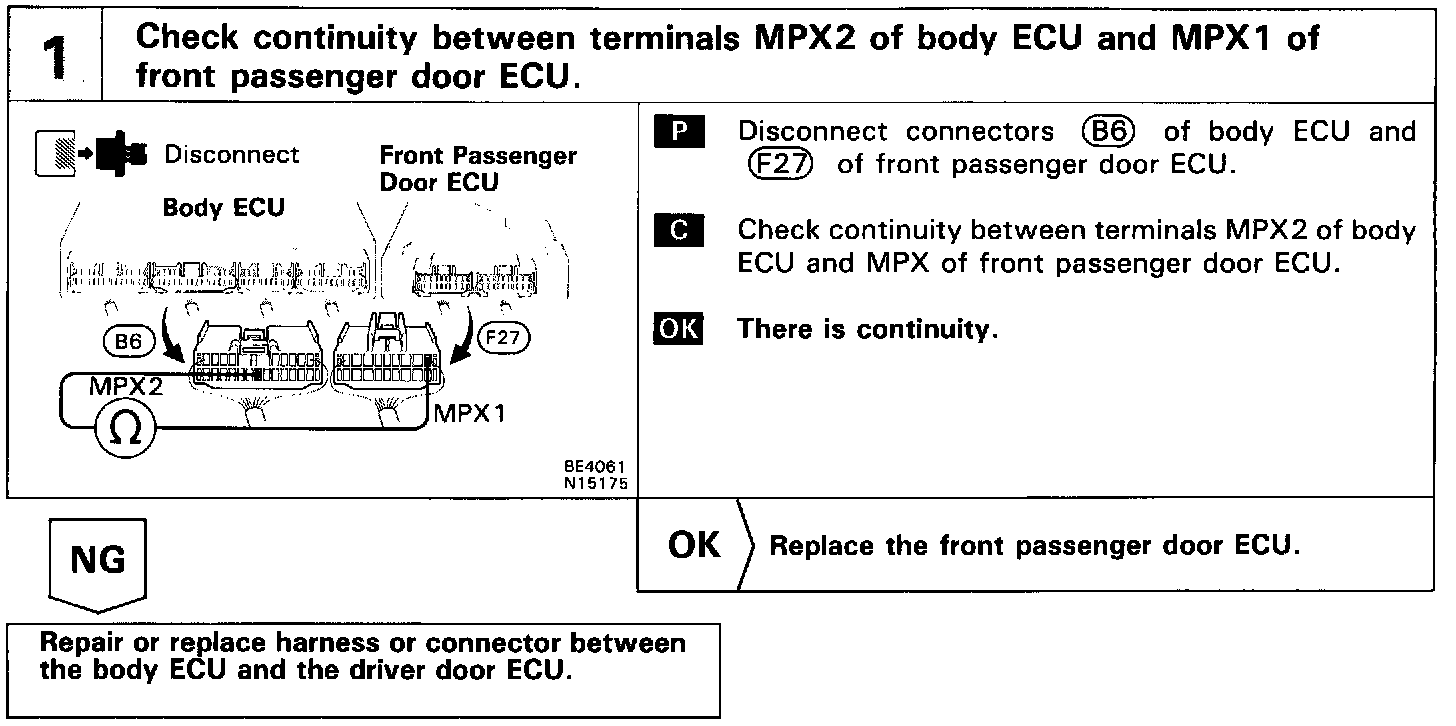

INSPECTION PROCEDURE
