DTC 11

CIRCUIT DESCRIPTION

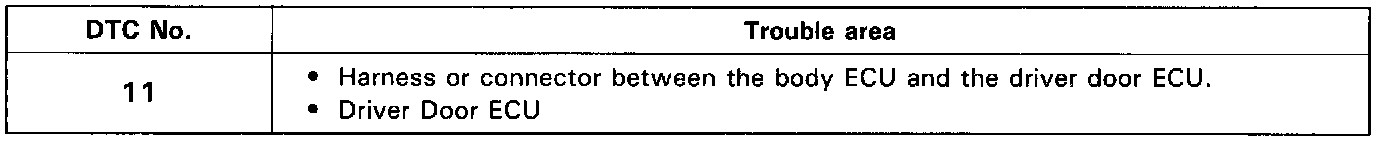

This code is output when communication from the driver door ECU to the body ECU is cut off.

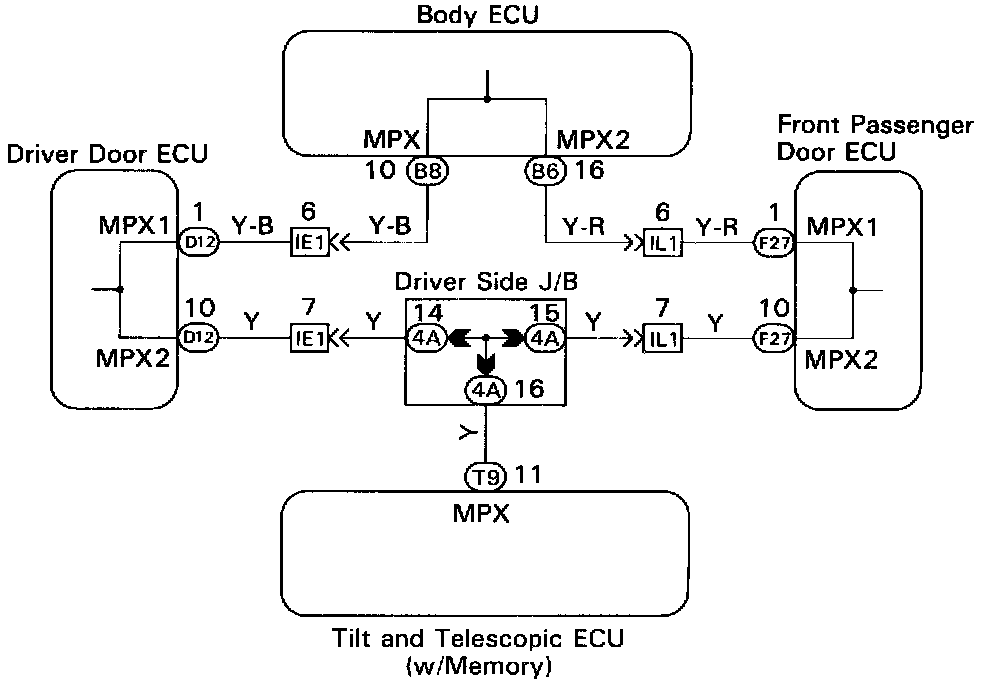

WIRING DIAGRAM

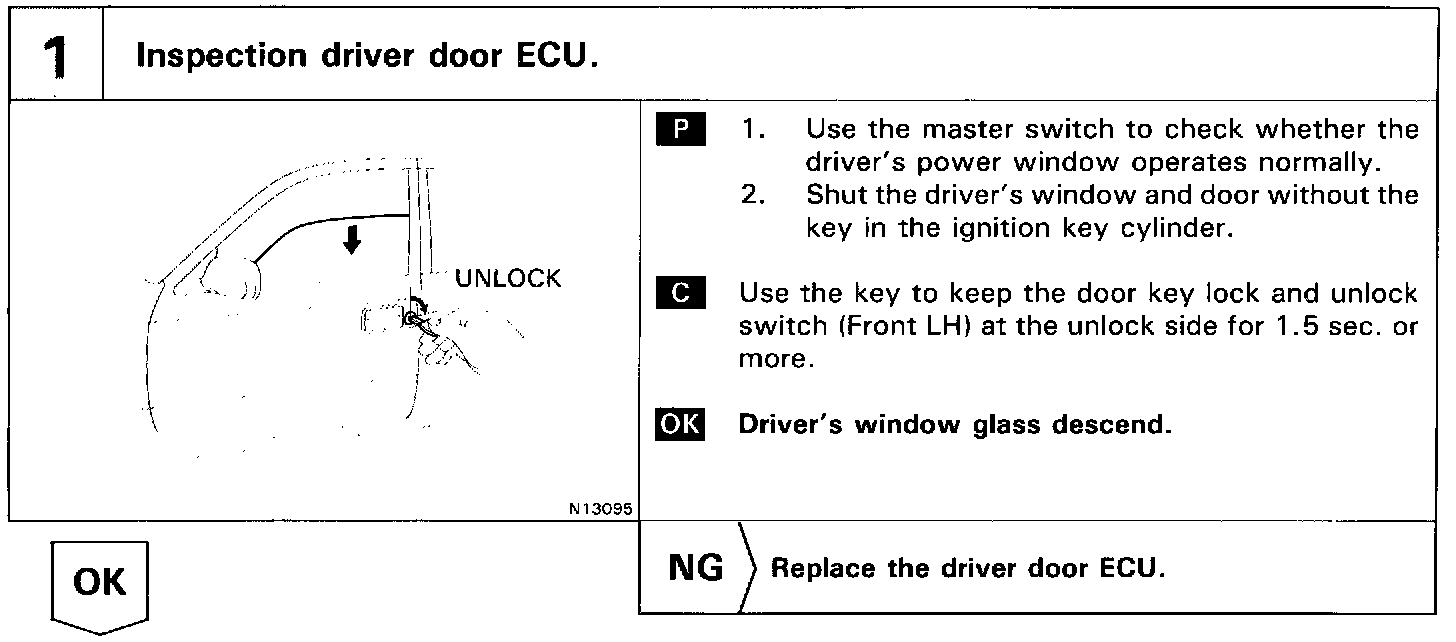

INSPECTION PROCEDURE
