DTC 73

CIRCUIT DESCRIPTION
The squib (LH) circuit consists of the side airbag sensor assembly (LH) and side airbag assembly (LH). It causes the airbag to deploy when the airbag deployment conditions are satisfied.

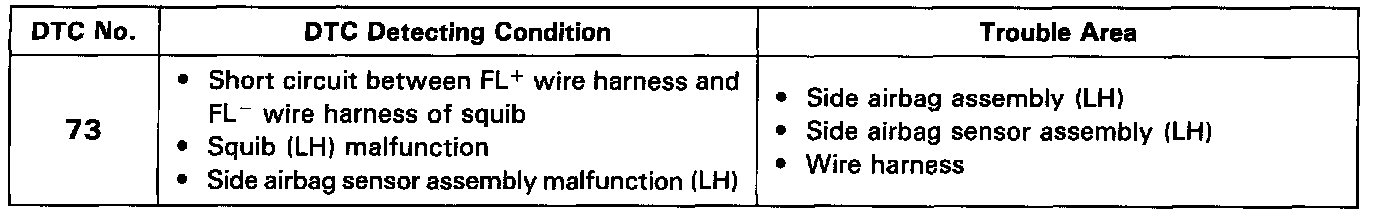

For details of the function of each component, see FUNCTION OF COMPONENTS. DTC 73 is recorded when a short is detected in the squib (LH) circuit.




WIRING DIAGRAM

INSPECTION PROCEDURES




1. Preparation

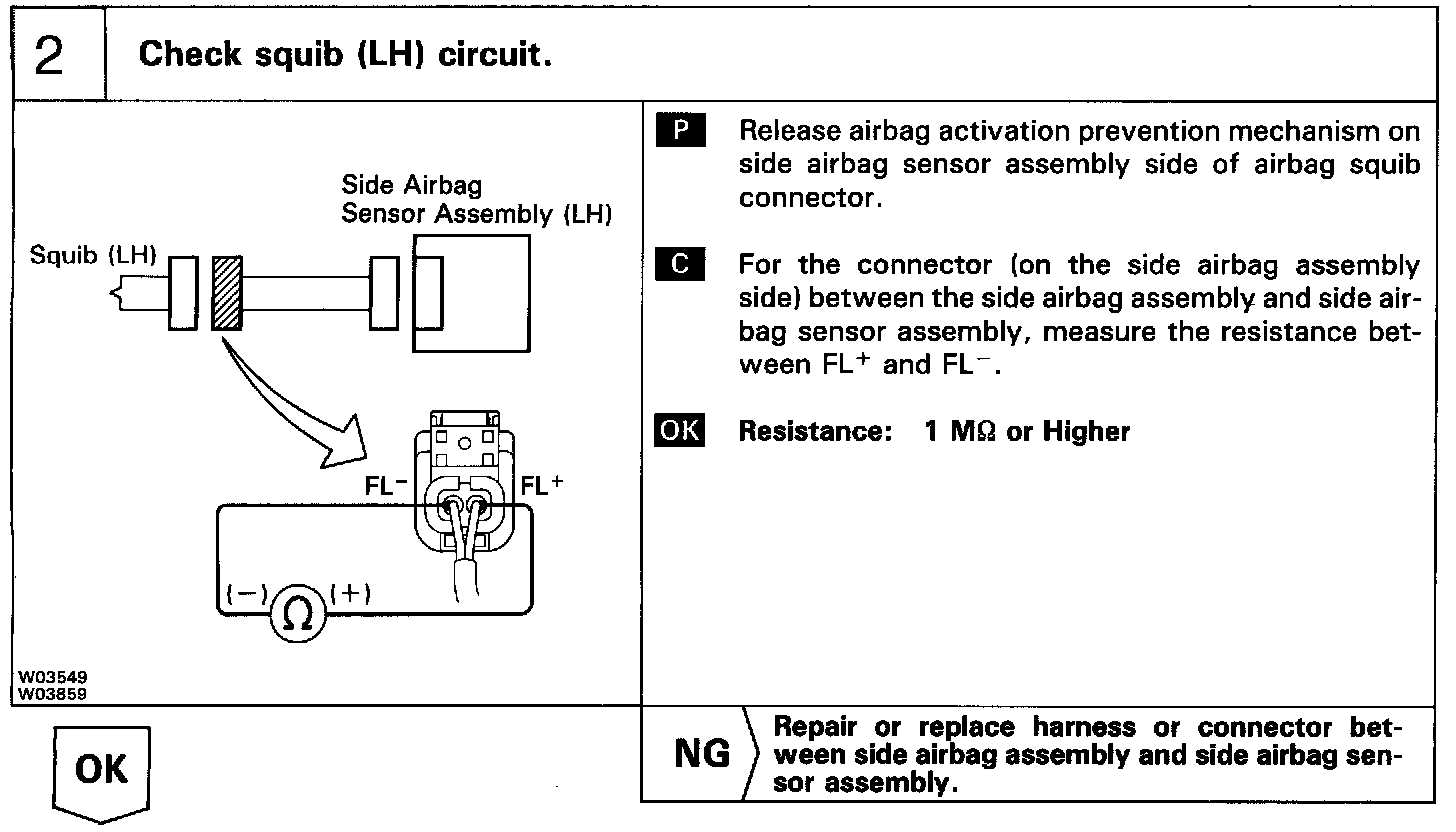

2. Check Squib (LH) Circuit

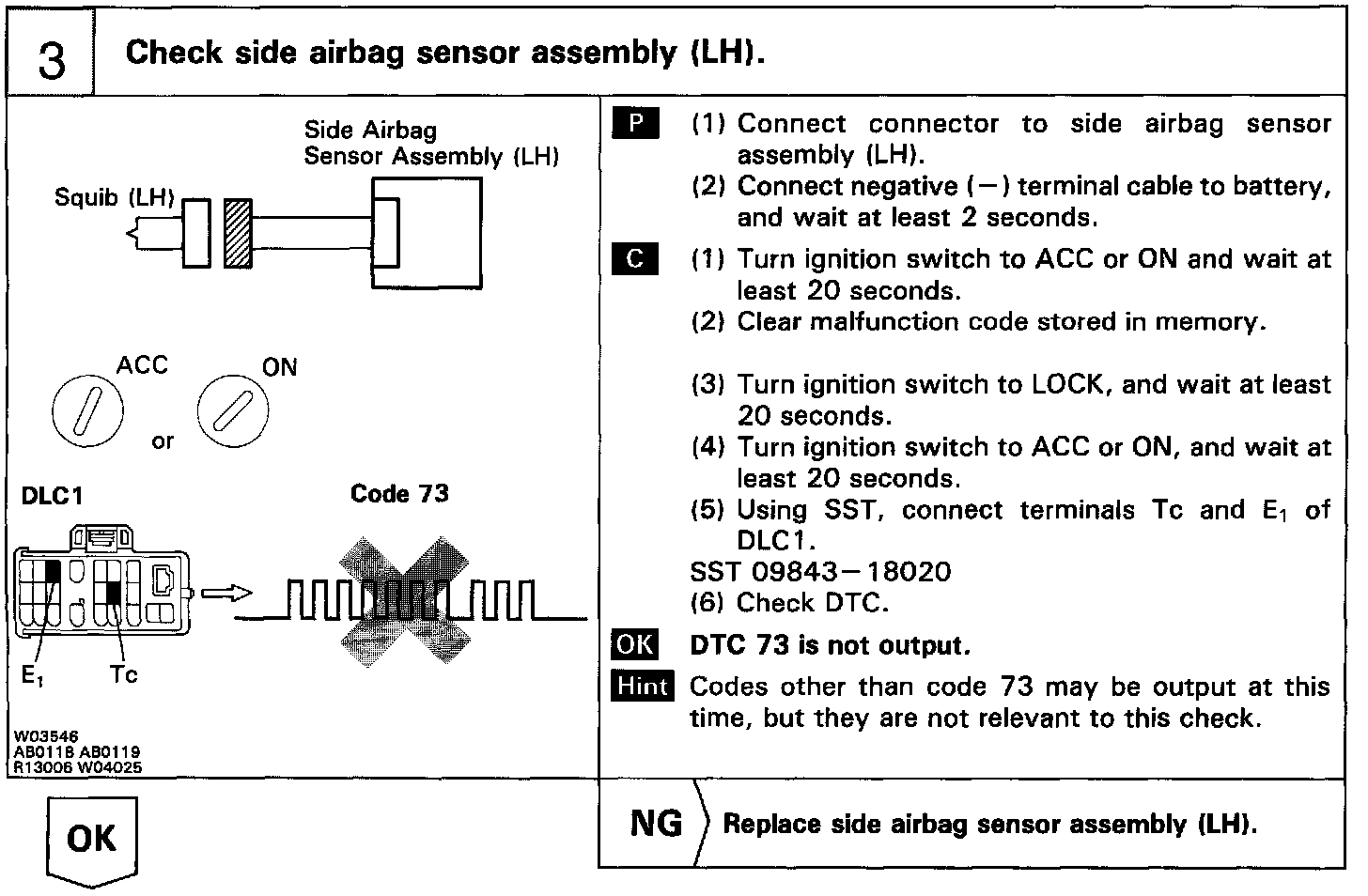

3. Check Side Airbag Assembly (LH)

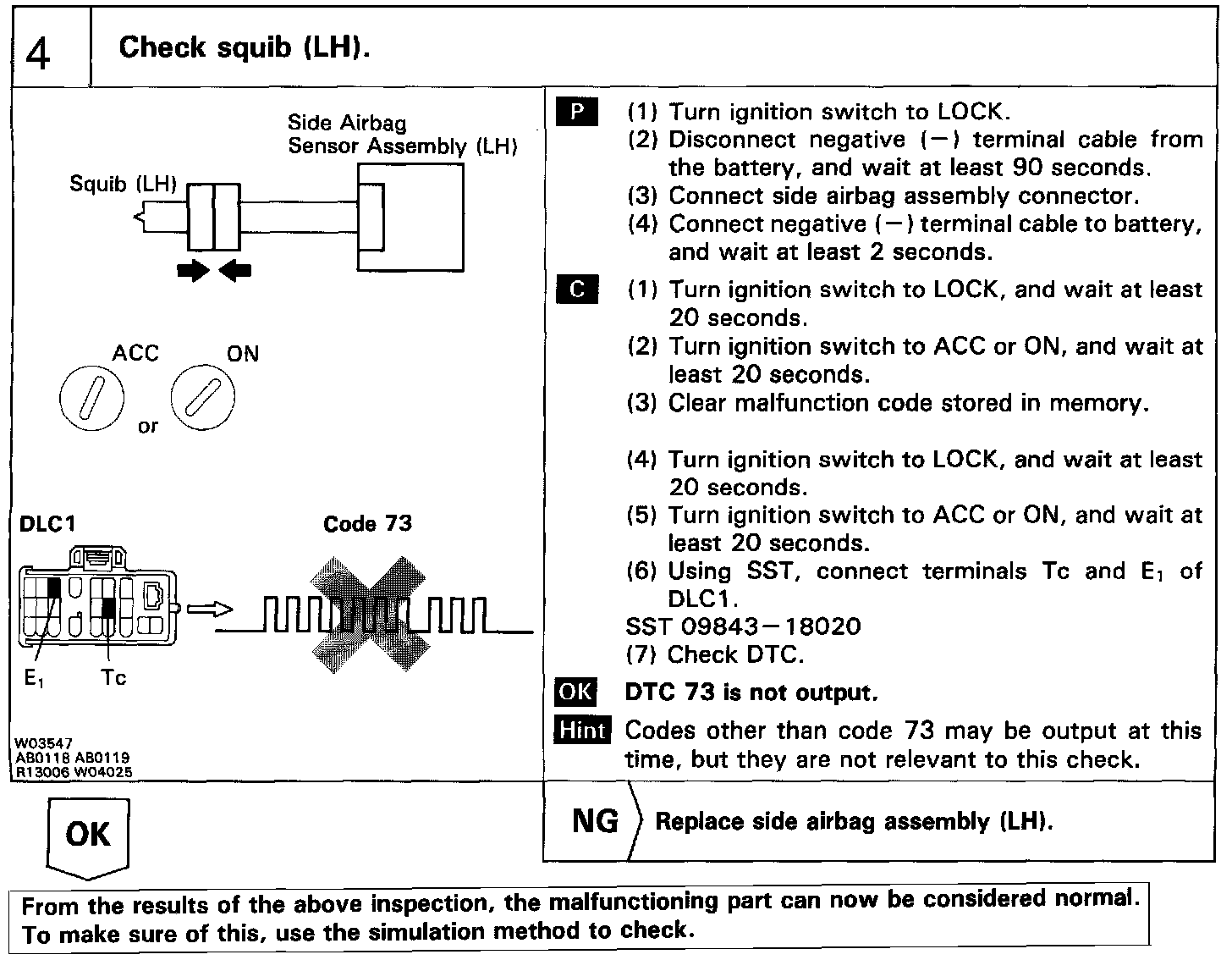

4. Check Squib (LH)
