Side Air Bags

CIRCUIT DESCRIPTION
The squib (RH) circuit consists of the side airbag sensor assembly (RH) and side airbag assembly (RH). It causes the airbag to deploy when the airbag deployment conditions are satisfied.

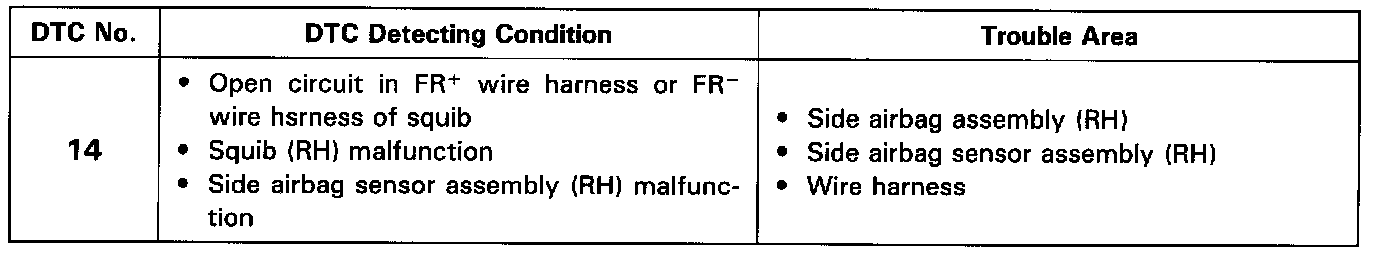

For details of the function of each component, see FUNCTION OF COMPONENTS. DTC 14 is recorded when an open is detected in the squib circuit.

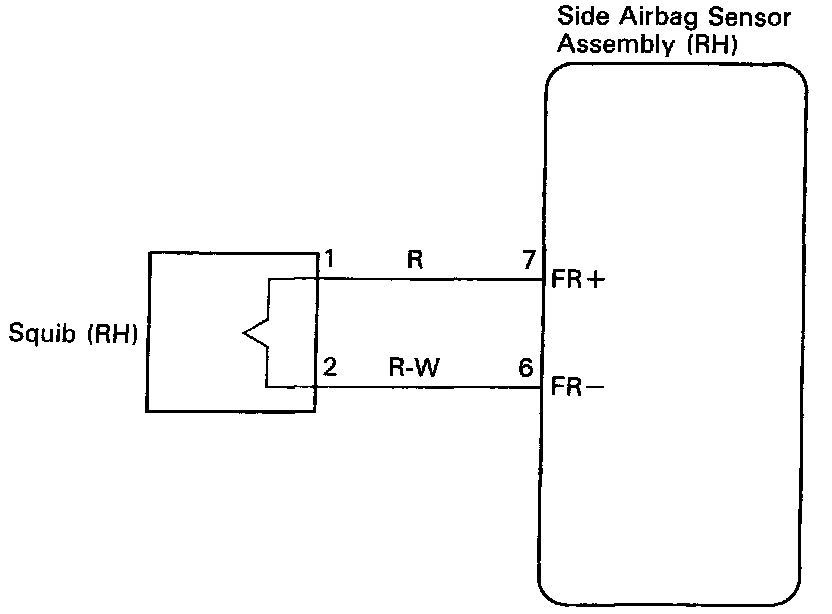

WIRING DIAGRAM

INSPECTION PROCEDURES




1. Preparation

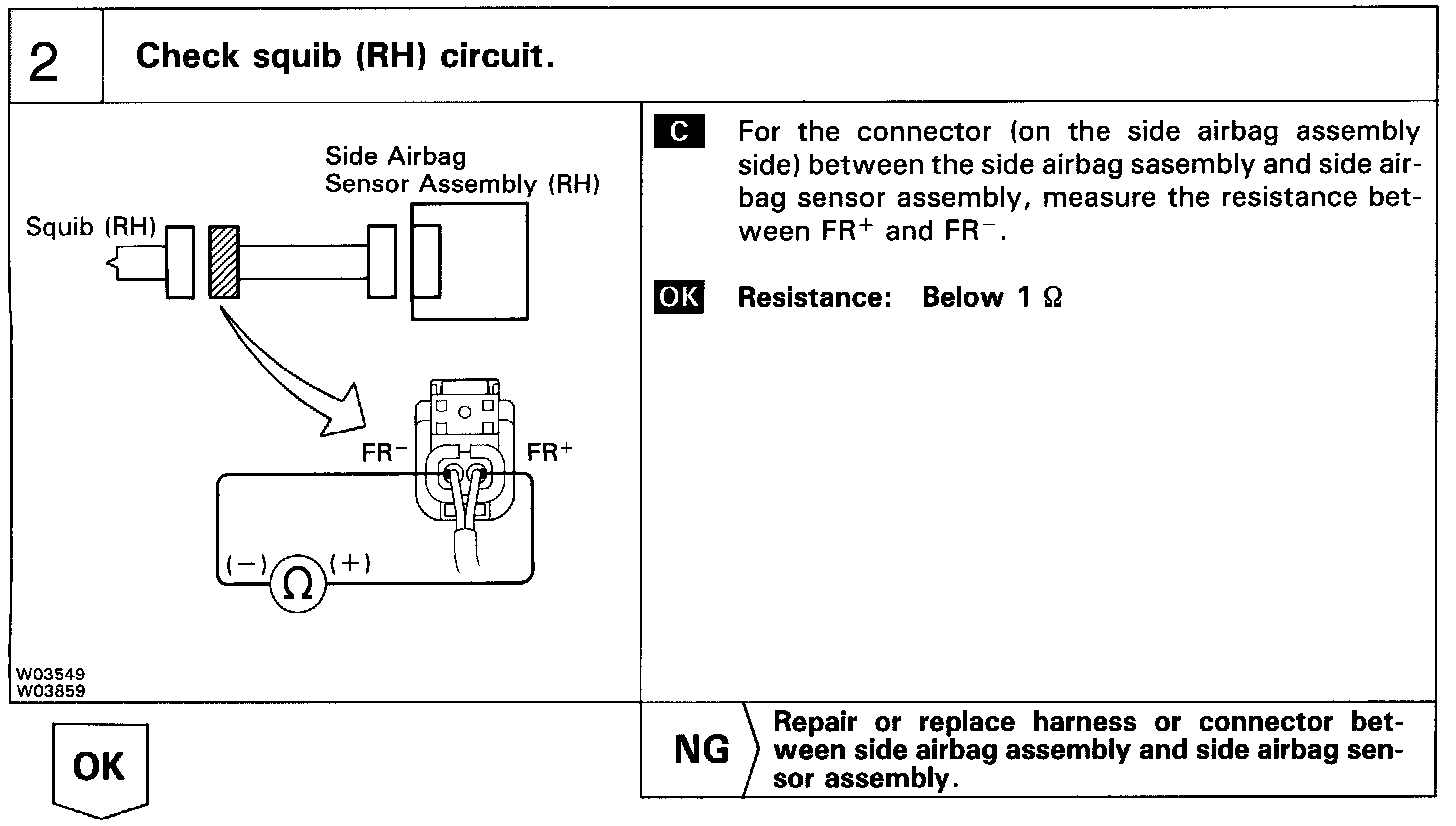

2. Check Squib (RH) Circuit

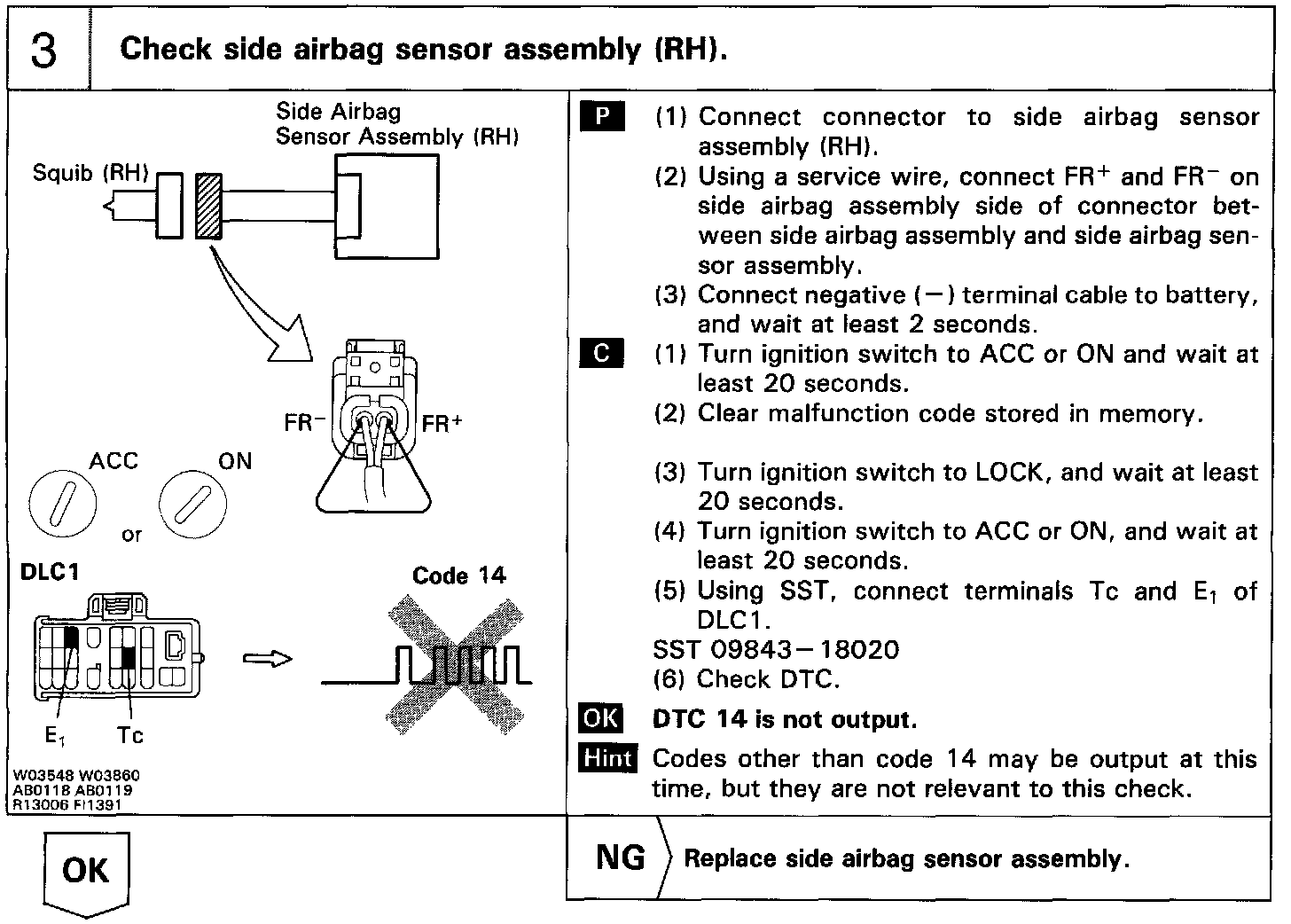

3. Check Side Airbag Assembly (RH)

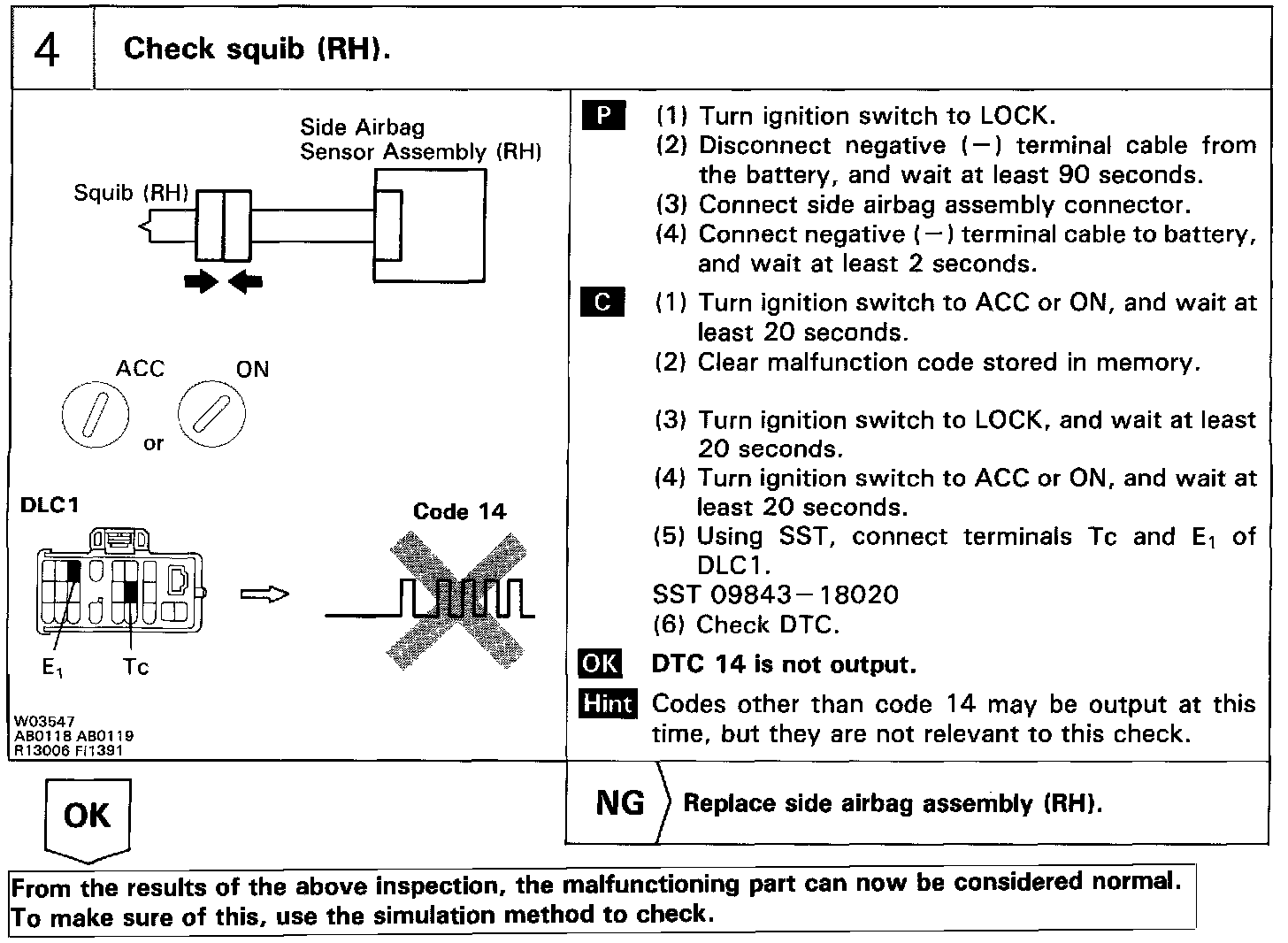

4. Check Squib (RH)
