Front Air Bags

CIRCUIT DESCRIPTION
The squib circuit consists of the airbag sensor assembly spiral cable steering wheel and front passenger airbag assembly It causes the SRS to deploy when the SRS deployment conditions are satisfied.

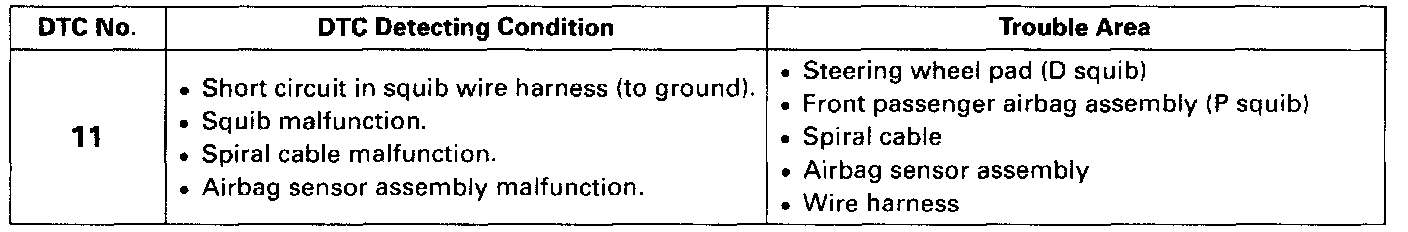

For details of the function of each component, see FUNCTION OF COMPONENTS. DTC 11 is recorded when ground short is detected in the squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE




1. Preparation

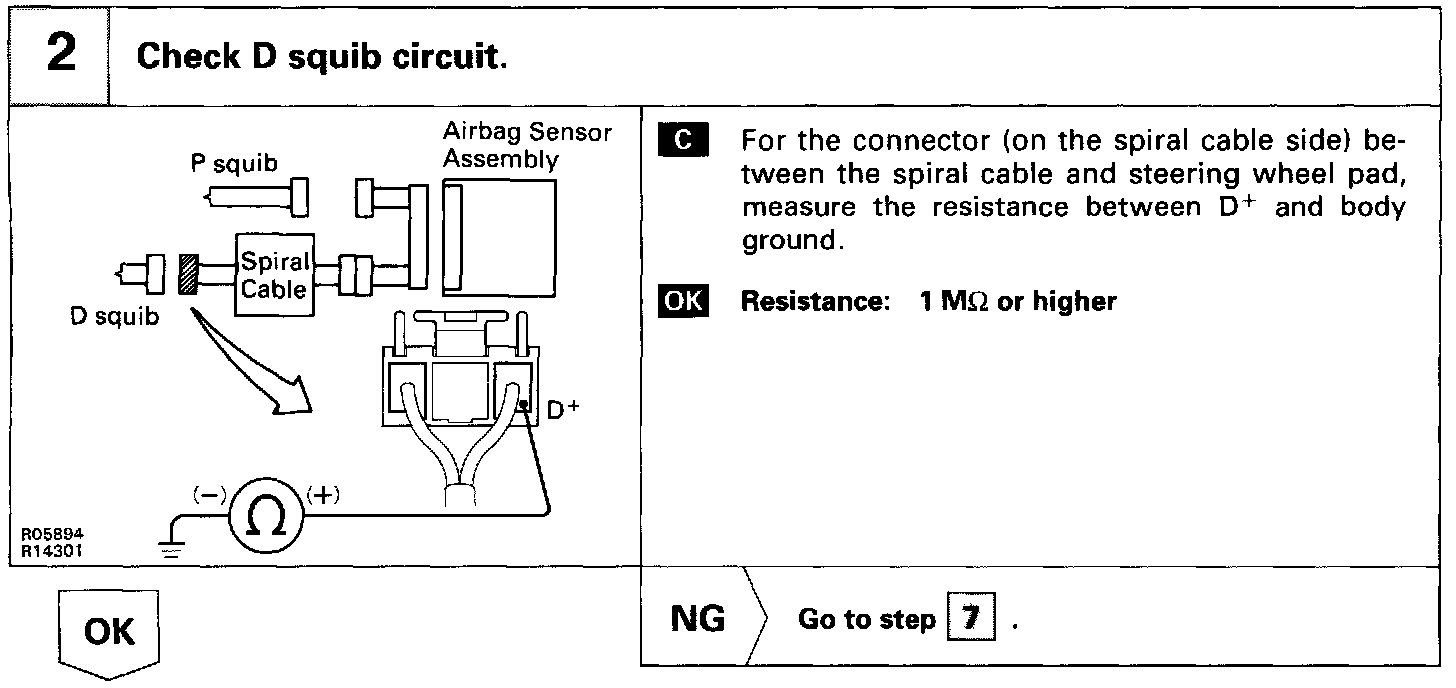

2. Check D Squib Circuit

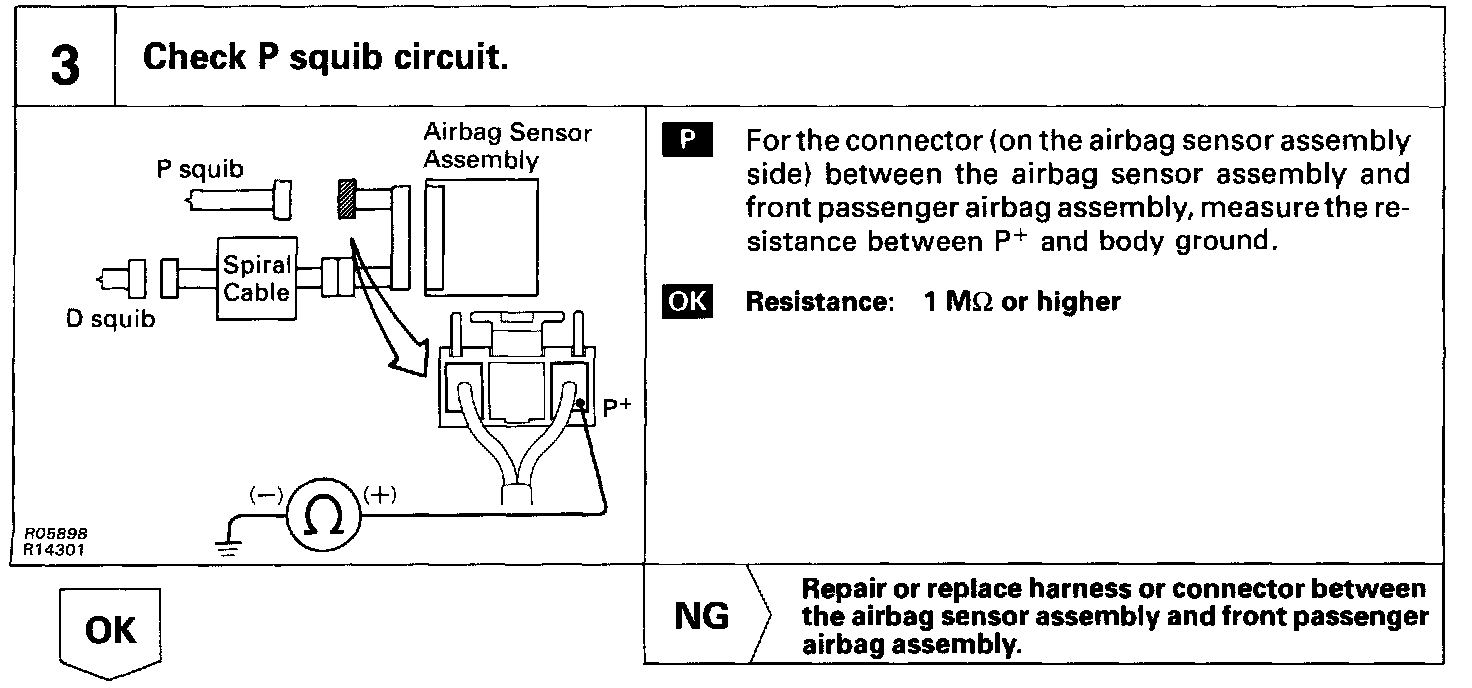

3. Check P Squib Circuit

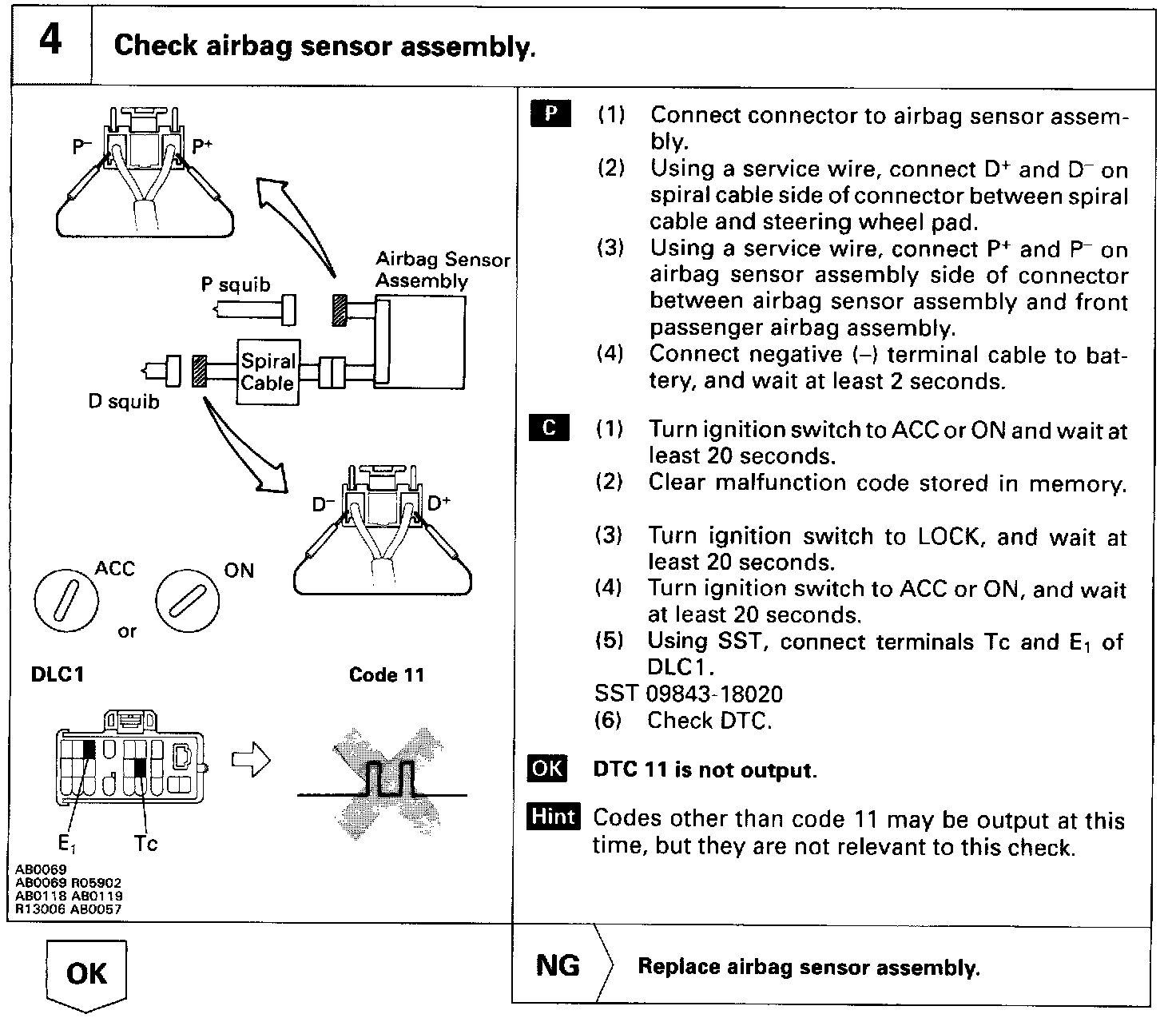

4. Check Airbag Sensor Assembly




5. Check D Squib

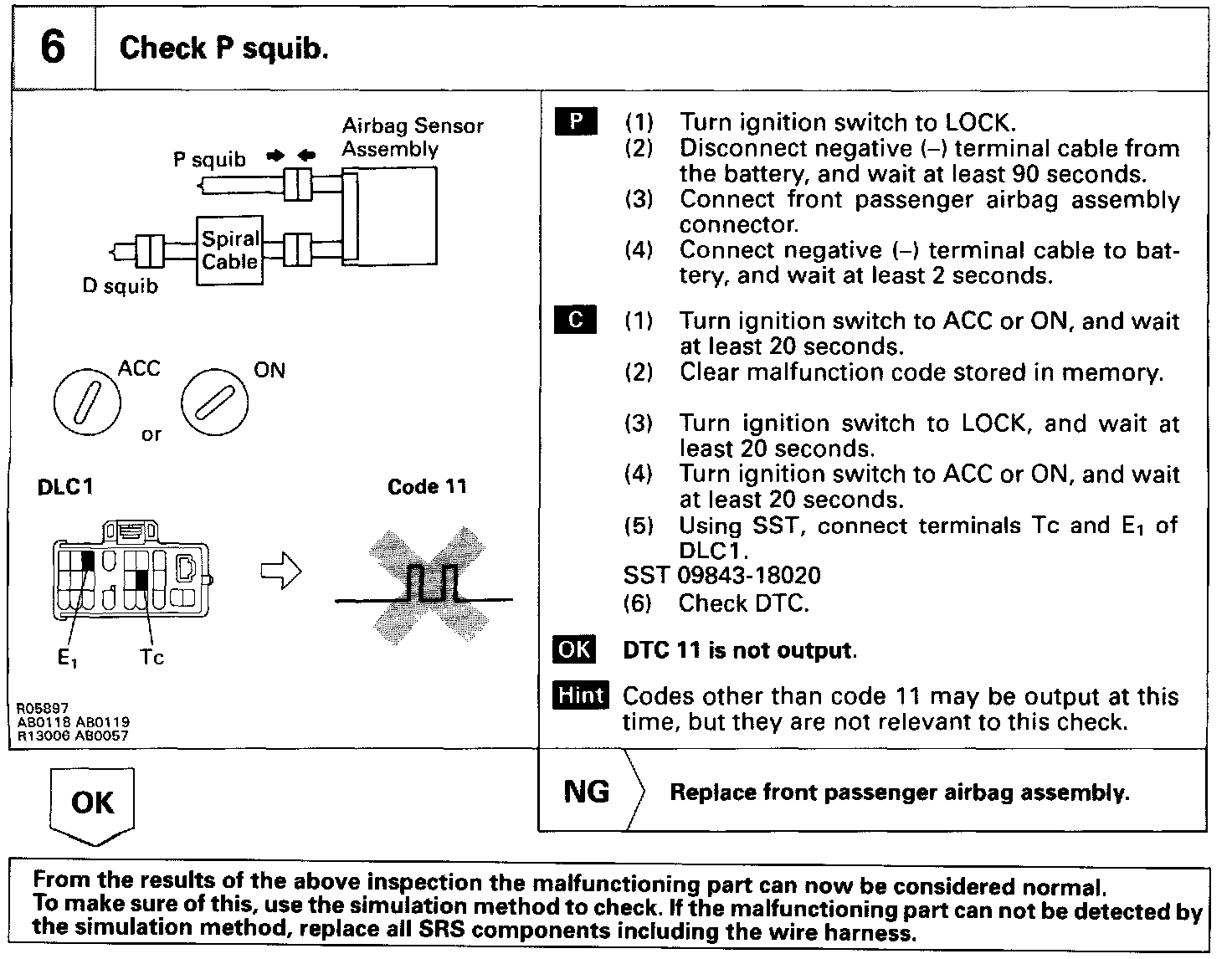

6. Check P Squib

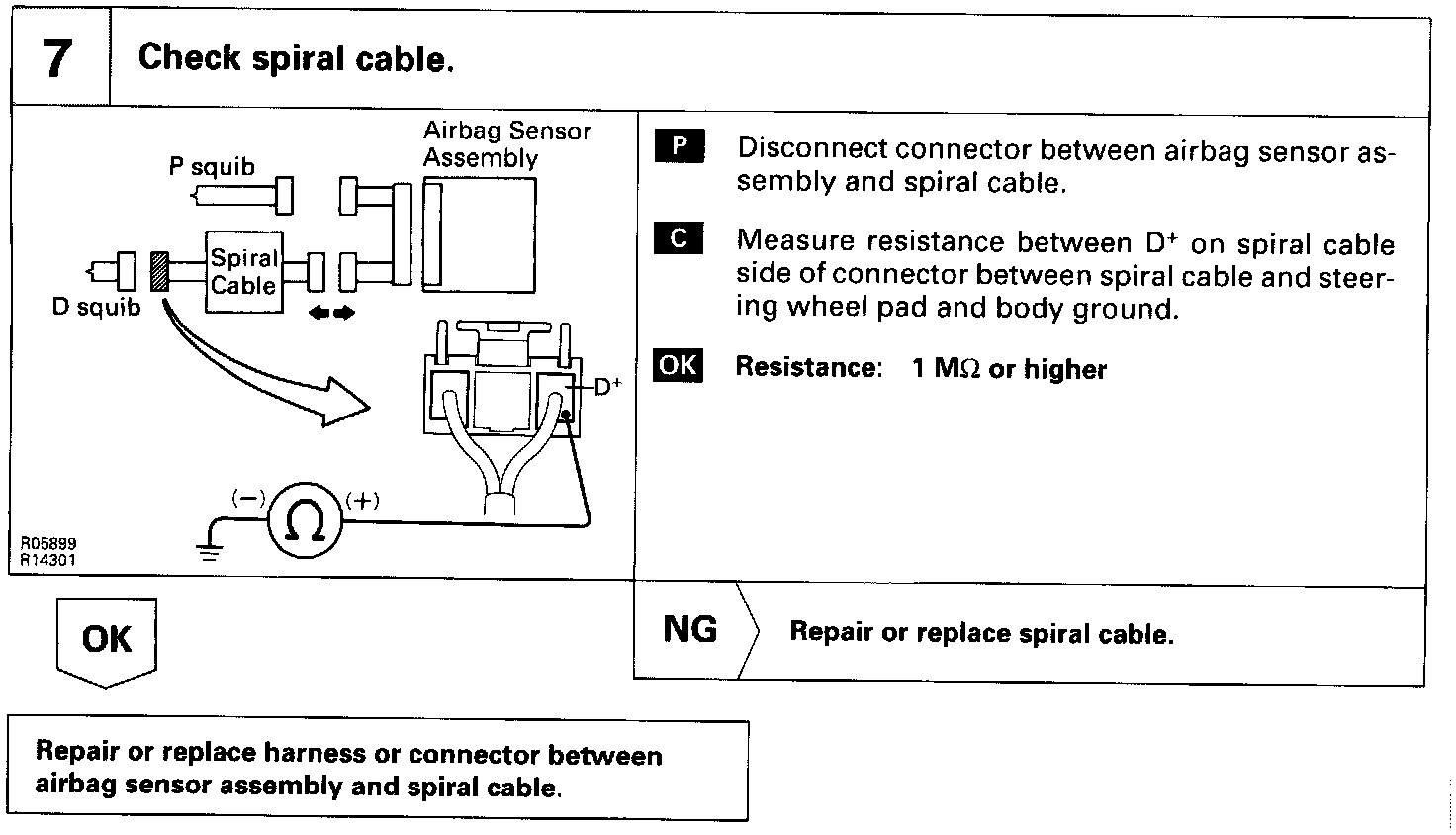

7. Check Spiral Cable
