DTC 52

Code 52: Brake Fluid Level Warning Switch Circuit, DTC Chart:

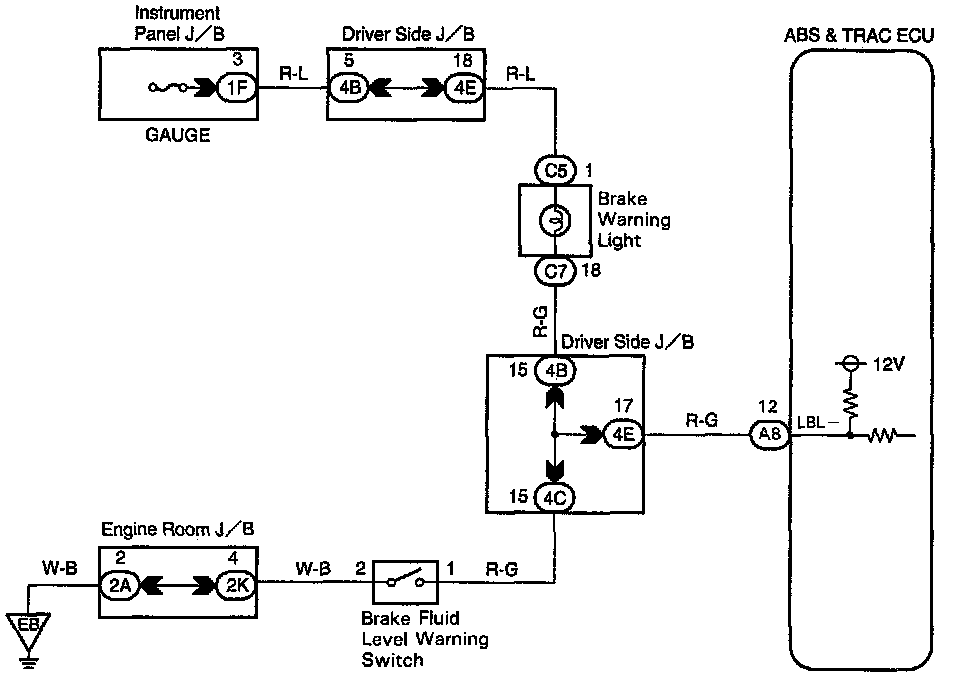

Brake Fluid Level Warning Switch Circuit, Wiring Diagram:

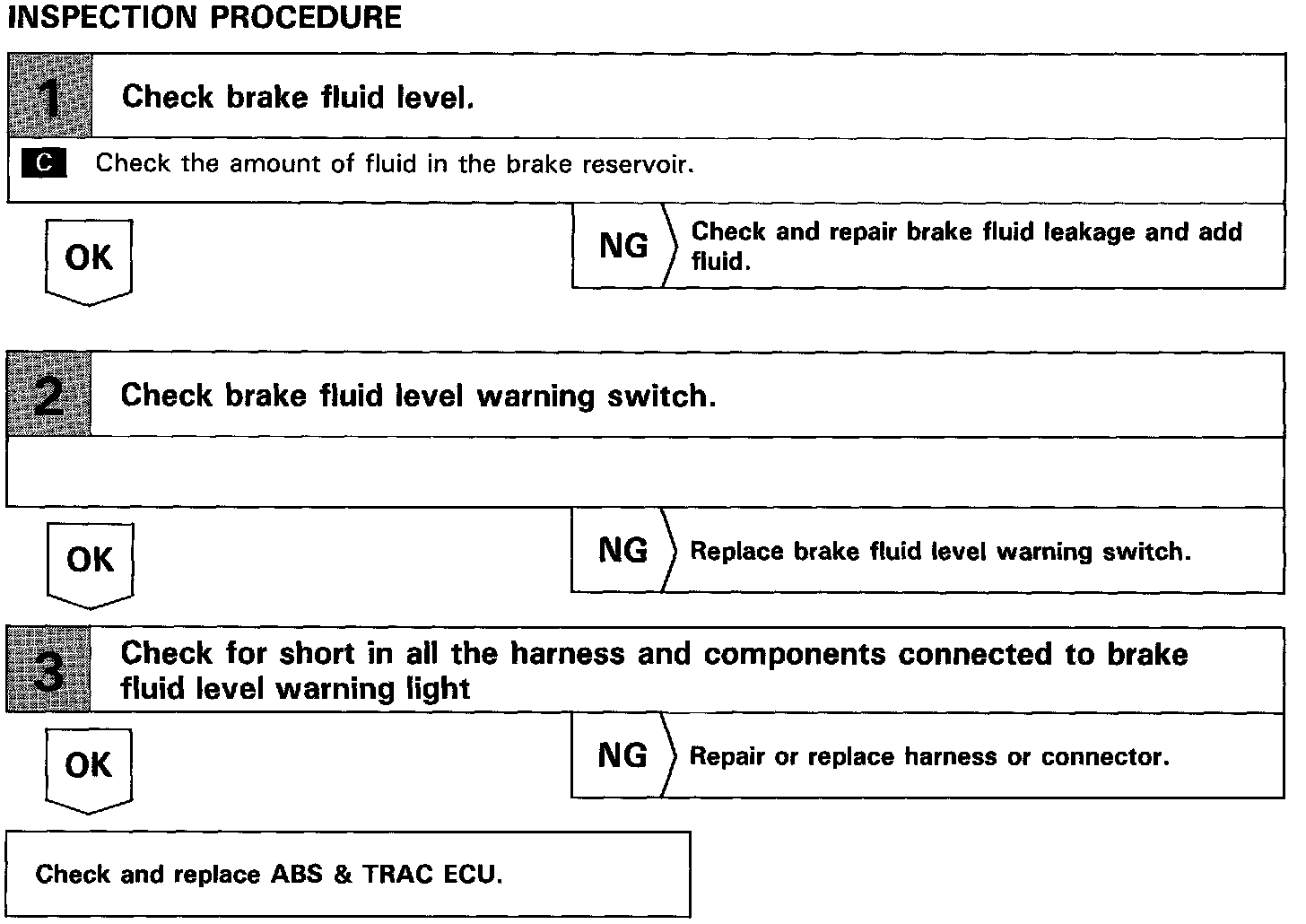

Brake Fluid Level Warning Switch Circuit, Inspection Procedure:

CIRCUIT DESCRIPTION
The Brake Fluid Level Warning Switch sends the appropriate signal to the ECU when the brake fluid level drops.

NOTE: Depress the Parking Brake Pedal also turns on the Brake Warning Light but does not diagnose DTC No. 52.
