LR Door

LOCATION

INSPECTION




Rear Left Side Door:

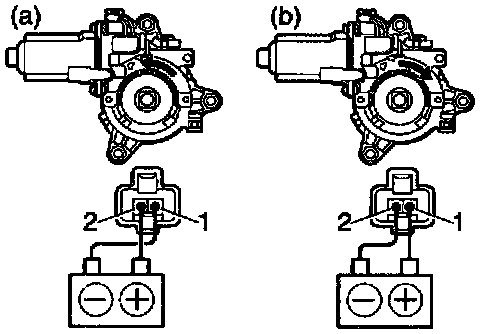

a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns counterclockwise.
b. Reverse the polarity, check that the motor turns clockwise.
If operation is not as specified, replace the motor.
