Power Window Switch (Master Switch)

LOCATION

INSPECTION




1. INSPECT POWER WINDOW MASTER SWITCH CONTINUITY

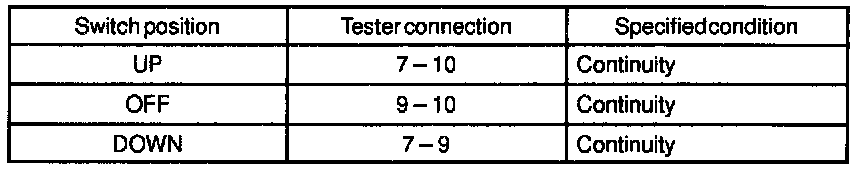

Front Driver's Switch (Window unlock):

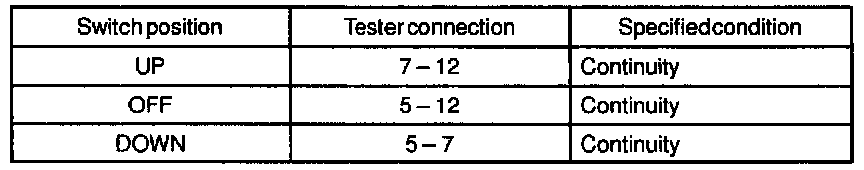

Front Driver's Switch (Window lock):

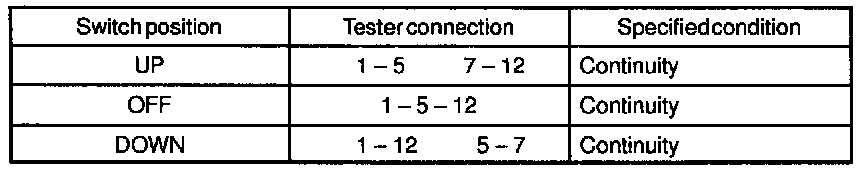

Front Passenger's Switch (Window unlock):

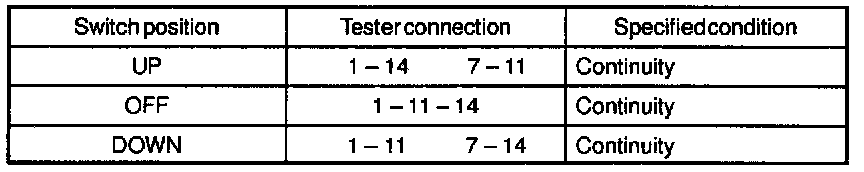

Front Passenger's Switch (Window lock):

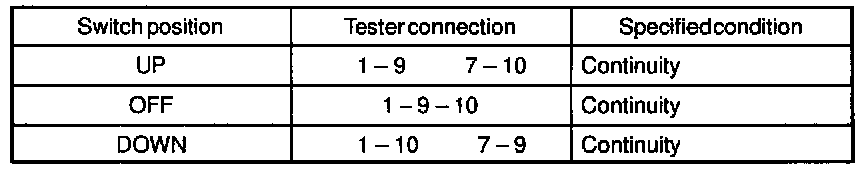

Rear Left Switch (Window unlock):

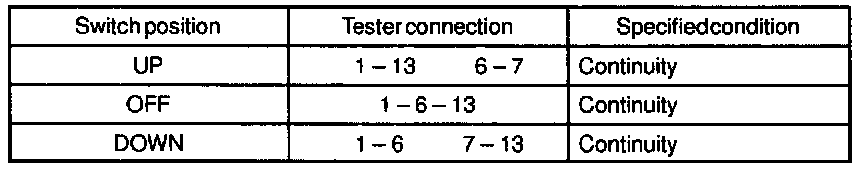

Rear Left Switch (Window lock):

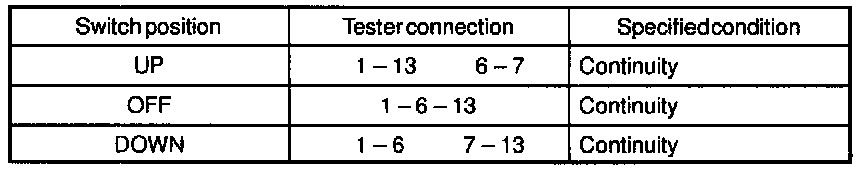

Rear Right Switch (Window unlock):

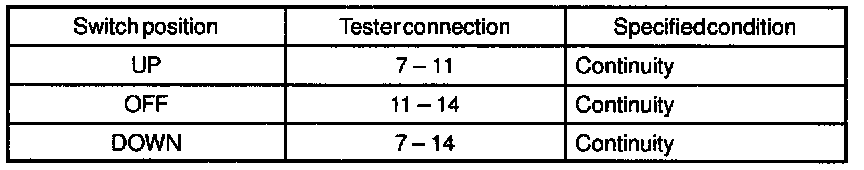

Rear Right Switch (Window lock):
If continuity is not as specified, relace the master switch.
