LF Door

LOCATION

INSPECTION

Driver's Door:




a. Disconnect the connector from the master switch.
b. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 13 on the wire harness side connector and raise the window to full closed position.

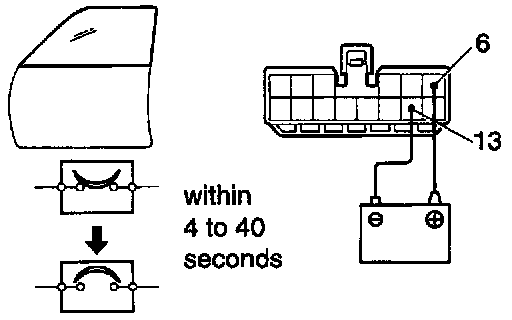

c. Continue to apply voltage, check that there is a circuit breaker operation noise within approximately 4 to 40 seconds.

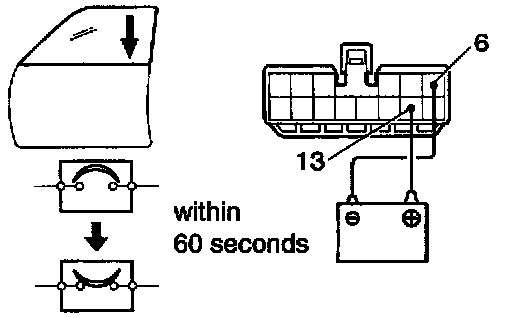

d. Reverse the polarity, check that the window begins to descend within approximately 60 seconds.
If operation is not as specified, replace the motor.
