Home >> Lexus >> 1997 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Matrix Chart of Problem Symptoms >> Electronic Circuits

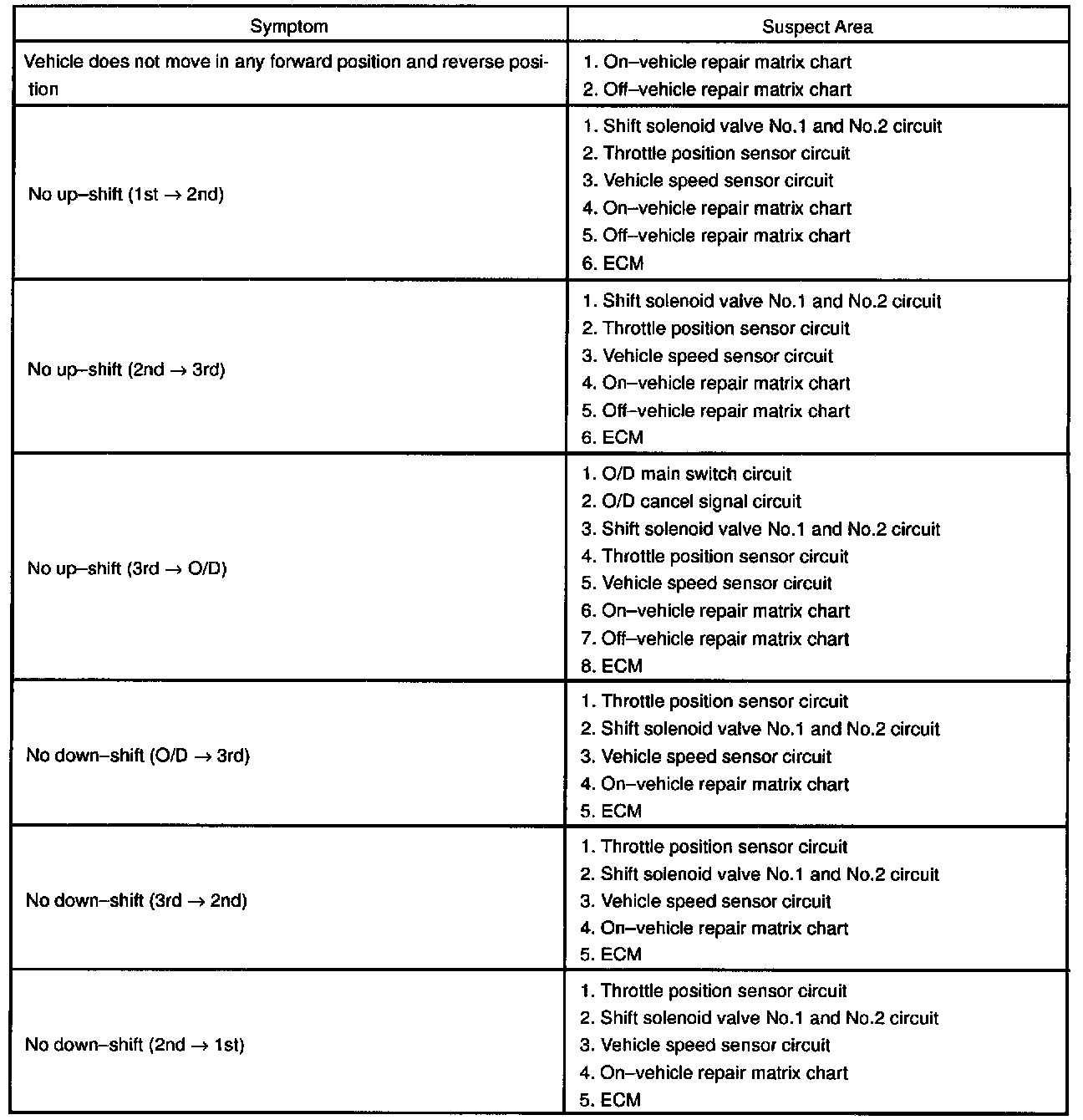

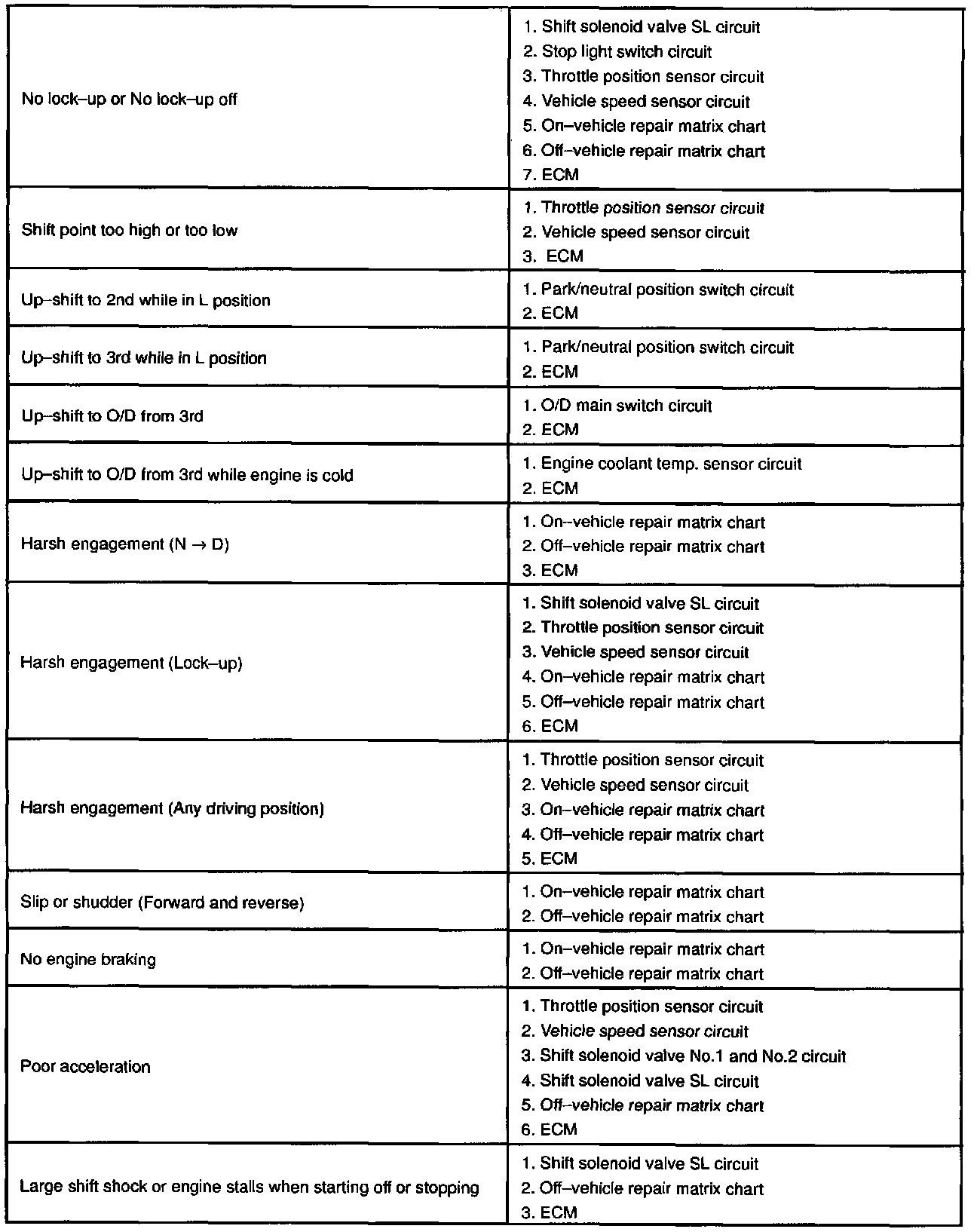

Electronic Circuits
