Manual Shifting Test

MANUAL SHIFTING TEST

HINT: With this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transaxle.

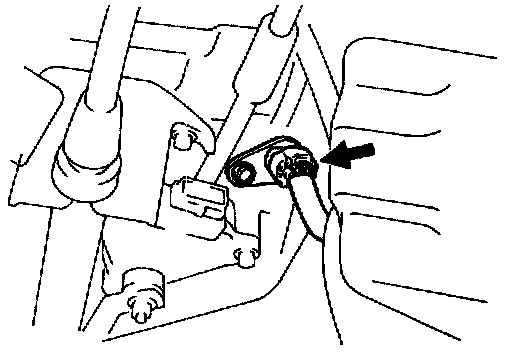

1. DISCONNECT SOLENOID WIRE





2. INSPECT MANUAL DRIVING OPERATION

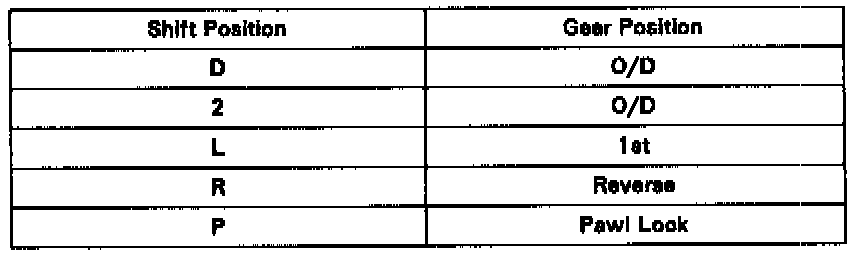

Check that the shift and gear positions correspond with the table above.


HINT: If the gear positions L, 2 and D position are difficult to distinguish. do the following road test.
- While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.

If any abnormality is found in the above test. the problem is in the transaxle itself.
3. CONNECT SOLENOID WIRE
4. CANCEL OUT DTC
