A541E A/T - Production Modifications

TRANSMISSION & CLUTCH
TC004-97

October 24, 1997

Title:
OIL PAN, DIP STICK & C1 CLUTCH ON A541E

Models:
'97 ES 300

Introduction
The following production changes have occurred on the A541 E transaxle:

1. The oil pan and dipstick have been redesigned for increased oil capacity.

2. The C1 clutch has been changed for improved durability.

Transmission Production Change Information

A/T MODEL A/T SERIAL NO.
A541E E0619902-

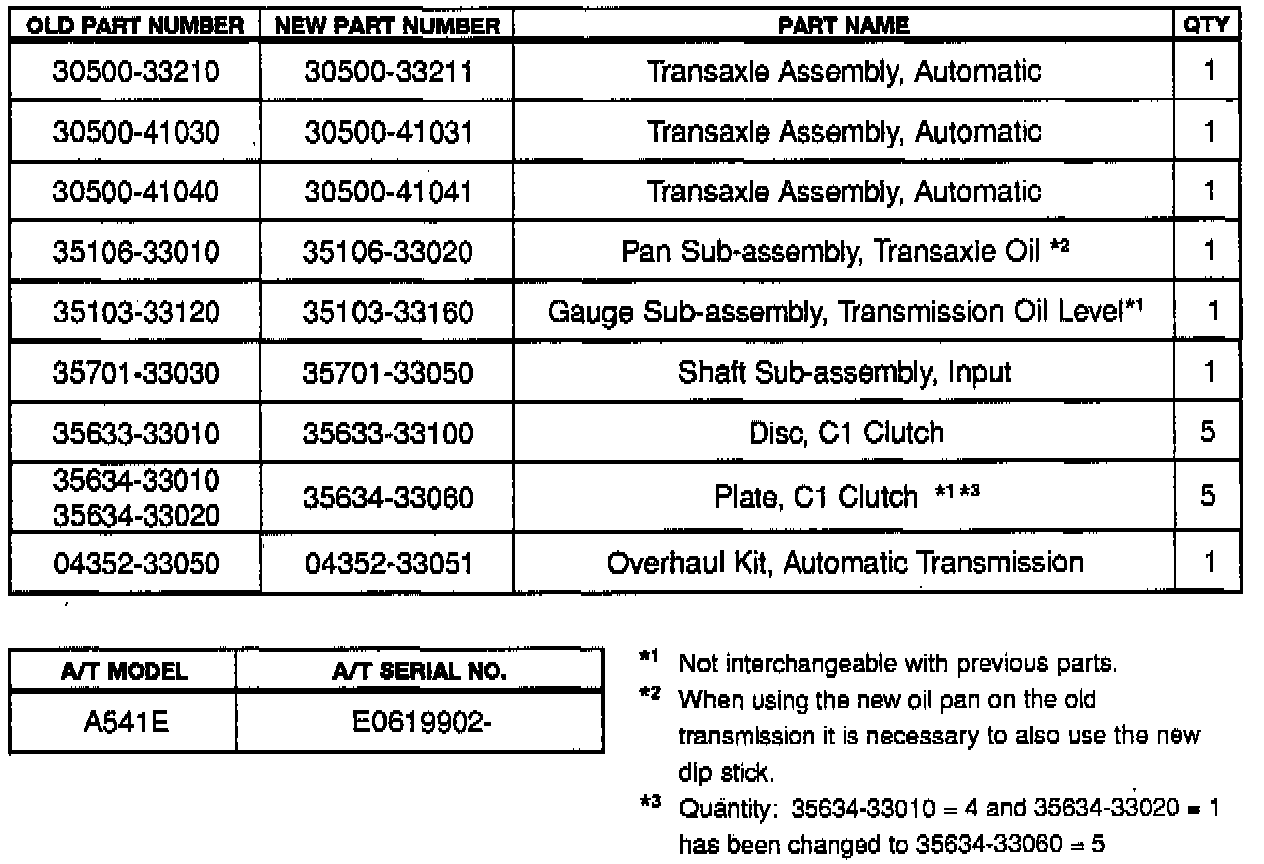

Parts Information

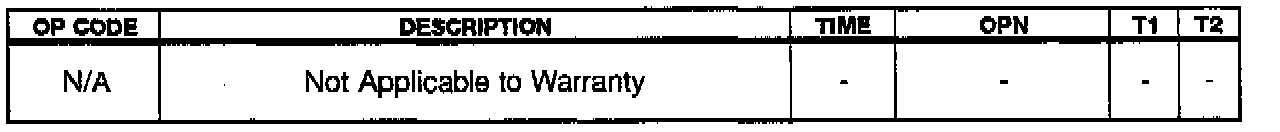

Warranty Information

Details of Production Change

1. Transaxle Oil Pan





A. The Oil Pan depth has been increased as indicated by dimensions A and B (illustration and table).

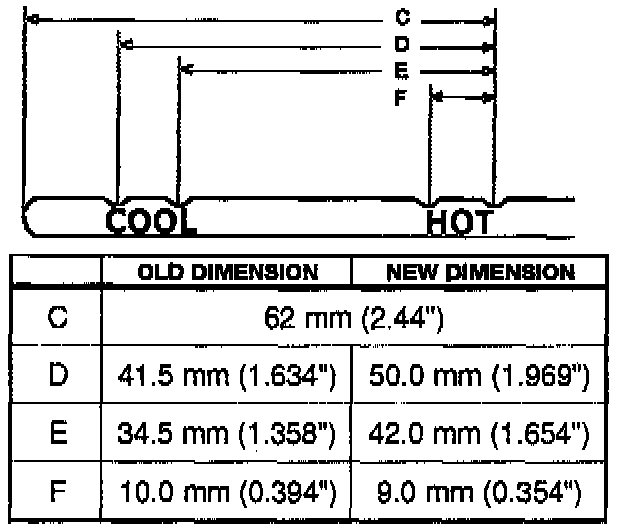

B. With the oil pan change, the oil level gauge (dip stick) has been revised.

2. Forward Multiple Disc Clutch Assembly.





A. C1 clutch plate thickness has been increased to 2.0 mm (0.078").

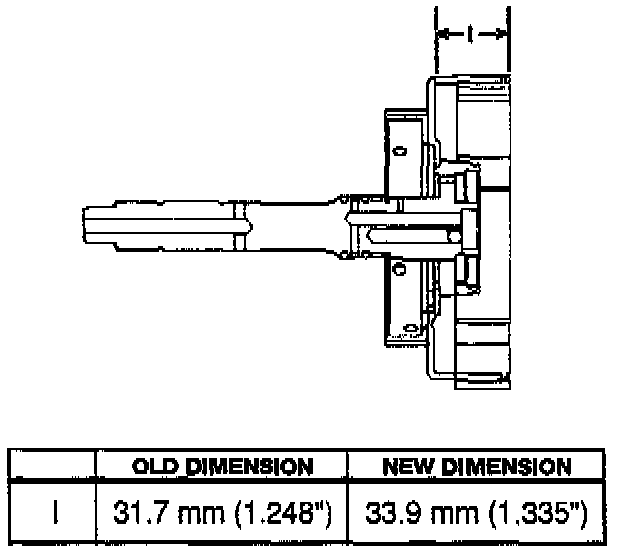

B. Input Shaft Sub-Assembly changed to accommodate thicker C1 clutch plates.

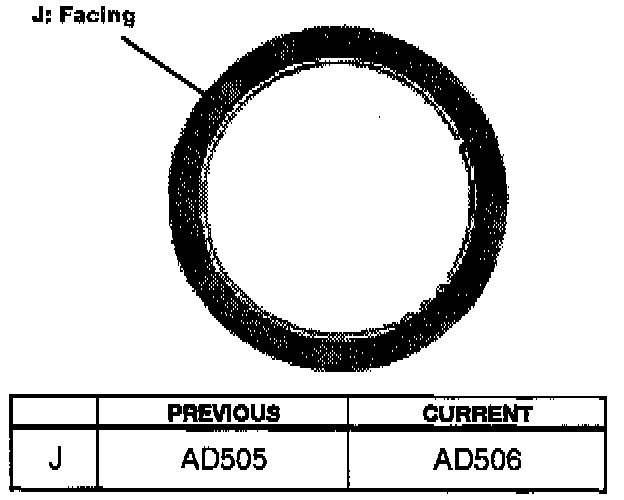

C. C1 Clutch Disc material has been changed. Identifying marks can be found on the facing.
