Control Arm Bushing: Service and Repair

REPLACEMENT

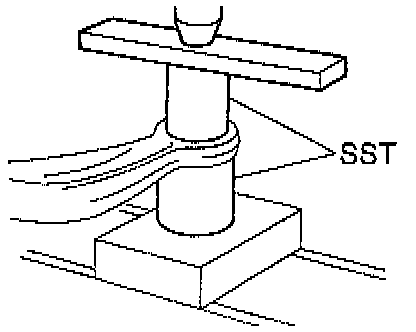

1. Using the 09649-17010, 09710-04081 Special Service Tool (SST) and a press, remove the lower suspension arm bushing.





2. Using the 09238-47012, 09649-17010 SST and a press, install a new lower suspension arm bushing.

NOTE: Install the bushing before, and set it in the direction, as shown in the illustration,

3. Reverse procedure to install.

NOTE: After installation, check the front wheel alignment.
