Removal and Installation

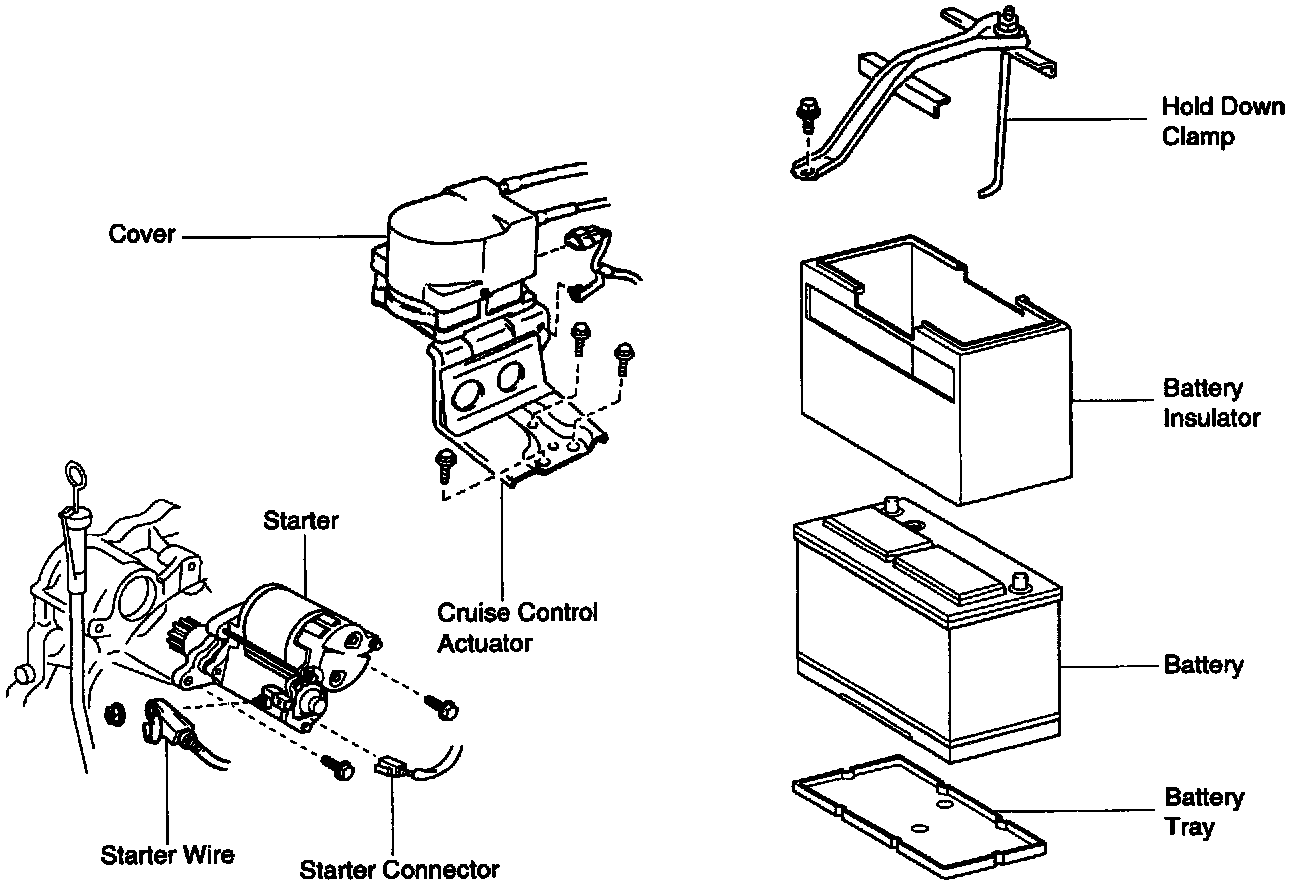

COMPONENTS

REMOVAL
1. REMOVE BATTERY AND TRAY
2. W/ CRUISE CONTROL SYSTEM:
REMOVE CRUISE CONTROL ACTUATOR
a. Disconnect the actuator connector and clamp.
b. Remove the 3 bolts, and disconnect the actuator with the bracket.

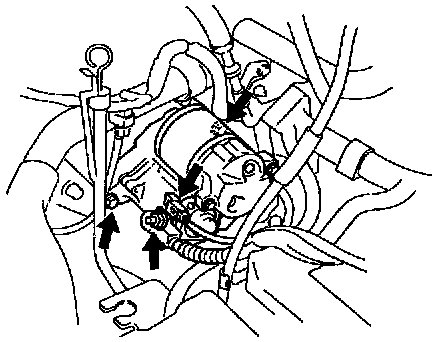

3. REMOVE STARTER
a. Disconnect the starter connector.
b. Remove the nut, and disconnect the starter wire.
c. Remove the 2 bolts and starter.
Torque: 37 Nm (380 kg.cm, 27 ft.lb)

INSTALLATION
Installation is in the reverse order of removal.
