Relay Circuit





4. INSPECT INSTRUMENT PANEL JUNCTION BLOCK




Relay Circuit

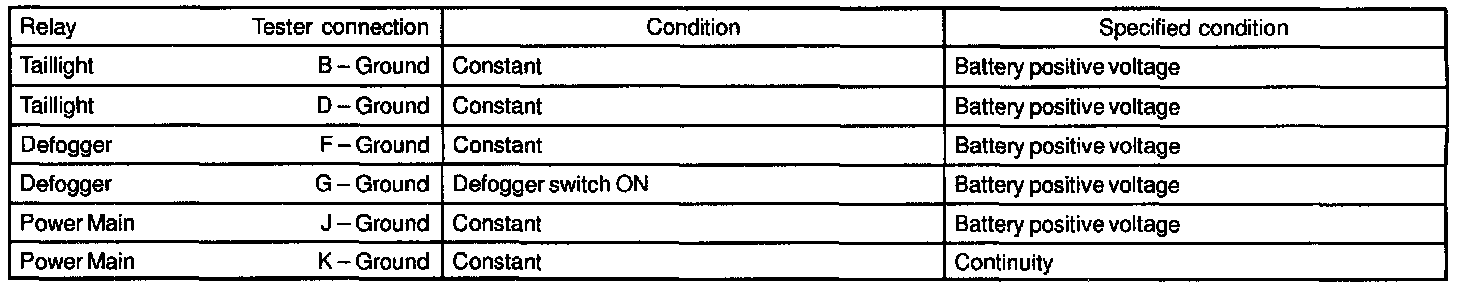

Remove the relay from the junction block and inspect inspect the connector on junction block side, as shown.
