Fuse Circuit





4. INSPECT INSTRUMENT PANEL JUNCTION BLOCK




Fuse Circuit

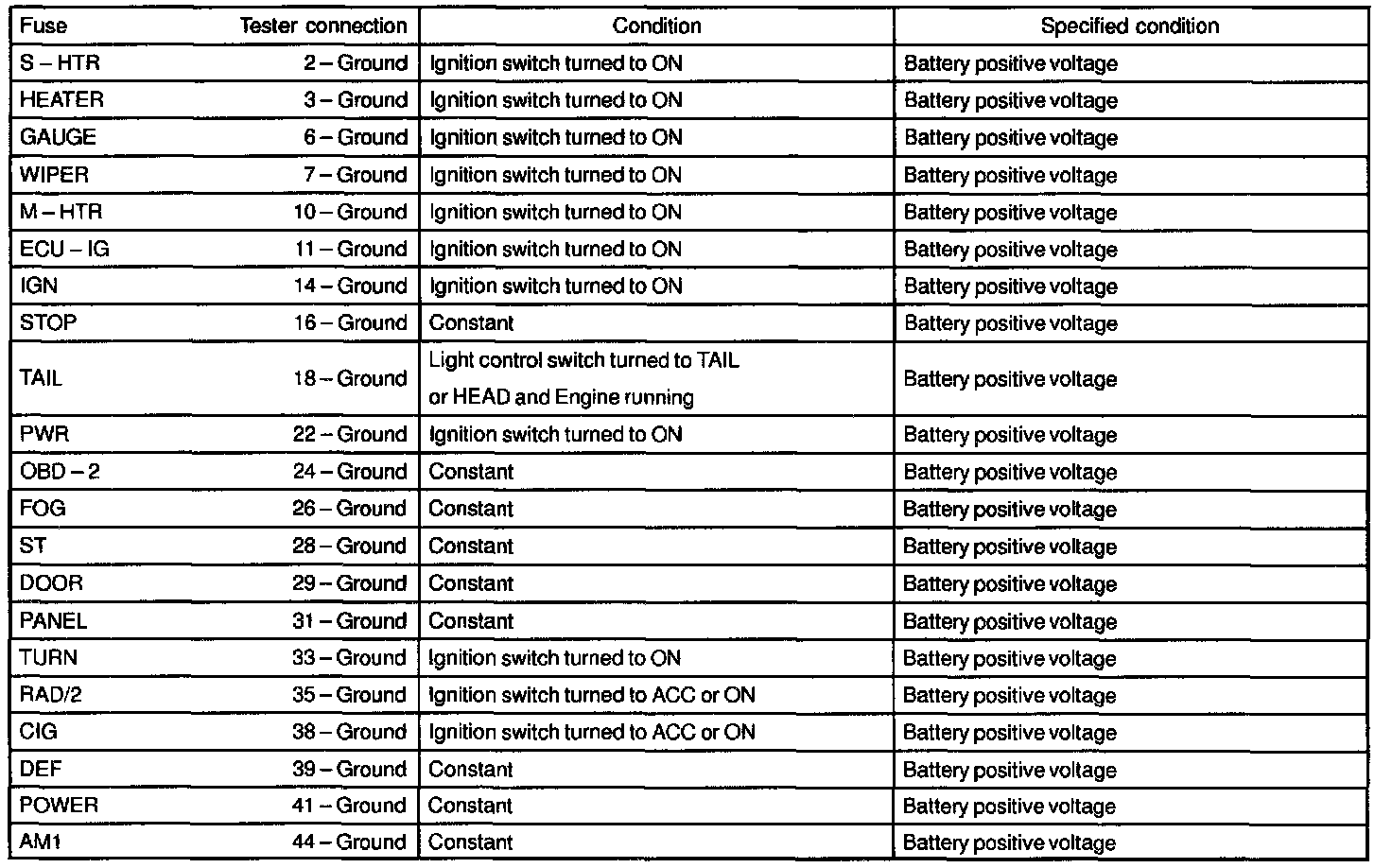

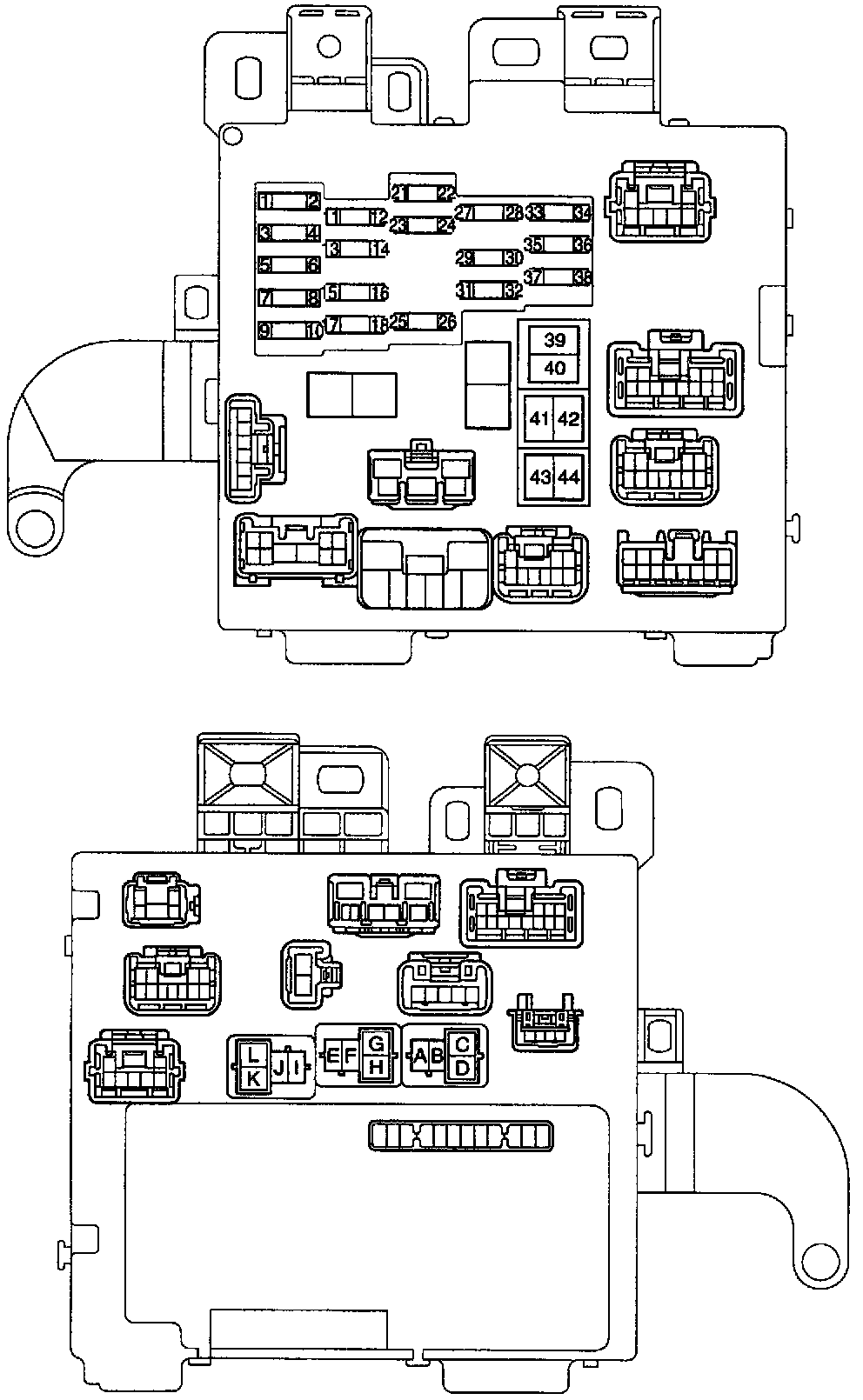

Remove the fuse from the instrument panel junction block and inspect the connector on instrument panel junction block side, as shown.
If the circuit is not as specified, inspect the circuits connected to other parts.
