Inside Engine Room Junction Block

5. INSPECT INSIDE ENGINE ROOM JUNCTION BLOCK




Relay Circuit

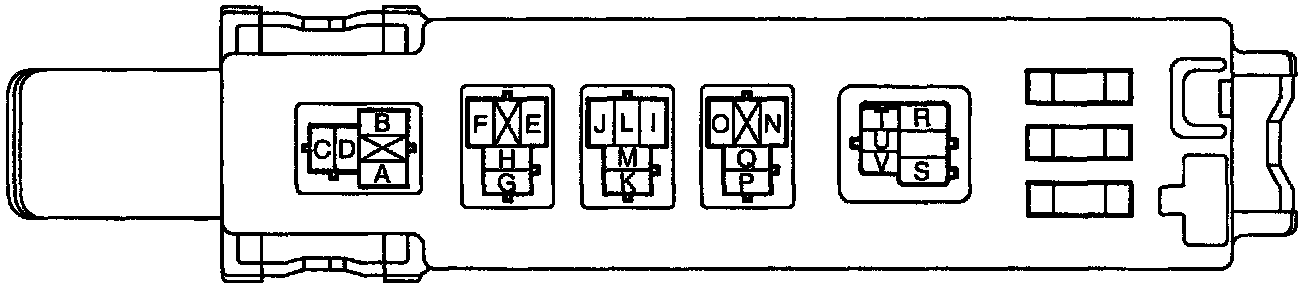

Remove the relay from the relay block and inspect the connector on relay block side, as shown.

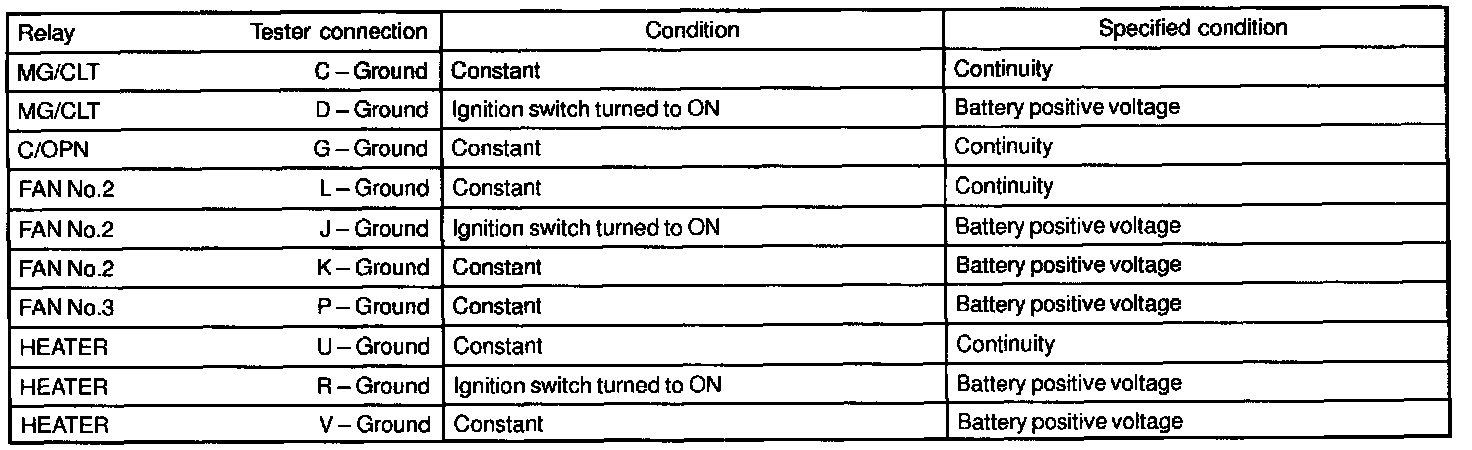

If the circuit is not as specified, inspect the circuits connected to other parts.
