Fuse Block: Locations

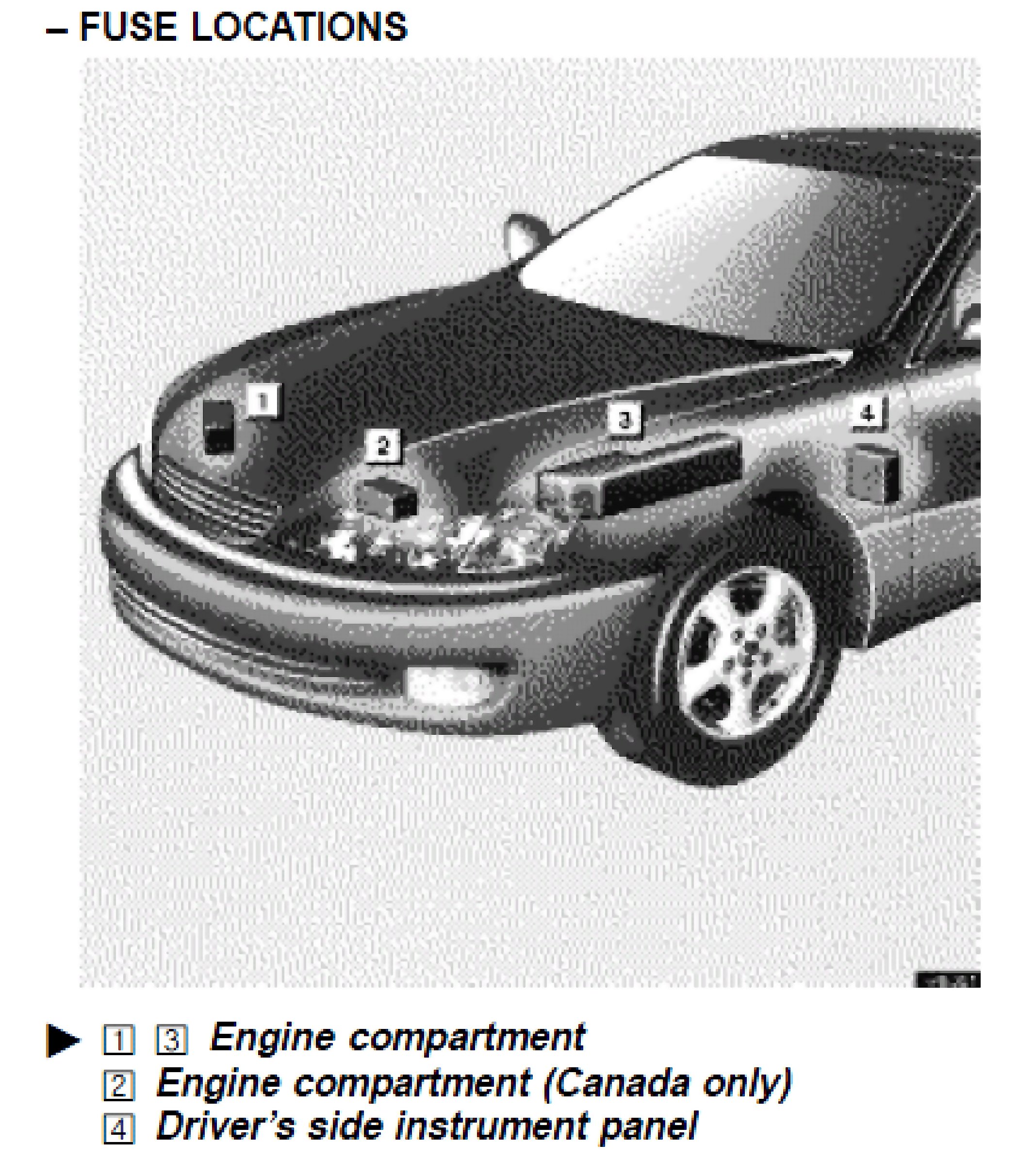

Fuse Block Locations:

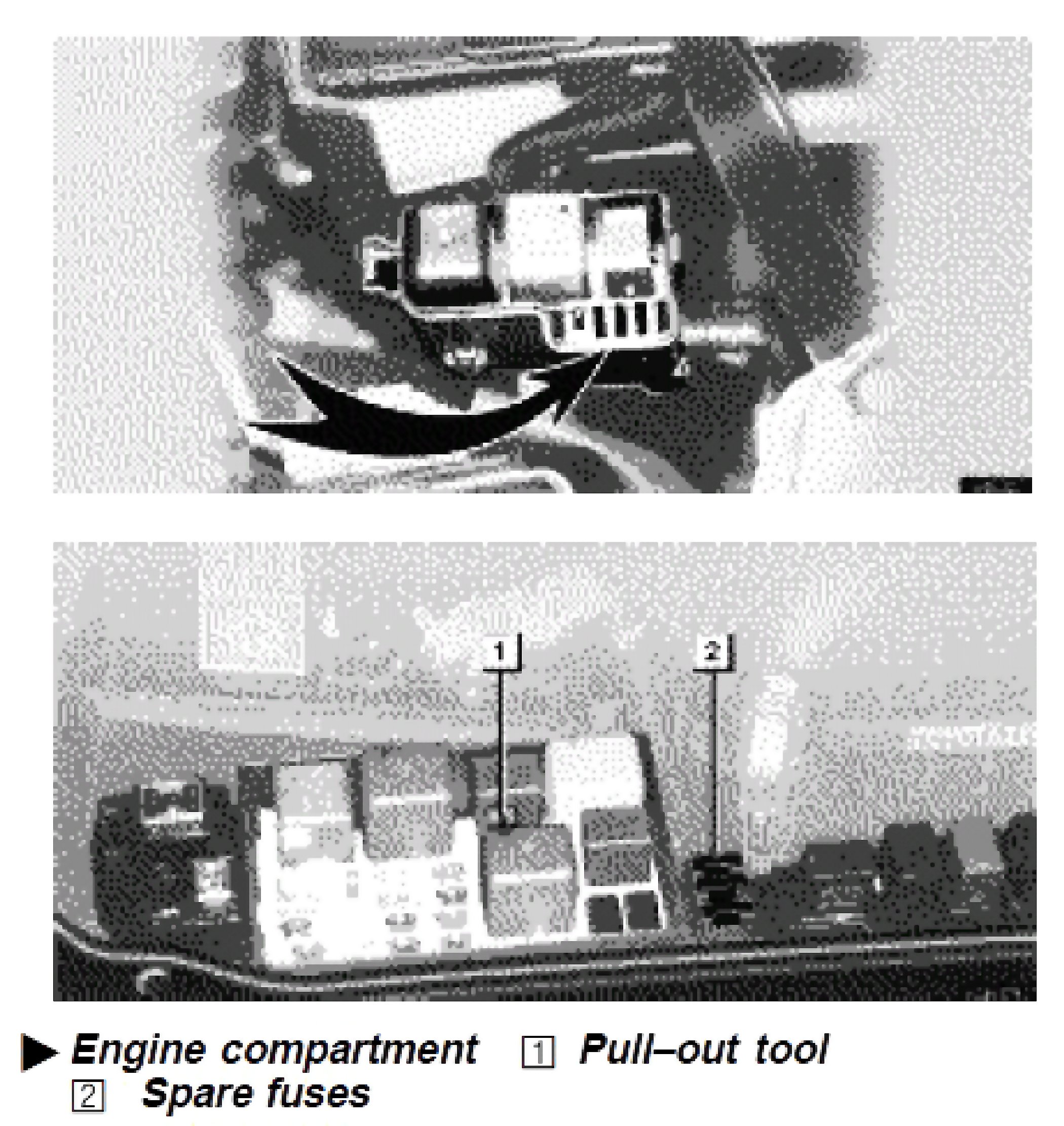

Fuse Locations - Engine Compartment:

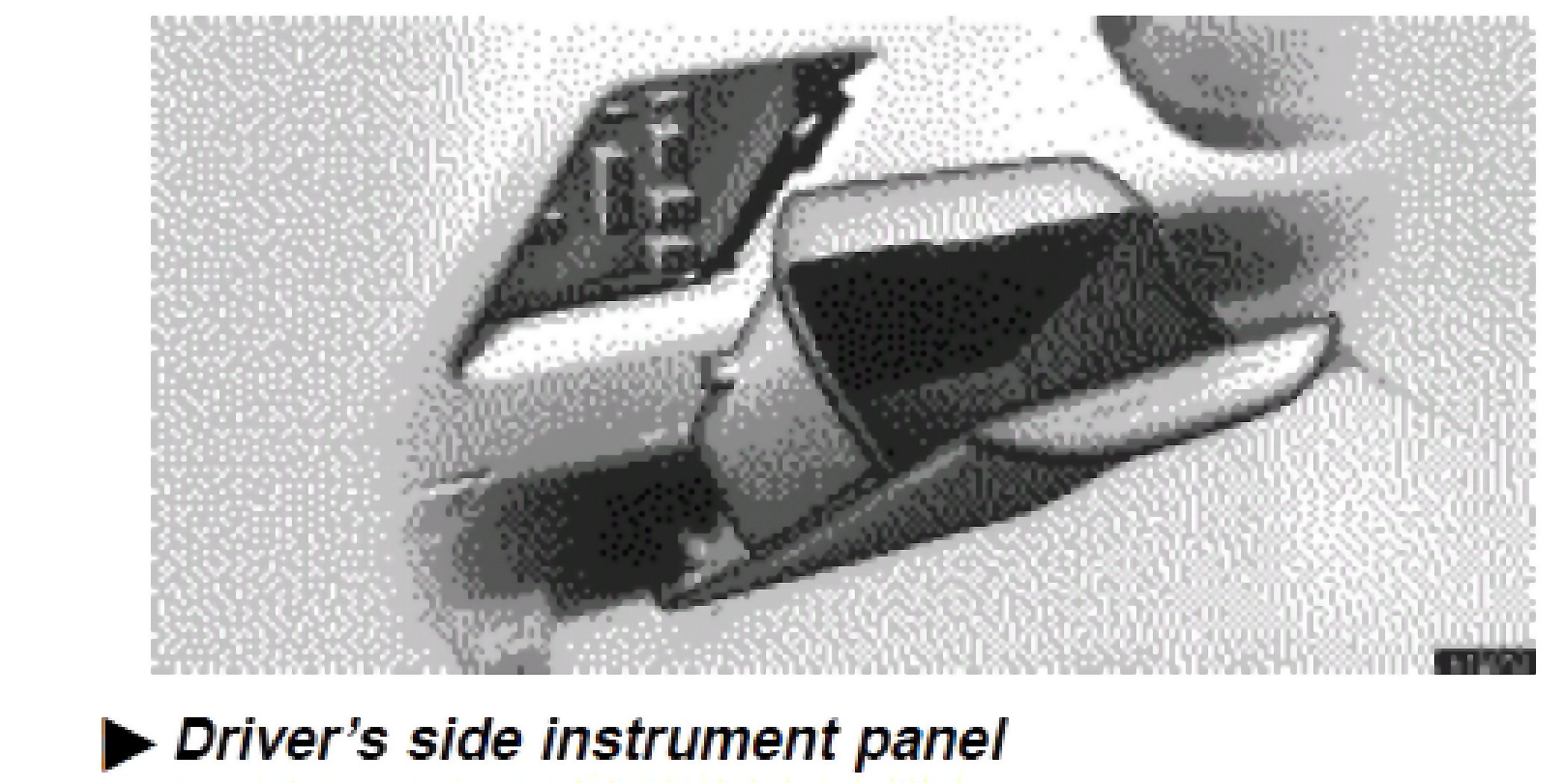

Fuse Block Location - Driver's Side Instrument Panel:

Locations-Engine Room J/B Engine Compartment Left (Fig 20):

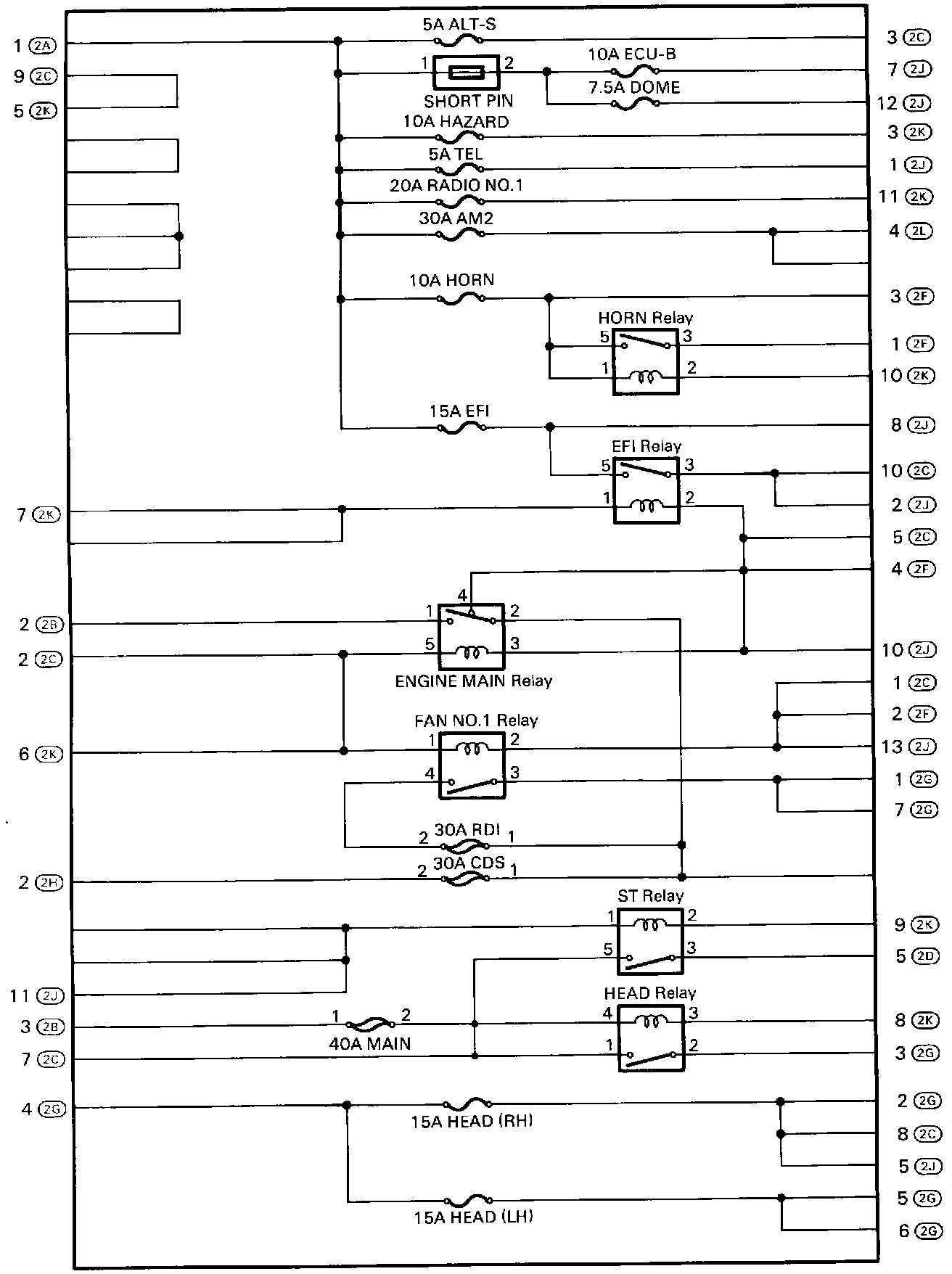

Locations-Engine Room J/B Inner Circuit (Fig 21):

Engine Room R/B Engine Compartment Left (Inside Engine Room J/B) (Fig 22):

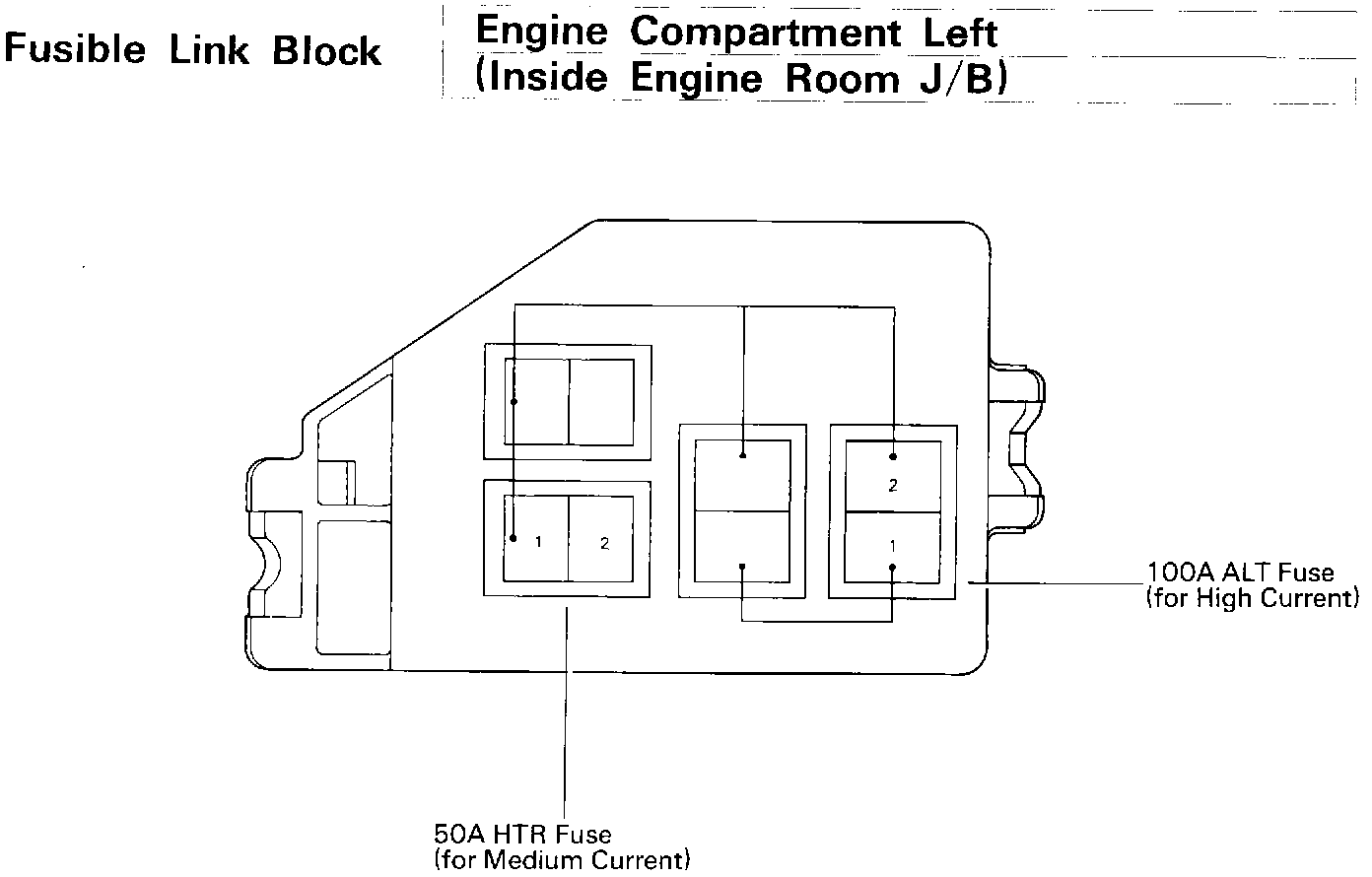

Locations-Fusible Link Block Engine Compartment Left (Inside Engine Room J/B) (Fig 22):

Locations-Engine Room No.2 R/B Engine Compartment Left (Canada) (Fig 23):

Locations-Engine Room No.3 R/B Radiator Upper Support RH (Fig 23):

Location-Instrument Panel J/B Lower Finish Panel (Fig 24):

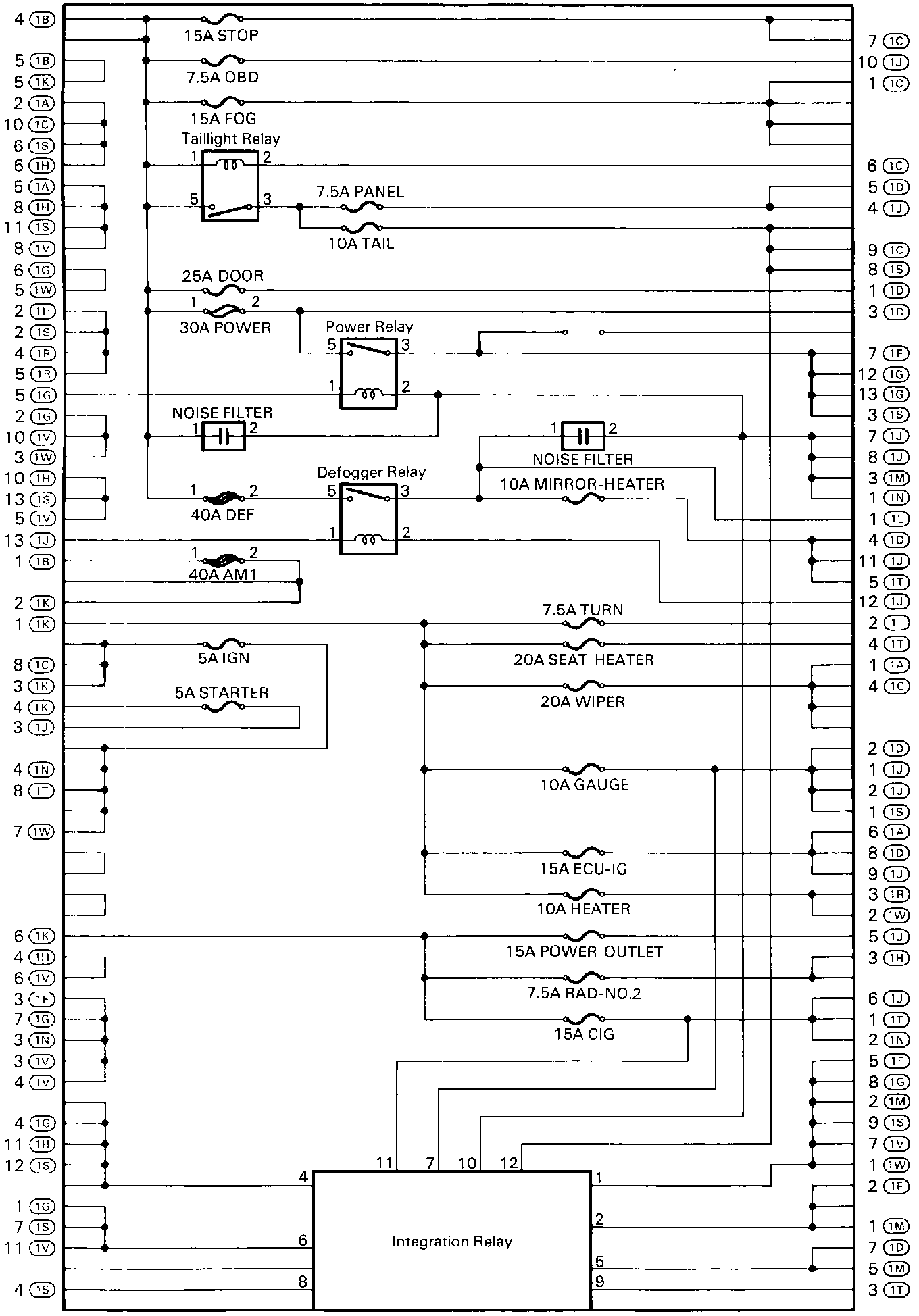

Locations-Instrument Panel J/B Inner Circuit (Fig 25):
