Fuel Gauge Sender: Testing and Inspection
- INSPECT FUEL SENDER GAUGE RESISTANCE

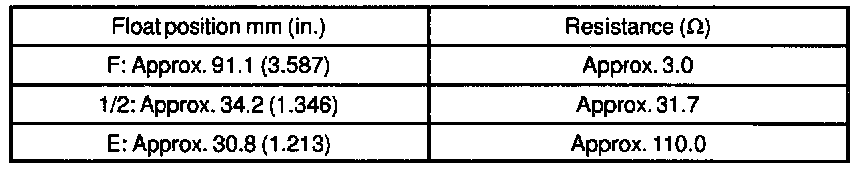

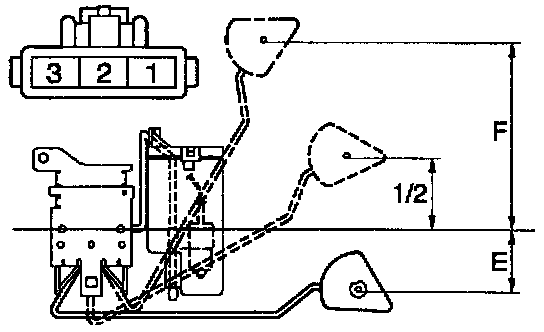

Measure the resistance between terminals 1 and 2 for each float position.
If resistance value is not as specified, replace the sender gauge.
- INSPECT FUEL SENDER GAUGE RESISTANCE
Measure the resistance between terminals 1 and 2 for each float position.
If resistance value is not as specified, replace the sender gauge.
