Electrical Specifications

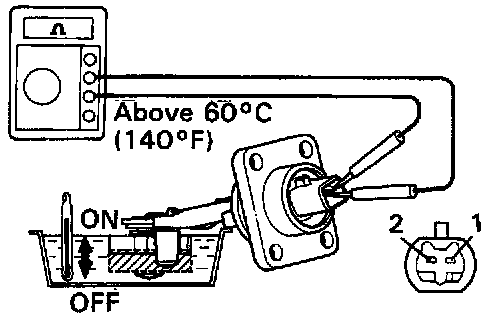

Continuity Checks





Below 40 deg. Continuity in all positions





Above 60 deg. Continuity in "UP" Position, No Continuity in "Down" position
