Power Seat Switch: Testing and Inspection

- INSPECT POWER SEAT SWITCH CIRCUIT
a. Disconnect the switch connector and connect the seat wire harness to the floor wire harness.

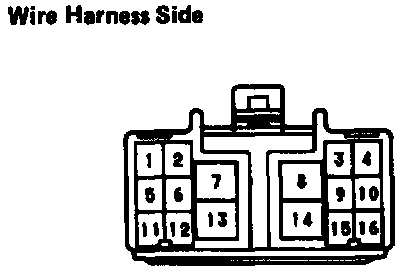

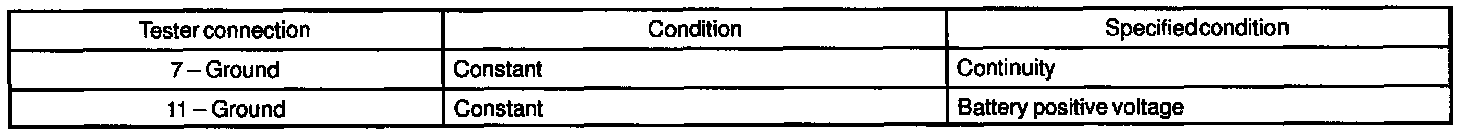

b. Inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other pants.
