Power Window Relay: Testing and Inspection




LOCATION

INSPECTION

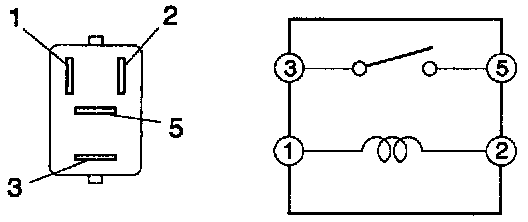

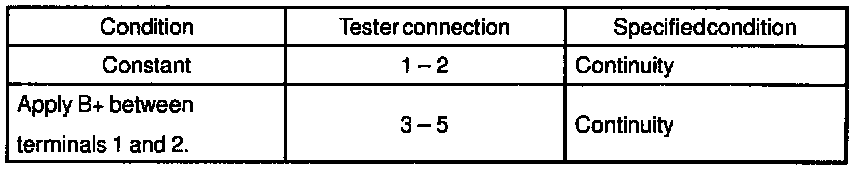

- INSPECT POWER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.
