Heated Glass Element Relay: Testing and Inspection

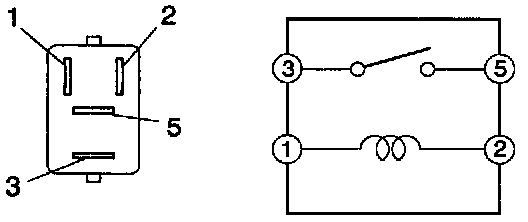

3. INSPECT DEFOGGER RELAY CONTINUITY

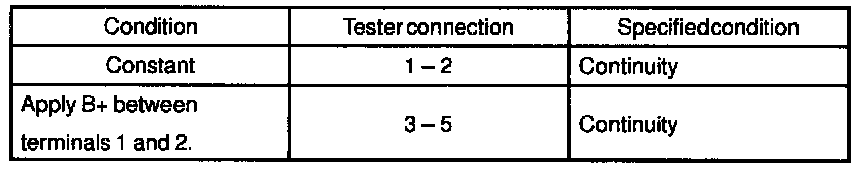

If continuity is not as specified, replace the relay.

4. INSPECT DEFOGGER RELAY CIRCUIT
Junction Block and Wire Harness Connector
