Cooling Fan Relay No.2

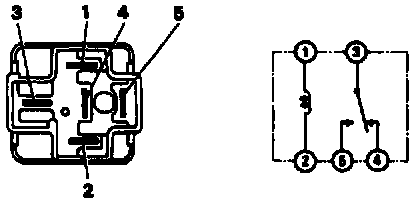

4. INSPECT No.2 COOLING FAN RELAY

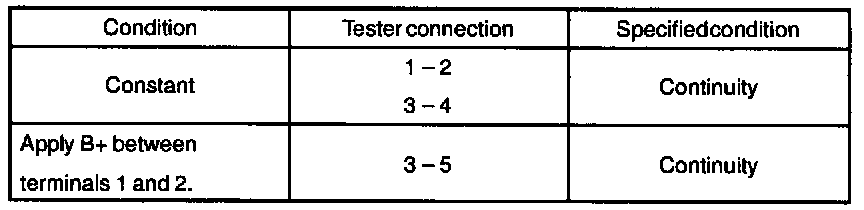

(Marking: FAN RLY NO.2) CONTINUITY
If continuity is not as specified, replace the relay.
