Cooling Fan Relay No.1

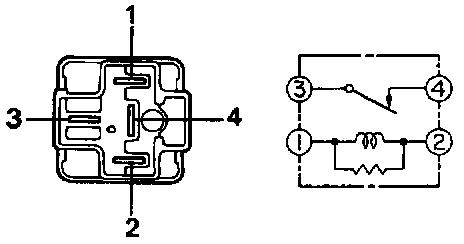

3. INSPECT No.1 COOLING FAN RELAY

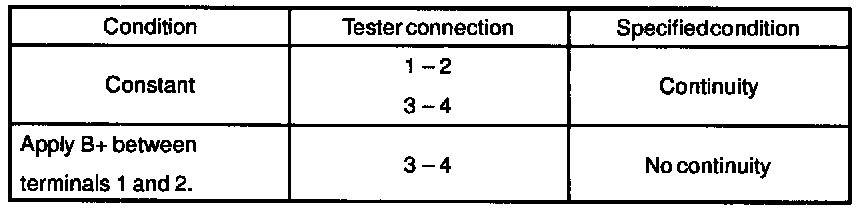

(Marking: FAN RLY NO.1) CONTINUITY
If continuity is not as specified, replace the relay.
