ABS W/ Traction Control (TRAC)
ABS W/ Traction Control (TRAC)

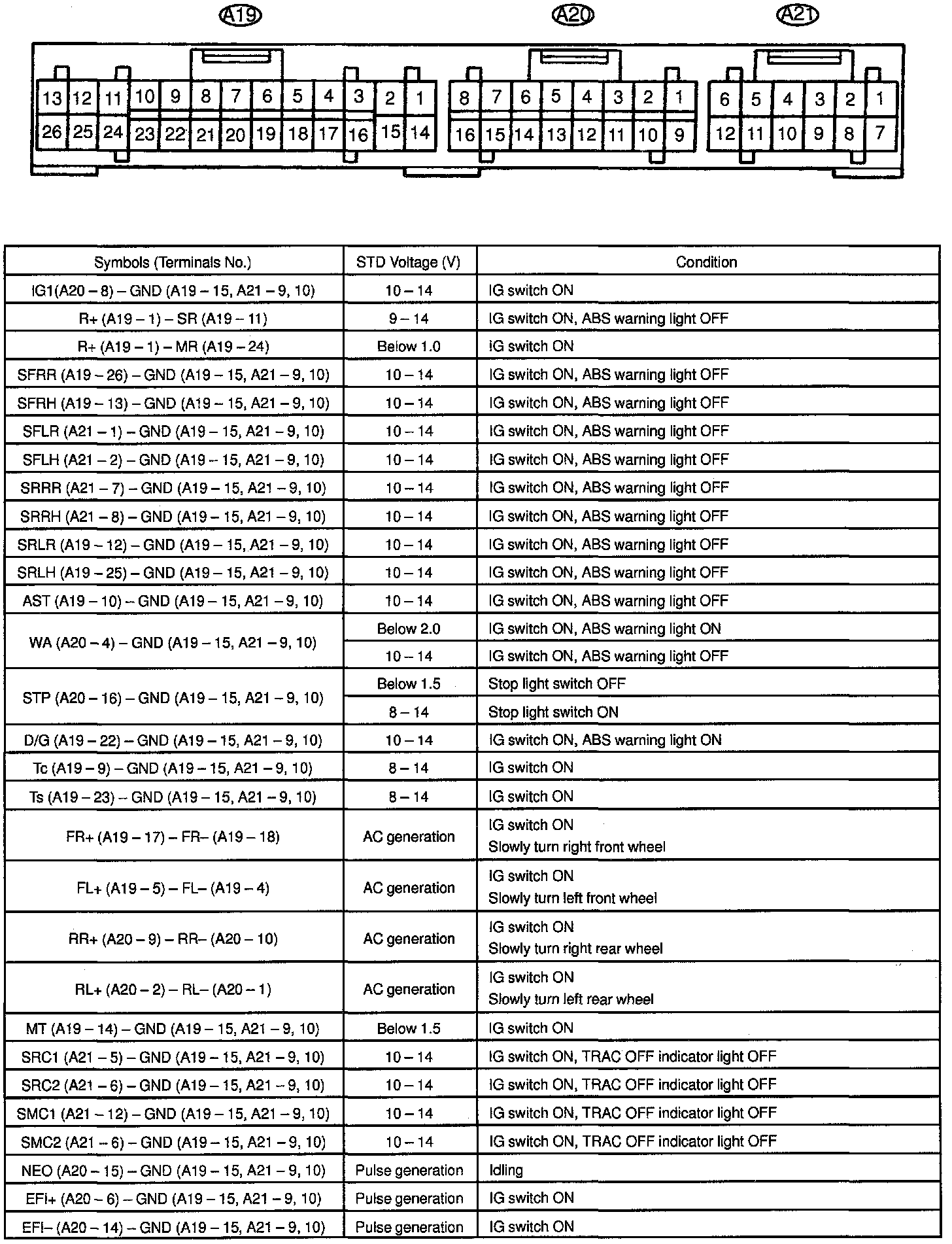

ABS & TRAC Terminals Of ECU Part 1 Of 2:

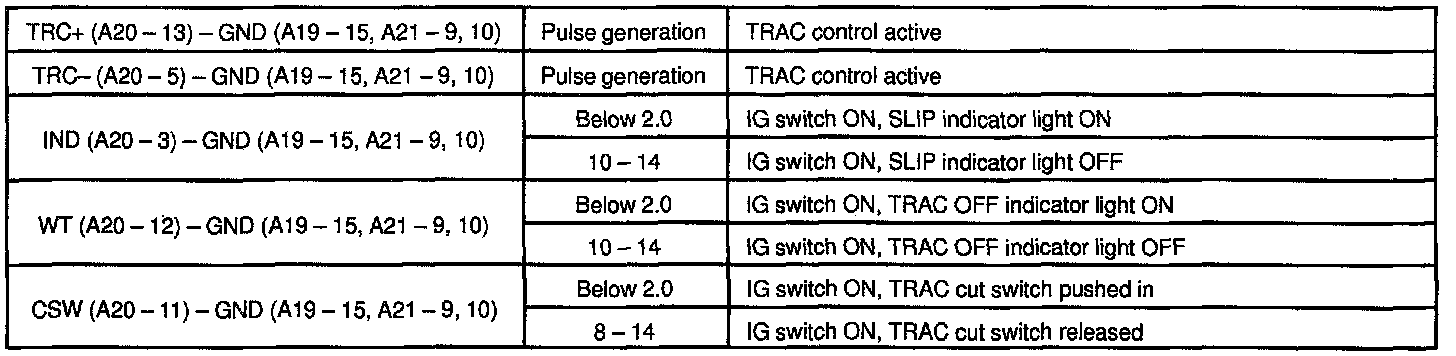

ABS & TRAC Terminals Of ECU Part 2 Of 2:
TERMINALS OF ECU
