Ignition Coil: Service and Repair

IGNITION COILS REMOVAL AND INSTALLATION

REMOVAL
1. Disconnect high-tension cords from ignition coils.





2. Remove ignition coils.
(a) Disconnect the 3 connectors from the ignition coil.

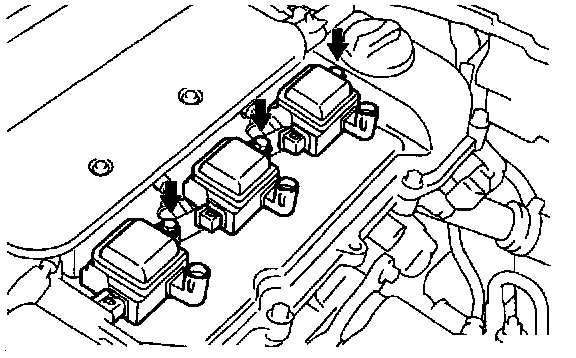

(b) Remove the 3 bolts and 3 ignition coils from the LH cylinder head.

Torque: 8 N.m (80 kgf.cm, 69 in.lbf)

HINT: Arrange the ignition coils in correct order.

INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
